CVA 4062/CVA 4066/CVA 4068 Coffee Systems

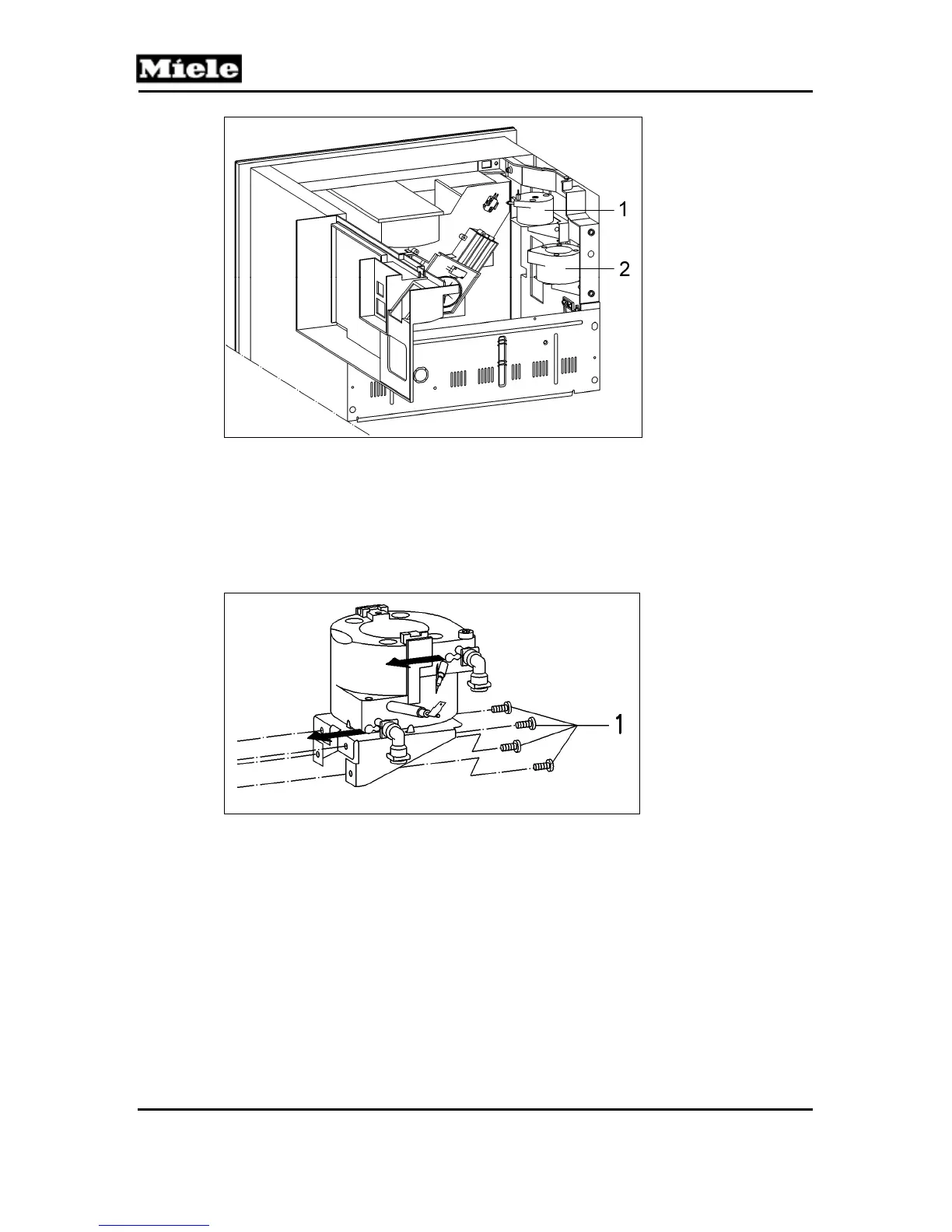

Figure 050-2: Service Door Open, Showing Heaters
7. Remove the 2 bottom rear panel retaining screws (T10).
8. Remove the bottom rear panel.
9. Remove the two spring clips from the coffee/hot-water heater water line
connections (arrows, Figure 050-3).
10. Remove the four heater bracket retaining screws (T10); see Figure 050-3, Item 1.
11. Remove the heater/bracket assembly.
Figure 050-3: Coffee/Hot Water Heater
12. Unscrew the temperature sensor, temperature limiter and fuse from the heater; see
Figure 050-4, Items 1, 2 and 3.
13. Disconnect the heater electrical connection (yellow/green wire; sometimes secured
with a screw).
1 Steam heater
2 Coffee/hot water heater
