CVA 4062/CVA 4066/CVA 4068 Coffee Systems

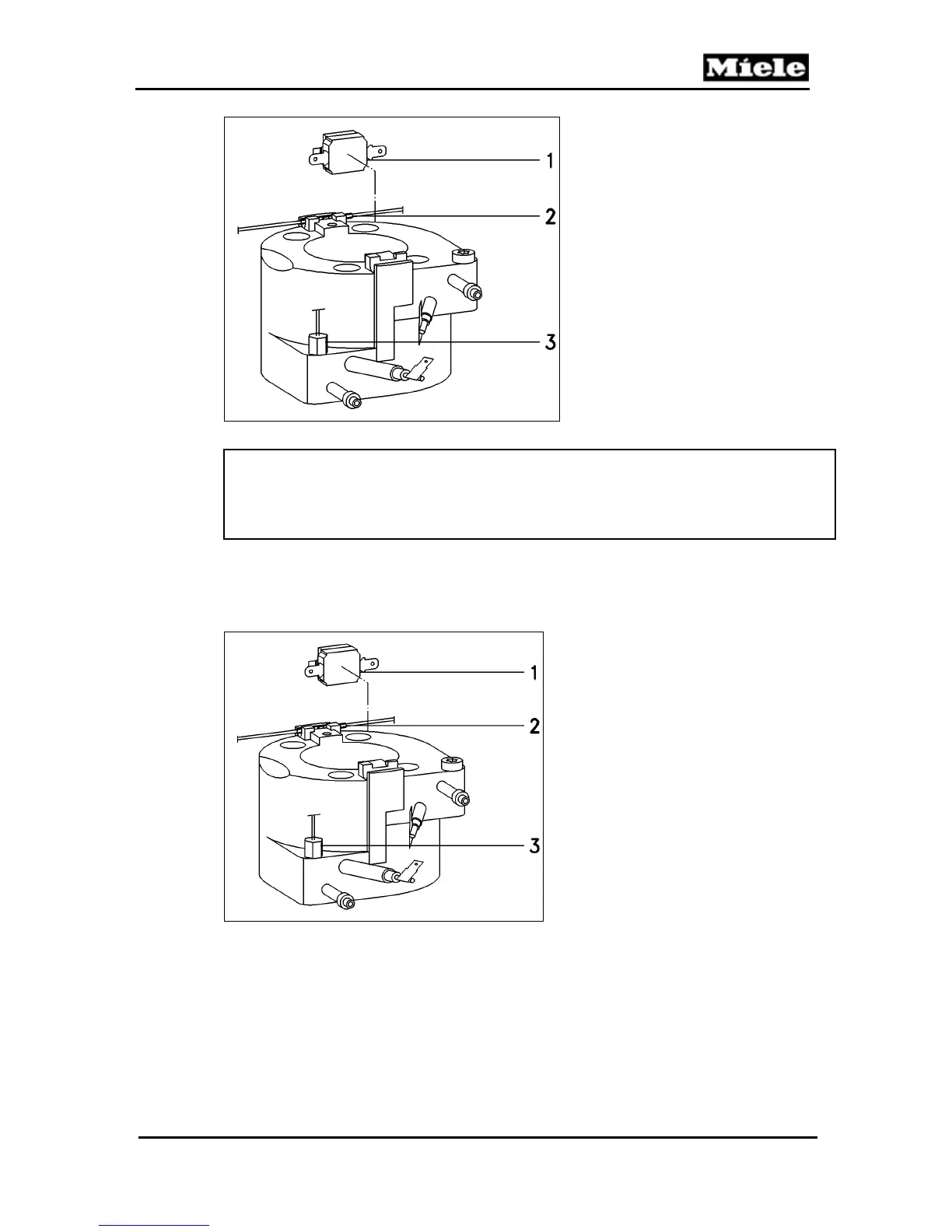

Figure 050-4: Temperature-Regulating Components on Coffee/Hot Water Heater
Warning!
In order to avoid possible water system faults (e.g., clogging or blocking of
valves), grease, oil or other slip lubricants should never be used when
assembling and installing water system parts.
4.2 Removing the Temperature Limiter, Fuse, Temperature Sensor from the
Coffee/Hot-Water Heater
1. Remove the coffee/hot water heater; see Section 050-4.1.
Figure 050-5: Temperature-Regulating Components on Coffee/Hot Water Heater
2. To remove the temperature limiter, unscrew its mounting bracket from the heater.
Disconnect the electrical connections and unsnap the temperature limiter from the
mounting bracket.
3. To remove the fuse, unscrew its mounting bracket from the heater. Disconnect the
electrical connections. Remove the T20 screw securing the mounting bracket and
separate the bracket from the fuse.
4. To remove the temperature sensor, unscrew it from the heater and disconnect its
wiring harness.
1 Temperature limiter
2 Fuse
3 Temperature sensor
1 Temperature limiter
2 Fuse
3 Temperature sensor
