Technical Information
51
CVA 4062/CVA 4066/CVA 4068 Coffee Systems
2 Function
2.1 Steam System
The appliance has two heating systems. This allows for independent preparation of
froth/cappuccino or espresso/coffee. The second heating system can be turned off to
save energy during the heating phase, e.g., if froth is not prepared very often. When
the steam system is turned off and froth or cappuccino is selected, the appliance must
heat up first to produce steam. The steam system is turned on by default.
4 Service
4.1 Removing the Coffee/Hot Water Heater (2R1)
1. Remove the appliance from its cabinet. See Section 010-4.1.
2. Carefully remove the top cover retaining screws. The larger (T20) screws have
metal washers underneath that can easily be misplaced.
3. Remove the top cover.
4. Remove the three service door retaining screws; see Figure 050-1, Item 1.

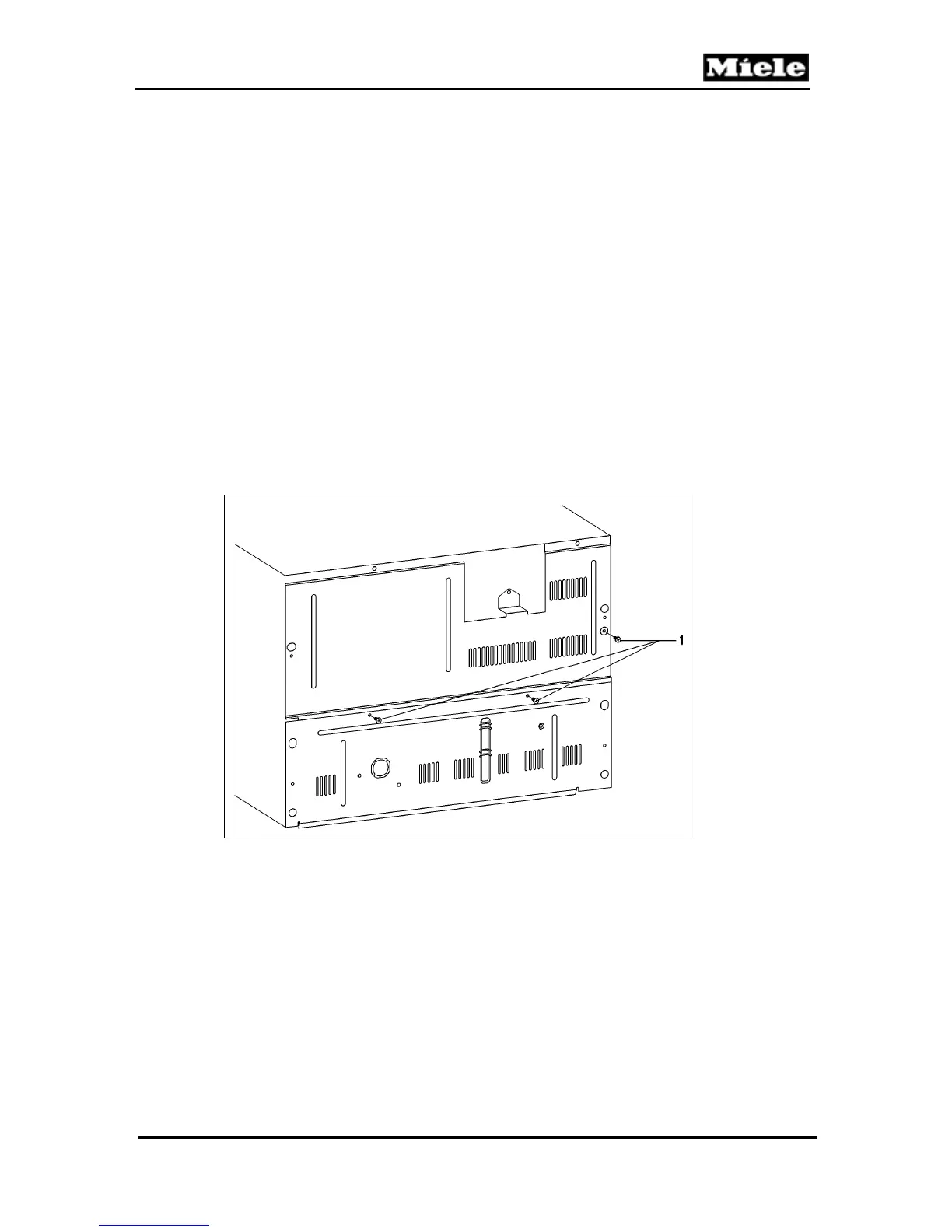

Figure 050-1: Service Door Screws
5. Release the wiring harness (black cable) connecting the control and power
electronics from its guide.
6. Open the service door. See Figure 050-2.
