CVA 4062/CVA 4066/CVA 4068 Coffee Systems
4.3 Coffee/Hot Water Pump (2M7) Removal
1. Remove the appliance from its cabinet. See Section 010-4.1.
2. Carefully remove the top cover retaining screws. The larger (T20) screws have
metal washers underneath that can easily be misplaced.
3. Remove the top cover.
4. Remove the three service door retaining screws; see Figure 051-12, Item 1.

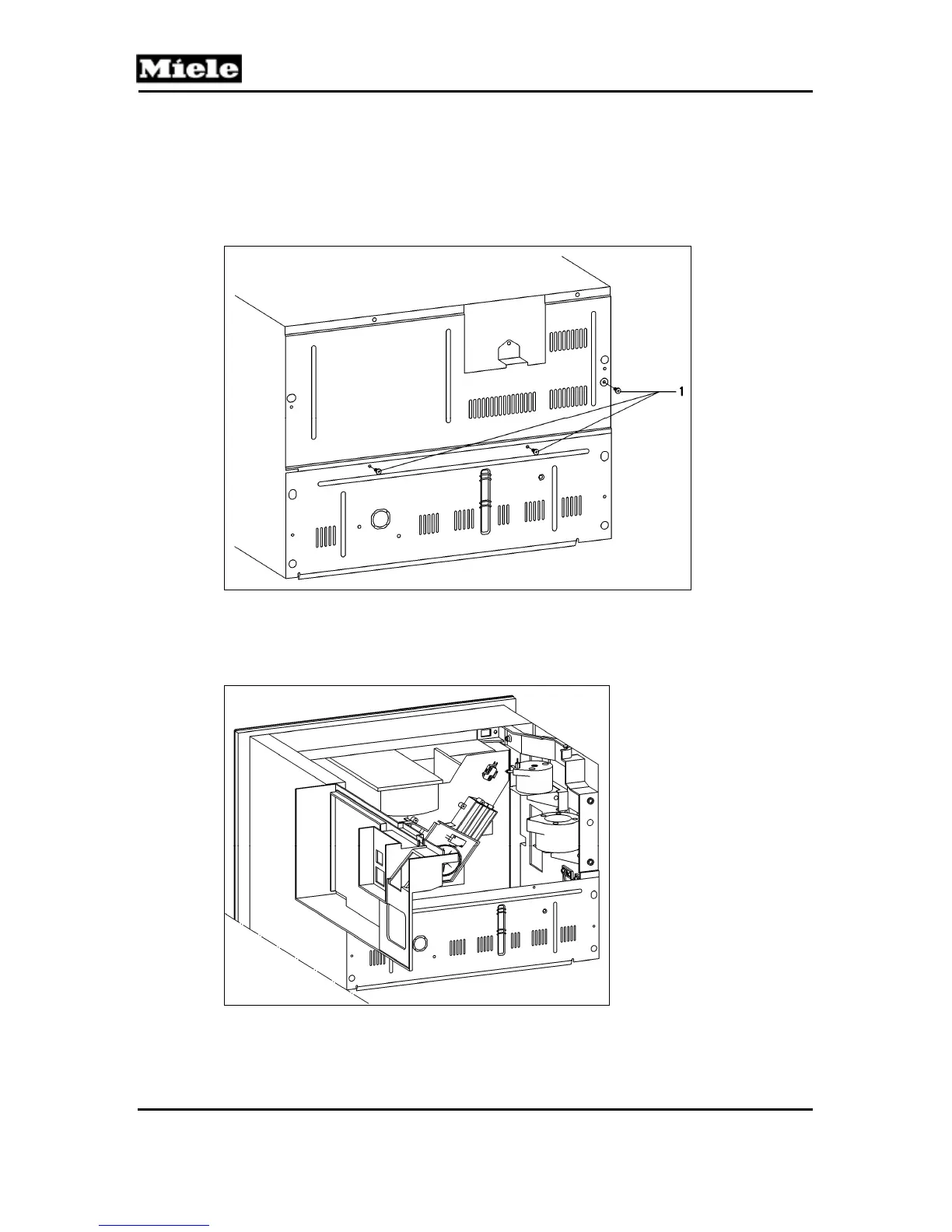

Figure 051-12: Service Door Screws
5. Release the wiring harness (black cable) connecting the control and power
electronics from its guide.
6. Open the service door. See Figure 051-13.
Figure 051-13: Service Door Open
7. Remove the two bottom rear panel retaining screws.
8. Remove the bottom rear panel.
To Next Page
