Technical Information
22
CVA 4062/CVA 4066/CV
A 4068 Coffee Sy
stems
4.2.2

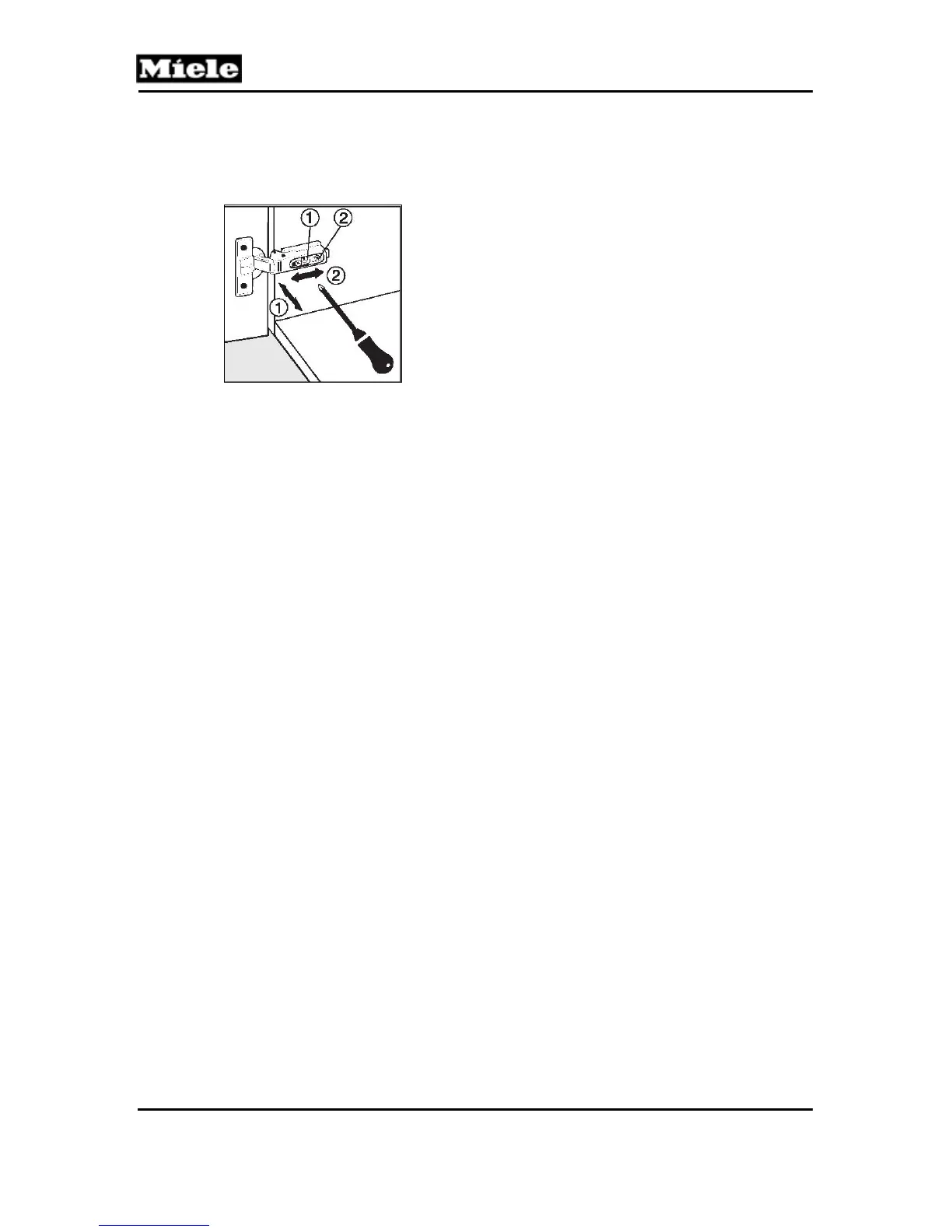

Adjusting the Door Hinges
The door hinges can be adjusted if the door cannot be opened easily. T
o adjust the
door sideways, turn the screw as shown in Figure 010-5, Item 1. To adjust the door
forwards or backwards, turn the screw as shown in Figure 010-5, Item 2.
Figure 010-5:
Door Hinge
Adjustment
