Technical Information
63
CVA 4062/CVA 4066/CVA 4068 Coffee Systems

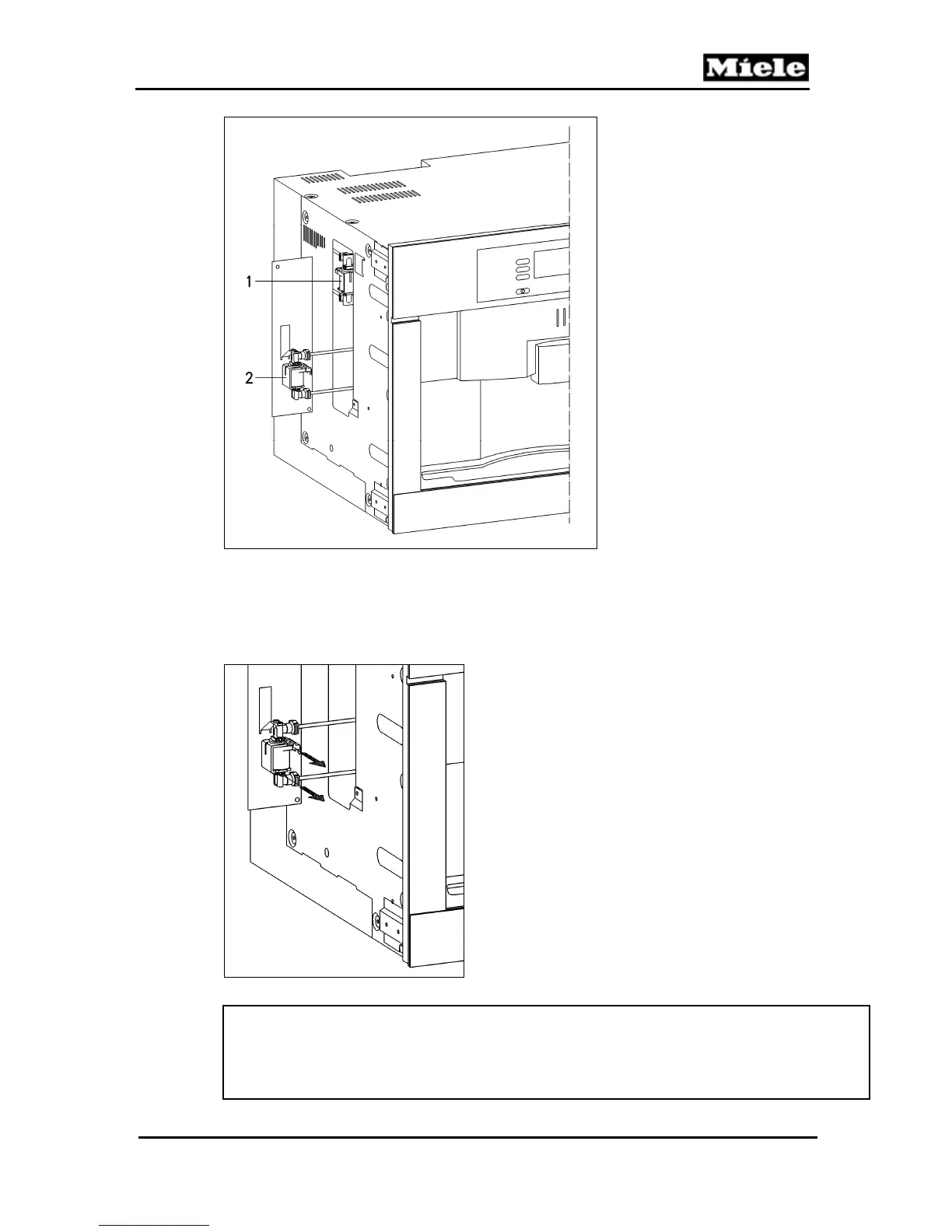

Figure 051-7: Rinsing and Hot-Water Solenoids
4. Remove the two spring clips from the hot-water solenoid water
connections; see arrows, Figure 051-8.
5. Remove the solenoid.
6. Disconnect all solenoid electrical connections.
Figure 051-8: Hot-Water Solenoid
Warning!
In order to avoid possible water system faults (e.g., clogging or blocking of valves),
grease, oil or other slip lubricants should never be used when assembling and
installing water system parts.
1 Rinsing solenoid
2 Hot-water solenoid
