Defibrillator/Monitor Operator’s Manual 19 - 3
19.5 Setting the Recorder
19.5.1 Selecting Waveforms for Recording
1. Press the Main Menu button on the front panel and select [Others >>] → [Record Setup >>].
2. Select [Wave 1], [Wave 2] or [Wave 3], and then respectively set the desired waveforms. Selecting [Off] can
switch off a waveform.
The selected waveforms and all numerics at the frozen time will be printed out by the recorder.
19.5.2 Setting the Realtime Recording Length
1. Press the Main Menu button on the front panel and select [Others >>] → [Record Setup >>].
2. Select [Wave Length] and toggle between [8 s], [16 s], [32 s] and [STAT].
â—† [8 s]: record a waveform 4 seconds before and 4 seconds after the current moment.
â—† [16 s]: record a waveform 8 seconds before and 8 seconds after the current moment.
â—† [32 s]: record a waveform 16 seconds before and 16 seconds after the current moment.
â—† [STAT]: record a waveform from the current moment until stopped manually.
19.5.3 Changing the Recording Speed
1. Press the Main Menu button on the front panel and select [Others >>] → [Record Setup >>].
2. Set [Paper Speed].
This setting is for all recordings containing waveforms.
19.5.4 Switching Gridlines On or Off
1. Press the Main Menu button on the front panel and select [Others >>] → [Record Setup >>].
2. Select [Gridlines] and toggle between [On] and [Off].
â—† [On]: show gridlines when recording waveforms.
â—† [Off]: hide gridlines when recording waveforms.
This setting is for all recordings containing waveforms.
19.6 Loading Paper
1. Use the latch at the upper right of the recorder door to pull the door open.

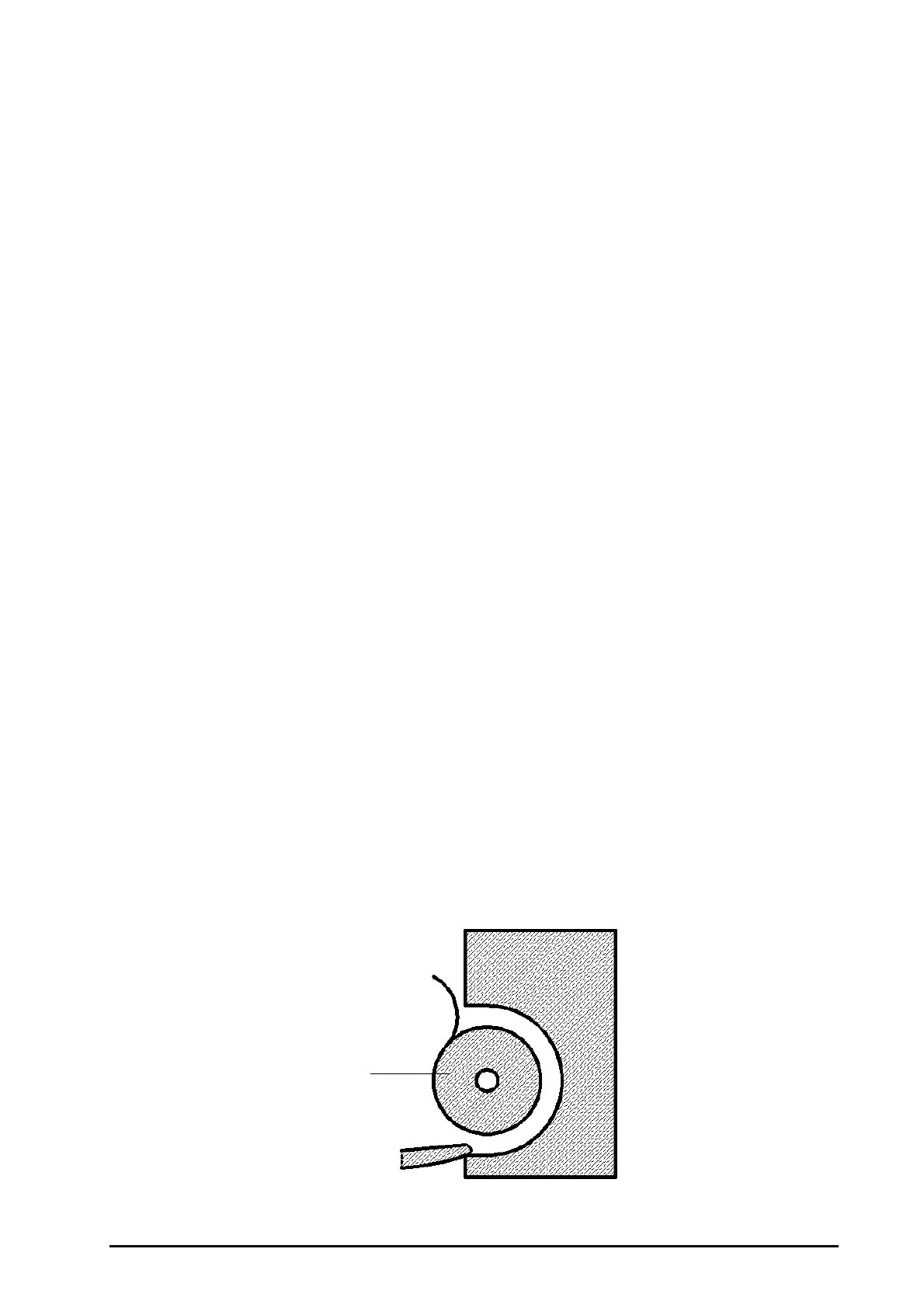

2. Insert a new paper roll into the compartment as shown below.
3. Close the recorder door.
4. Check if paper is loaded correctly and the paper end is feeding from the top.
