2.5 External Paddles
(1) Hook
(2) Battery
(3) Equipotential grounding terminal
When the defibrillator/monitor and other devices are to be used together, their
equipotential grounding terminals should be connected together to eliminate the
potential difference between them.
(4) External power input
It connects an AC power cord or a DC/AC adapter to run the equipment respectively on
the external AC mains or DC power supply.
(5) Network connector
It is a standard RJ45 connector.
(6) USB connector
(7) Multifunctional connector
It connects a CPR sensor, provides ECG output and defib synchronization input.

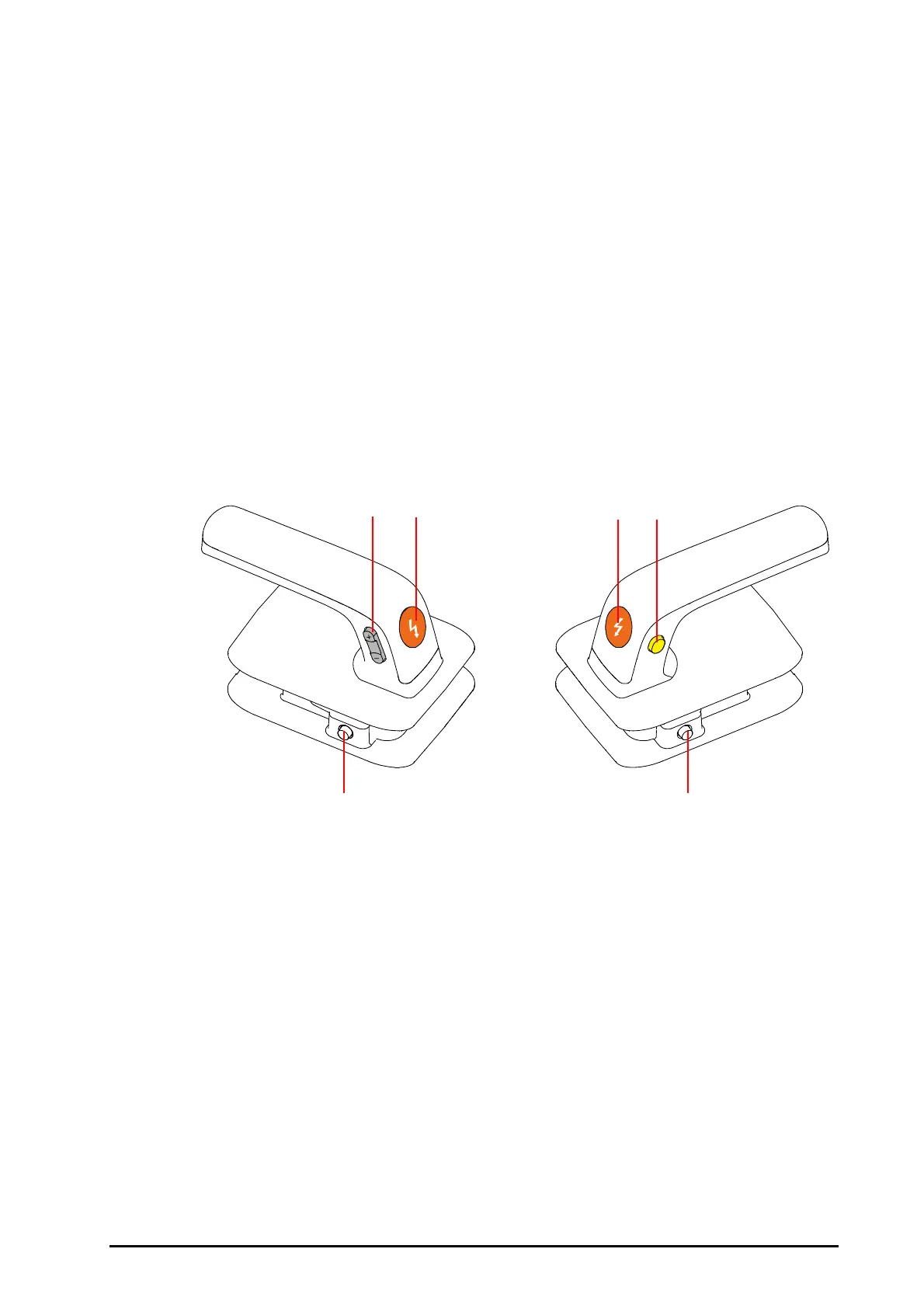

Sternum paddle Apex paddle
(1) Energy Select button
(2) Shock button
(3) Charge button
(4) Latch button
Press this button to get for pediatric paddles. For details, refer to 7.4.1Using Pediatric
Paddles.
