Defibrillator/Monitor Operator’s Manual 7 - 5
7.4.1 Using Pediatric Paddles
The external paddles provide both adult paddle electrodes and pediatric paddle electrodes included inside.

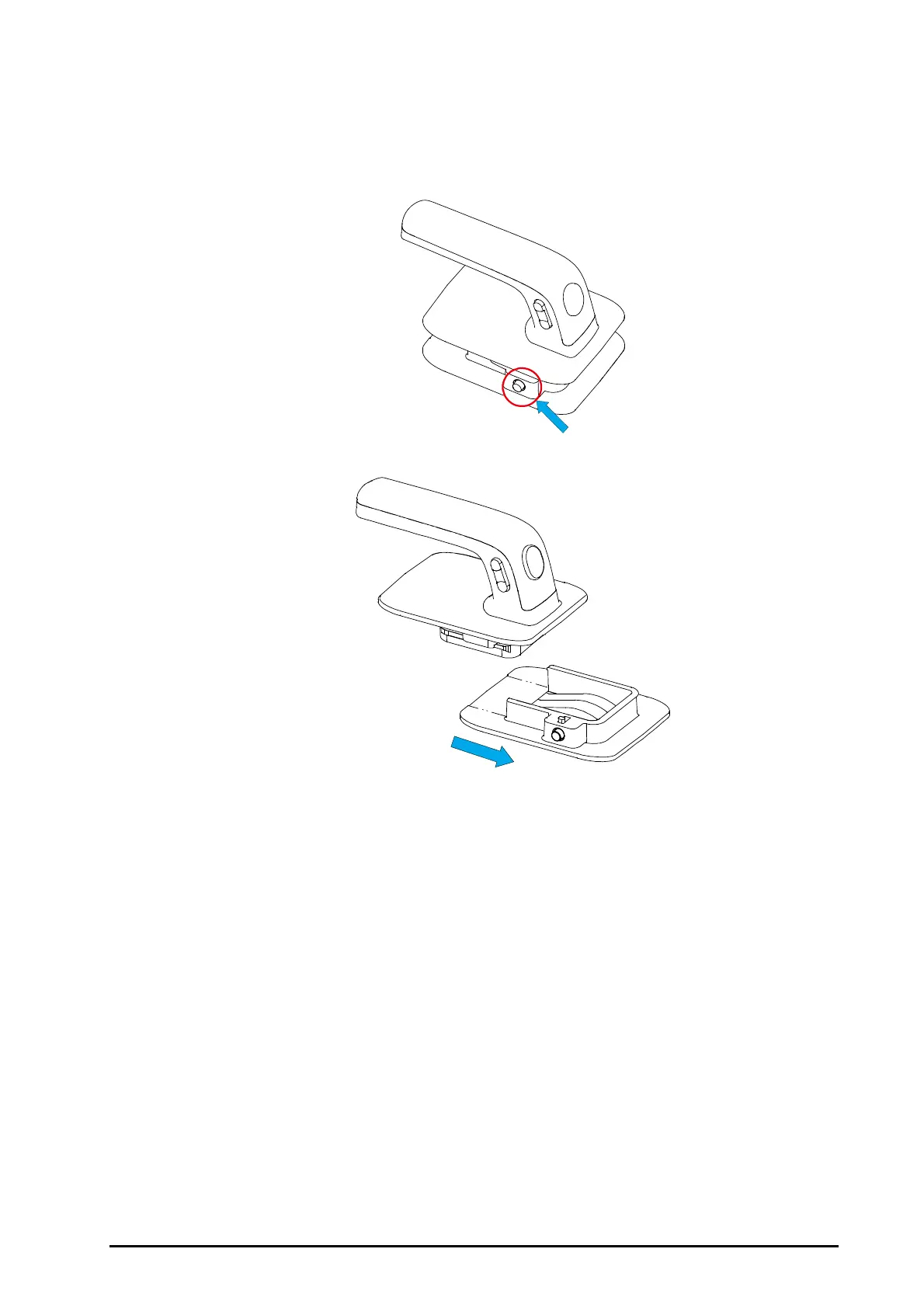

To use the pediatric paddles:
1. Press the latch buttons on the external paddles.
2. Pull forward the adult paddle electrodes to remove them.
For details on the defibrillation procedures, refer to 7.4Manual Defibrillation Procedure.
7.4.2 Using Internal Paddles
To defibrillate using internal paddles:
1. Switch the Mode Select knob to Manual Defib.
2. Select the appropriate paddle size.
3. Connect the internal paddles to the defibrillator by aligning the white pointer on the paddles cable with
the arrow on the therapy port. Push until you hear its click into place.
4. Select energy by pressing the Energy Select button on the front panel.
