IBP Monitoring
15-2
15.1 Overview
The monitor provides two channels to measure the invasive blood pressure (IBP,
including diastolic, systolic and mean pressures), and displays two waveforms.

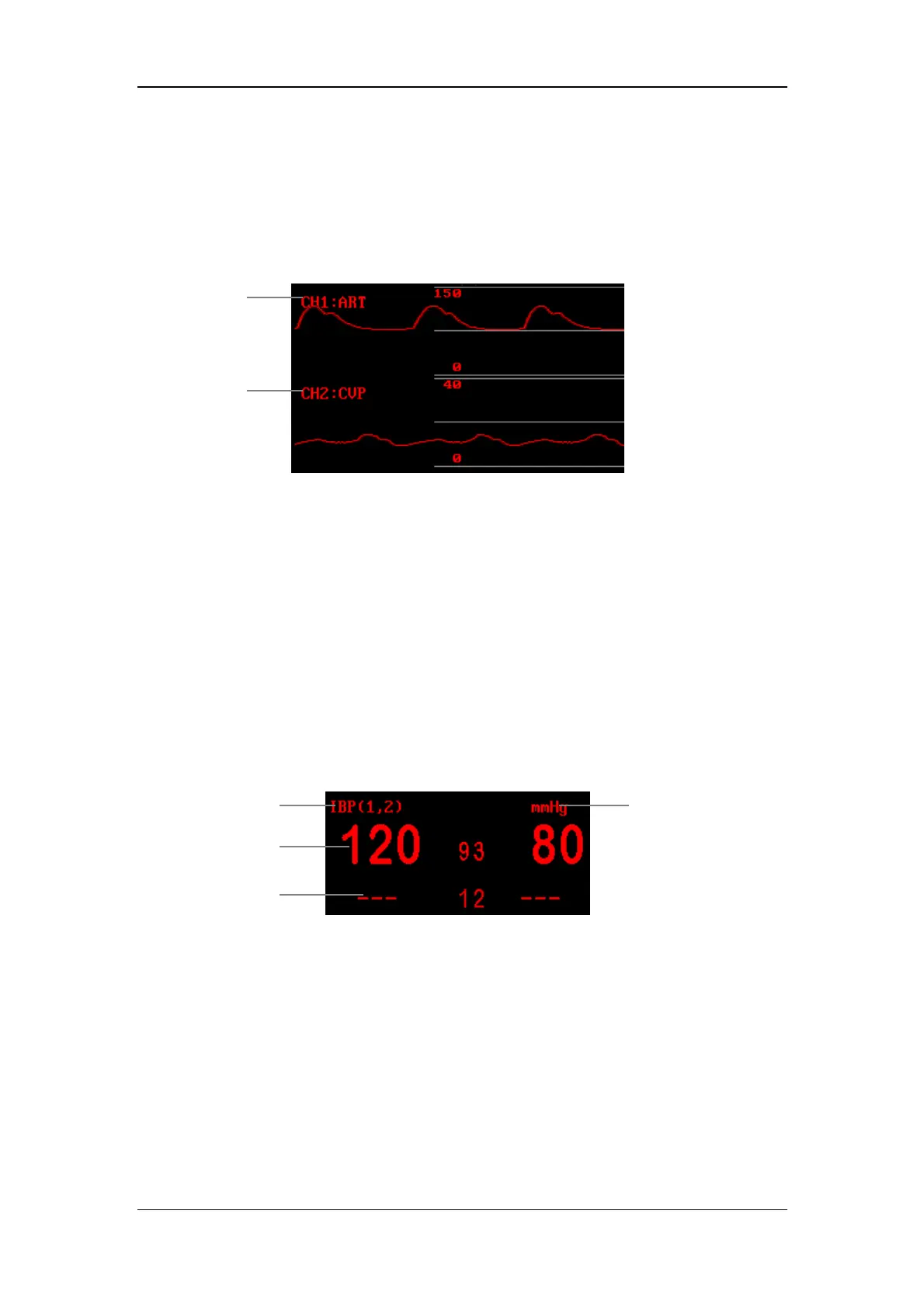

Figure 15-1 IBP Waveform
1. CH1 label: select the waveform of channel 1 to be displayed.
2. CH2 label: select the waveform of channel 2 to be displayed.
Options for CH1 and CH2: ART (Arterial Blood Pressure), PA (Pulmonary Arterial
Pressure), CVP (Center Venous Pressure), RAP (Right Atrial Pressure), LAP (Left
Atrial Pressure), ICP (Intracranial Pressure) and P1-P2 (Expand Pressure).
Besides, each waveform is followed by three scale lines, among which the upper and
the lower ones are marked by scales on the left.
The parameter window locates to the right of the IBP waveforms as shown below.
Figure 15-2 IBP Parameter Window
1. IBP (1,2) label: This label allows you to access the IBP (1,2) SELECT menu.
2. Pressure unit: mmHg or kPa.
3. Parameter values of channel 1: Systolic pressure, mean pressure and diastolic
pressure (from the left to the right).
4. Parameter values of channel 2: Systolic pressure, mean pressure and diastolic
pressure (from the left to the right). When ART or ICP is selected for CH1 and
CH2 respectively, the ICP and CPP values will be displayed, where CPP is
equal to the mean pressure of ART minus ICP.
1
3
4
2
1
2
