The Basics
2-6
2.2.2 Side Panel
On the left side of the monitor, you can find the following connectors and the battery
compartment.

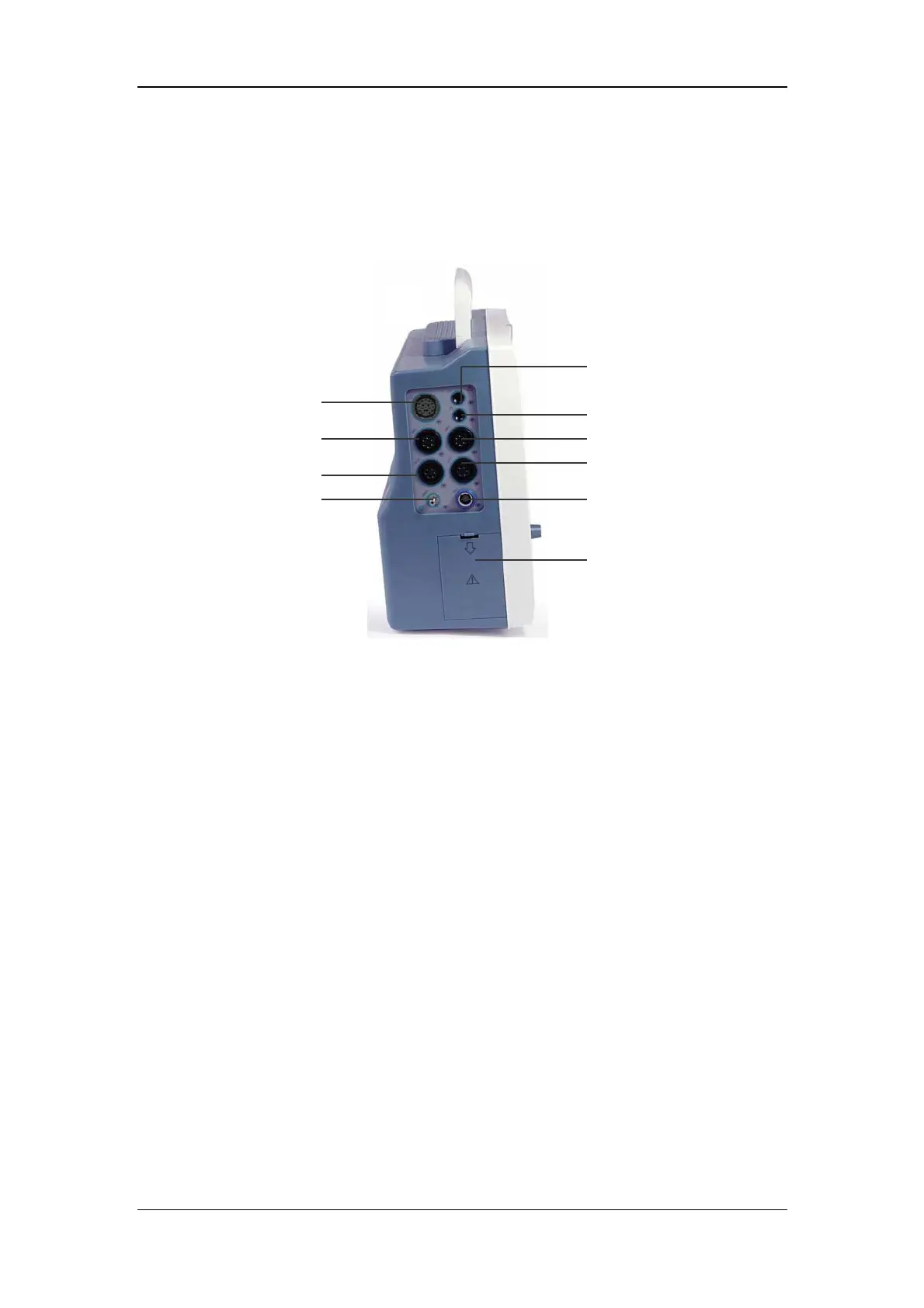

Figure 2-2 Left Side Panel
1. CO
2
: CO
2
sensor connector (Welch Allyn CO
2
module)
2. T1: Temperature probe connector (channel 1)
3. T2: Temperature probe connector (channel 2)
4. IBP1: IBP transducer connector (channel 1)
5. IBP2: IBP transducer connector (channel 2)
6. ECG: ECG cable connector
7. CO: CO cable connector
8. NIBP: NIBP cuff hose connector
9. SpO
2
: SpO
2
sensor connector
10. Battery door
1
2
3
4 5
6
7
8 9
10
