TC--C2 COMPACT TROLLEY
4
4 INSTRUCTIONS
D Multiple fixings allow the third shelf to be raised or lowered to accommodate varying equipment configurations. It is
recommended that this shelf is repositioned, if required, before commencing equipment installation.
D If the shelf is repositioned, ensure its rear edge is aligned with the rear edge of the fixed shelf to maintain an even
balance. Remove the four M6 screws, adjust the shelf position then replace the four screws, tightening to a torque of
10.5Nm.
D If a monitor is to be used, it is best fitted before the scope pole assembly.
4.1 Position the trolley on a flat surface and apply both castor brakes.
4.2 Secure the left and right hand guard rails to the TC--C2 as shown in Figure 4-1. Tighten each screw using the ball driver
provided.

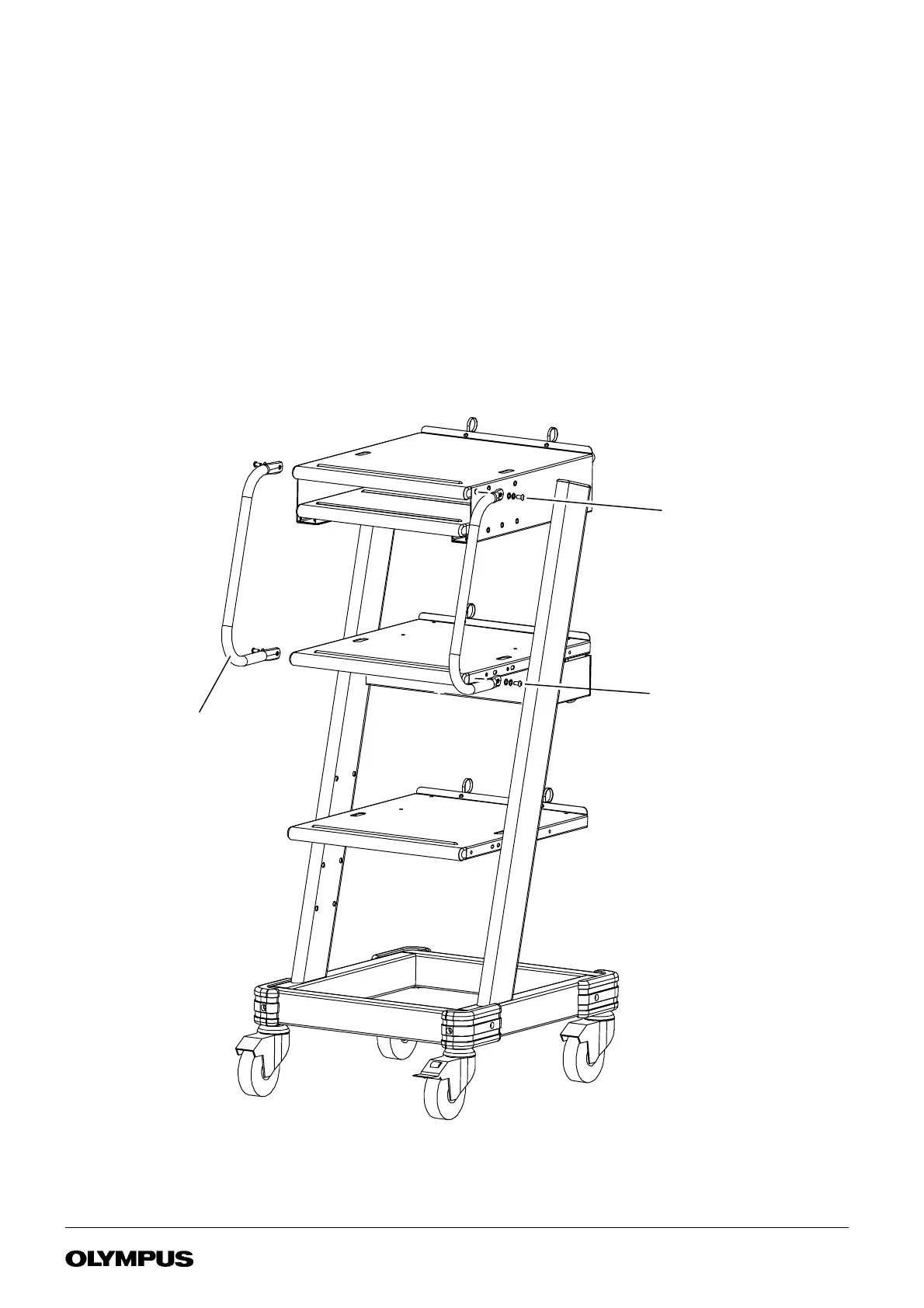

FIGURE 4-1
Left hand guard rail
Right hand guar d rail
M6 x 12 screw
M6 crinkle washer
M6 plain washer
(4 positions)
To Next Page
