Chapter 2
Nomenclature and Function
s
13

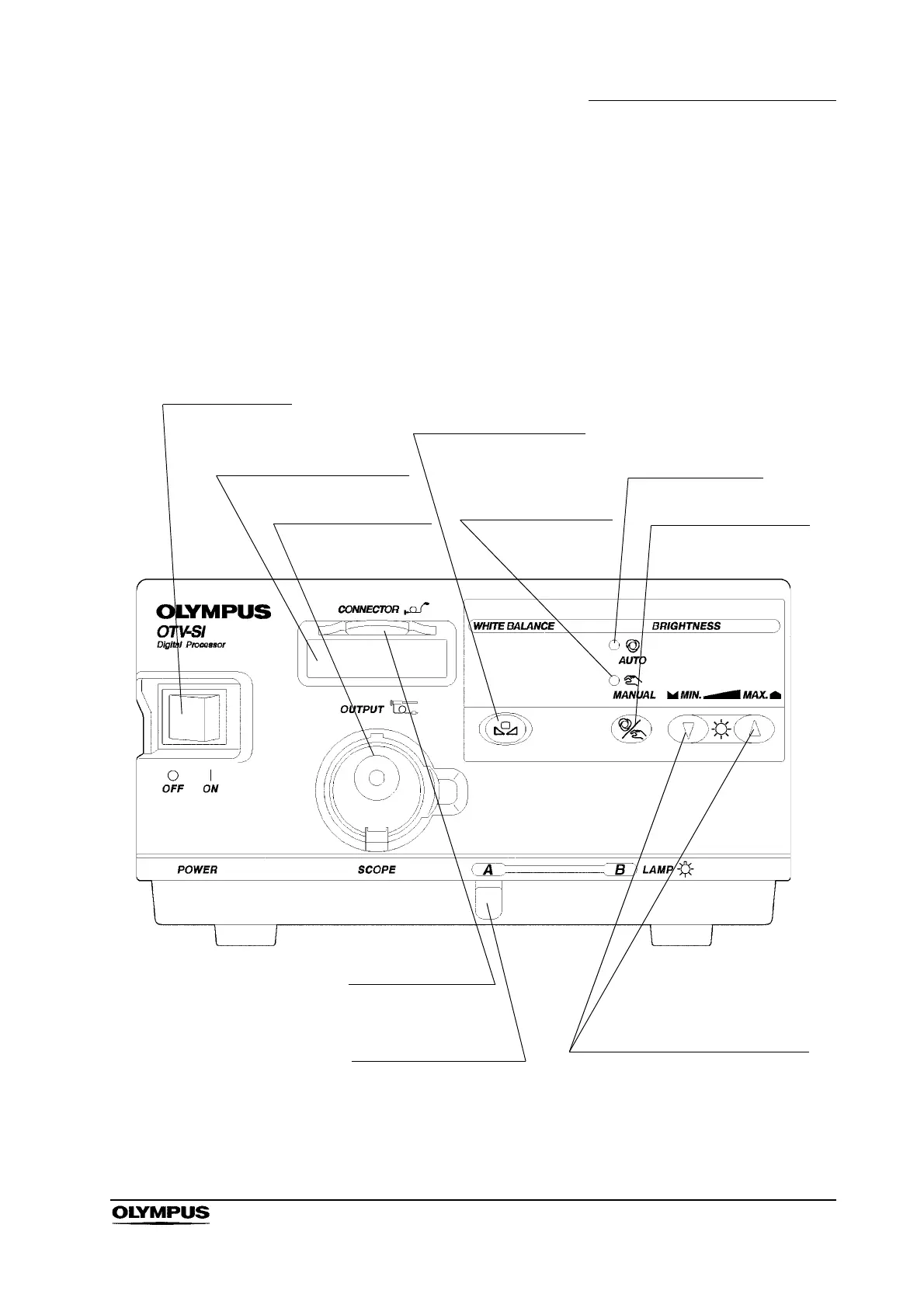

VIDEO SYSTEM OTV-SI
2.2
Front panel
Type A
1.
Power switch
4.
White balance switch
2.
Video connector
socket
3.
Output connector
6.
Manual indicato
r
5.
Auto indicator
7.
Auto/Manual
brightness selecto
r
10.
Unlocking
lever
9.
Lamp selection lever
8.
Brightness control switc
hes
VISY218
18
20
Table of Contents
Default Chapter
3
Table of Contents
3
Labels and Symbols
7
Important Information - Please Read before Use
9
Intended Use
9
Instruction Manual
9
User Qualifications
10
Instrument Compatibility
10
Repair and Modification
11
Signal Words
11
Dangers, Warnings and Notes
12
Cardiac Applications
15
Chapter 1 Checking the Package Contents
16
Chapter 2 Nomenclature and Functions
18
Symbols and Descriptions
18
Front Panel
19
Rear Panel
22
Side Panel
24
Ancillary Equipment
25
Keyboard (Optional)
26
Menu Actions
29
Chapter 3 Installation and Connection
31
Installation
32
Connection to the Video Monitor
34
Connection to the Keyboard (Optional)
36
Connection of the Endoscope
38
Connection to the Color Video Printer (OEP-3/OEP-Not Available in some Countries)
42
Connection to the Video Tape Recorder
44
Connection to a Wall Mains Outlet
46
Attachment of the Water Container (MD-431, Type B Only)
49
Chapter 4 Inspection
50
Inspection of the Power Supply
50
Illumination Inspection
52
Inspection of the Display on the Monitor
53
Inspection of the Freeze Function
54
Inspection of the Release Function
54
Inspection of the Manual Brightness Adjustment
55
Inspection of the Automatic Brightness Adjustment
55
Inspection of the Air/Water Feed (Type B Only)
55
Chapter 5 Operation
56
Turning the Power on
58
Basic Menu Operation
60
Clock Adjustment
63
Adjusting the Video Monitor
70
Color Adjustment
73
Brightness Adjustment
86
Image Enhancement
97
Patient Data Entry/Deletion
99
Remote Control Switches
106
5.10 Freeze
113
5.11 Zoom
118
5.12 Saving User Settings
121
5.13 Load User Settings
125
5.14 Default Settings
128
Photography with the Color Video Printer (OEP-3/OEP-Not Available in some Countries)
129
5.16 Recording with the Video Tape Recorder
131
5.17 Rotated Image
134
Air/Water Feed (Type B Only)
136
5.19 after Use
138
Chapter 6 Care, Storage and Disposal
139
Care
139
Lamp Replacement
140
Storage
143
Disposal
143
Chapter 7 Troubleshooting
144
Troubleshooting Guide
144
Returning the Instrument for Repair
147
Appendix
149
System Chart
149
Operating Environment
152
Transportation and Storage Environment
152
Specifications
152
Introduction
162
Specifications
163
Safety Precautions
164
Instructions
165
Manoeuvring & Transportation
169
Care, Storage and Maintenance
169
Spares
170
Accessories
170
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Olympus OTV-SI and is the answer not in the manual?
