OMNICONNECT® Operations
7.

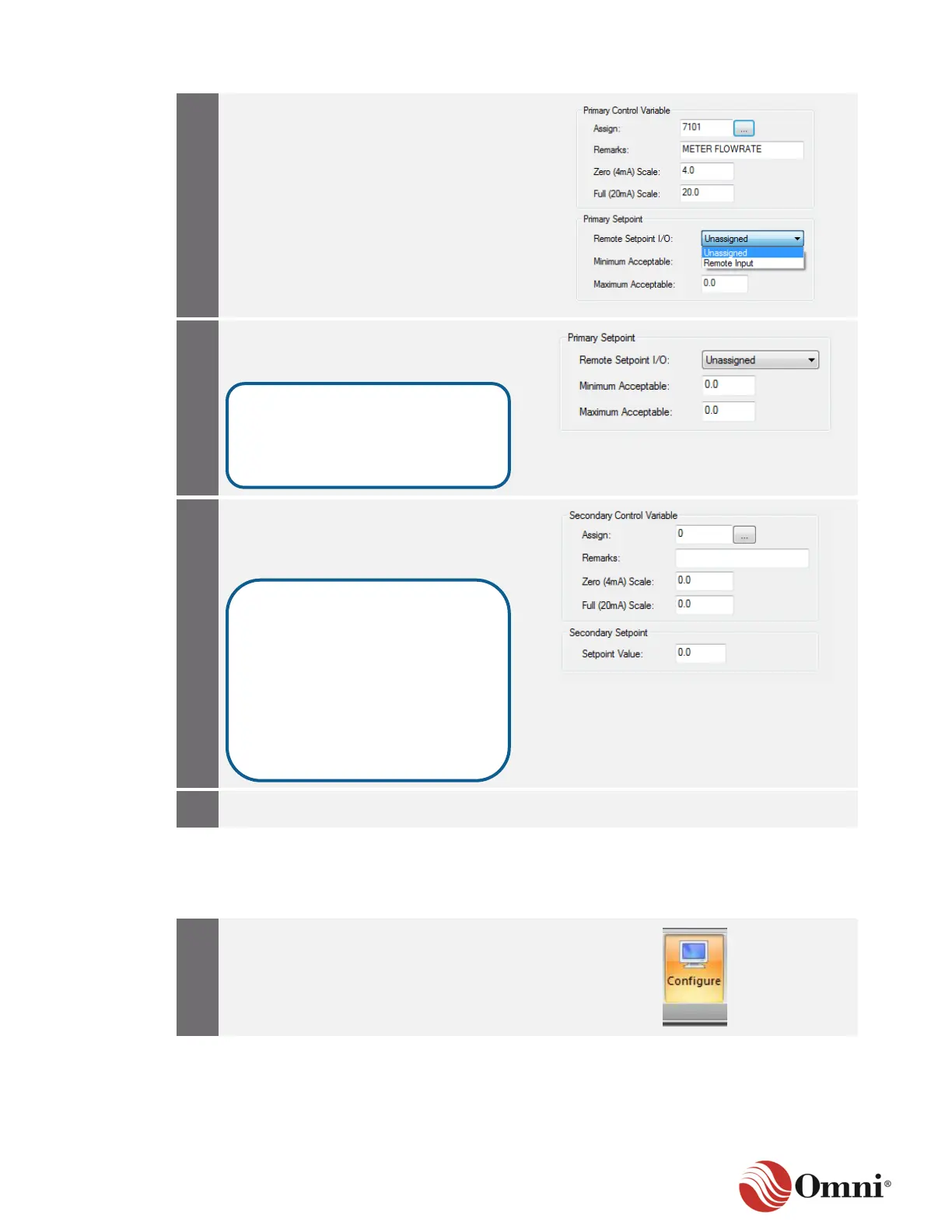

In the Primary Setpoint group, select an
option in the Remote Input I/O drop-down
list:
a. Choose Unassigned if you will input
the primary setpoint locally through
the front panel.
b. Choose Remote Input if you will
provide a remote source through
Modbus writes.
8.
Enter the Minimum and Maximum
Acceptable primary setpoint values
(optional).
9.
a. Repeat Steps 4 through 6 for the
secondary control variable, if using.
b. Enter a value for the Secondary
Setpoint.
10.
Click Apply to save your changes.
3.7.2 PID Tuning Configuration
To access PID tuning setup options, follow these instructions:
1.
In the Actions ribbon, click Configure.
When a setpoint value outside of
this range is received, the setpoint
will not be allowed to rise above or
below these values.
The primary variable will be the
controlled variable until the
secondary variable reaches this
setpoint. The secondary variable
will not be allowed to drop below
or rise above this setpoint,
depending on the Error Select
entry in the PID Loop 1 Tuning
tab.
