PC Setup Settings The settings relating to NT link PC communications must be set as shown in
the following table.
Note 1. If an improper setting is used, a non-fatal error will occur, AR 1302 will be
turned ON, and the default setting (0 or 00) will be used.
2. For information on the NT link settings for another OMRON PC, refer to that
PC’s Operation Manual.
3. If an out-of-range value is set, the following communications conditions will
result. In that case, reset the value so that it is within the permissible range.
Communications mode: Host Link
Communications format: Standard settings
(1 start bit, 7-bit data; even parity, 2 stop bits,
9,600 bps)
Transmission delay: No
Node number: 00
1-9-10 SRM1 One-to-one Link Communications
In a one-to-one link, a SRM1 is linked to another SRM1, CPM1/CPM1A, a
CQM1, or a C200HS through an RS-232C Adapter and standard RS-232C
cable. One of the PCs will serve as the master and the other as the slave. The
one-to-one link can connect up to 256 bits (LR 0000 to LR 1515) in the two
PCs.

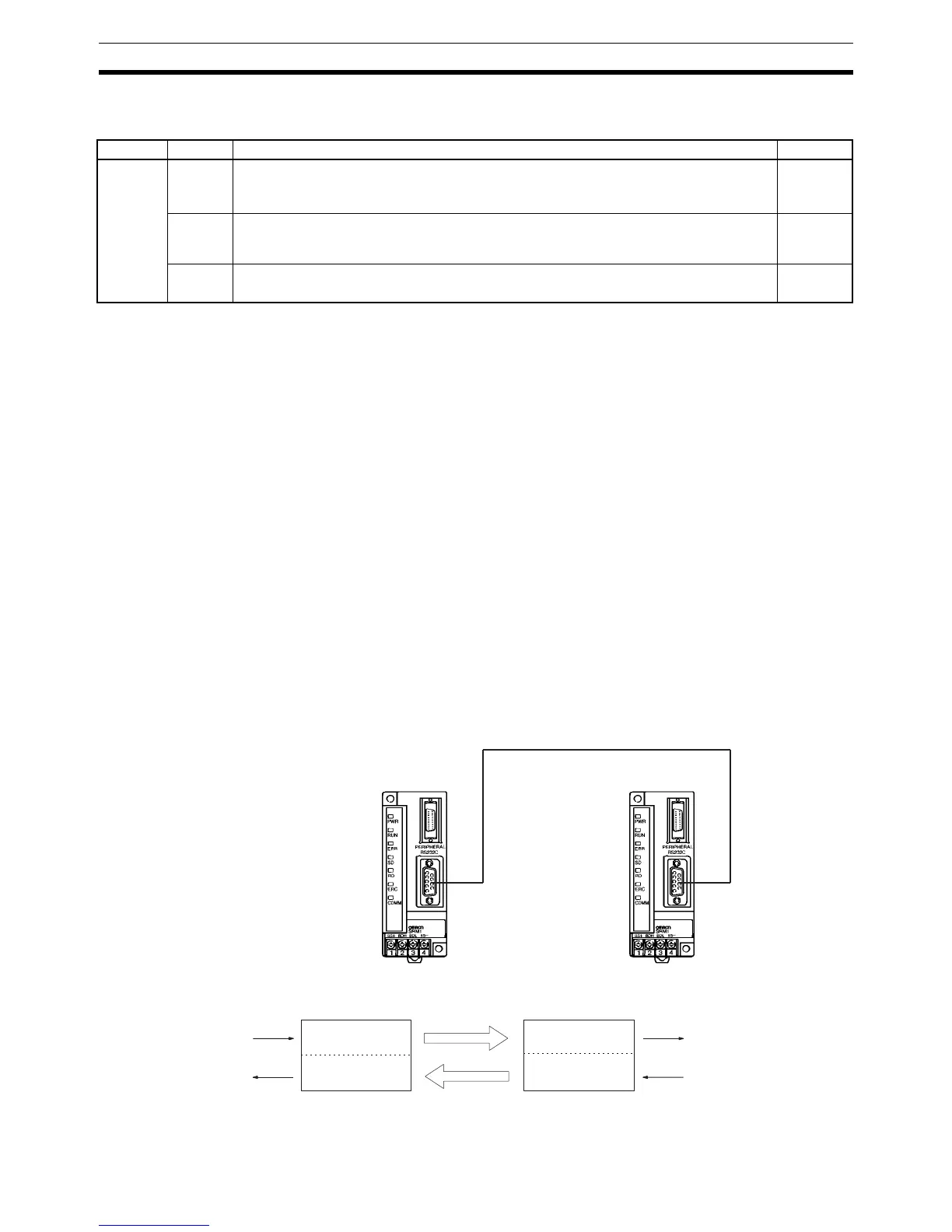

One-to-one SRM1 Links The following diagram shows a one-to-one link between two SRM1s.
The words used for the one-to-one link are as shown below.
Word Bit Function Setting
DM 6650 00 to 07
Port settings
1
00: Standard (1 start bit, 7-bit data, even parity, 2 stop bits, 9,600 bps)
01: Settings in DM 6651
00
(Any value
is OK)
08 to 11 Link area for one-to-one PC link via peripheral port
0: LR 00 to LR 15
0
(Any value
is OK)
12 to 15
Communications mode
1
0: Host link; 2: 1-to-1 PC link (slave); 3: 1-to-1 PC link (master); 4: NT link
4
SRM1SRM1
RS-232C Port RS-232C Port
LR00
LR07
LR08
LR00
LR07
LR08
LR15
Master
Area for writing
Area for reading
Slave
Area for writing
Area for reading
Write data
Read data
Read data
Write data
LR15
