CQM1 Interrupt Functions Section 1-5
DM 0000 0000 Lower limit #1 (0°)
DM 0001 0085 Upper limit #1 (85°)
DM 0002 0100 Subroutine number 100
DM 0003 0090 Lower limit #2 (90°)
DM 0004 0175 Upper limit #2 (175°)
DM 0005 0101 Subroutine number 101
DM 0006 0180 Lower limit #3 (180° )
DM 0007 0265 Upper limit #3 (265°)
DM 0008 0102 Subroutine number 102
DM 0009 0270 Lower limit #4 (270°)
DM 0010 0355 Upper limit #4 (355°)
DM 0011 0103 Subroutine number 103
DM 0012 0000 Lower limit #1 (0°)
DM 0013 0000 Upper limit #1 (0°)
DM 0014 FFFF No subroutine number
DM 0015 0000 Lower limit #1 (0°)
DM 0016 0000 Upper limit #1 (0°)
DM 0017 FFFF No subroutine number
DM 0018 0000 Lower limit #1 (0°)
DM 0019 0000 Upper limit #1 (0°)
DM 0020 FFFF No subroutine number
DM 0021 0000 Lower limit #1 (0°)
DM 0022 0000 Upper limit #1 (0°)
DM 0023 FFFF No subroutine number

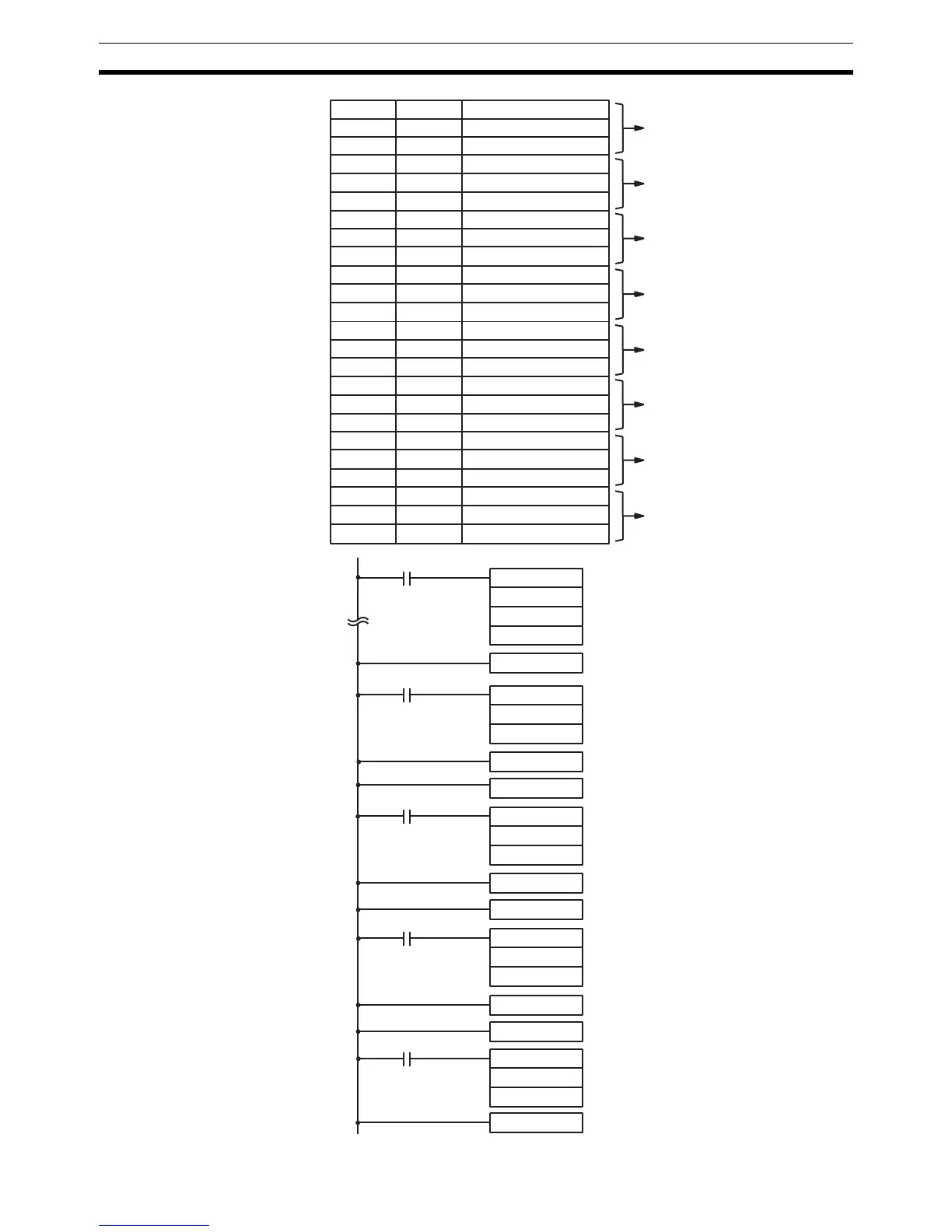

First range setting (0° to 85°)
Second range setting (90° to 175°)
Third range setting (180° to 265°)
Fourth range setting (270° to 355°)
Fifth range setting (Not used.)
Sixth range setting (Not used.)
Seventh range setting (Not used.)
Eighth range setting (Not used.)
00000
SBN(92) 100
@CTBL(63)
001
001
DM 0000
Specifies port 1, saves the comparison
table in range matching format, and be-
gins comparing.
SBN(92) 101
Turns ON 10000. Turns other bits in
IR 100 OFF.
MOV(21)
#0001
100
25313 (Always ON)
SBN(92) 102
Turns ON 10001. Turns other bits in
IR 100 OFF.
MOV(21)
#0002
100
25313 (Always ON)
SBN(92) 103
Turns ON 10002. Turns other bits in
IR 100 OFF.
MOV(21)
#0004
100
25313 (Always ON)
Turns ON 10003. Turns other bits in
IR 100 OFF.
MOV(21)
#0008
100
25313 (Always ON)
RET(93)
RET(93)
RET(93)
RET(93)
