Advanced I/O Instructions (CQM1 Only) Section 2-2
2-2 Advanced I/O Instructions (CQM1 Only)
Advanced I/O instructions enable control, with a single instruction, of previ-
ously complex operations involving external I/O devices (digital switches, 7-
segment displays, etc.). This section introduces advanced I/O instructions,
which are also covered at the end of SECTION 5 Instruction Set.
There are four advanced I/O instructions, as shown in the following table. All
of these are expansion instructions and must be assigned to function codes
before they can be used.
2-2-1 TEN-KEY INPUT – TKY(18)
This instruction inputs 8 digits in BCD from a 10-key keypad and uses 10 input
points.

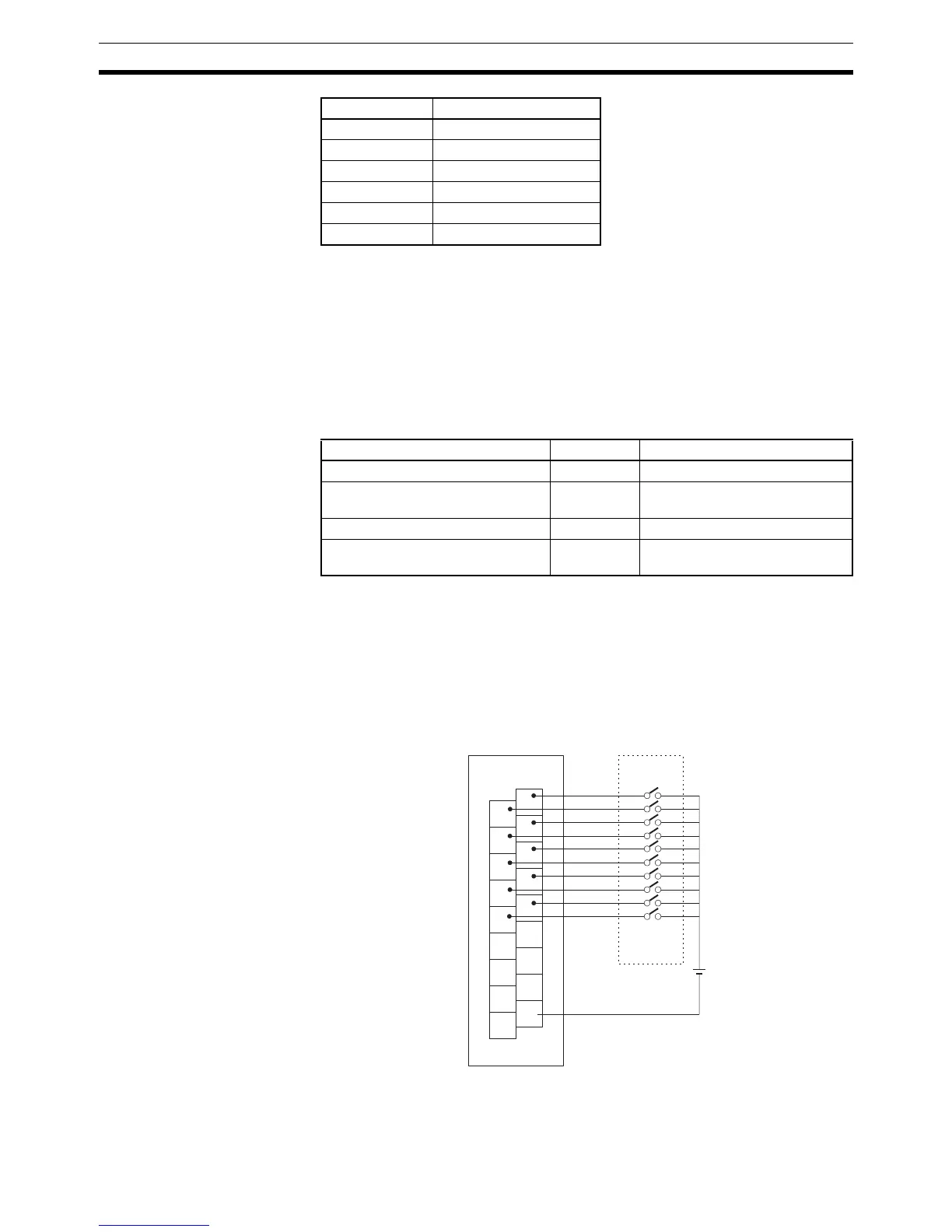

Hardware Prepare a 10-key keypad, and connect it so that the switches for numeric keys
0 through 9 are input to points 0 through 9 as shown in the following diagram.
Either the input terminals on the CPU Unit or the inputs on a DC Input Unit
with 16 or more input points can be used.
BCNT 67
BCMP 68
STIM 69
FCS ---
HEX ---
STUP ---
Mnemonic Function code
Name Mnemonic Function
TEN-KEY INPUT TKY(18) BCD input from 10-key keypad
HEXADECIMAL KEY INPUT HKY(––) Hexadecimal input from 16-key
keypad
DIGITAL SWITCH INPUT DSW(87) SV input from digital switch
7-SEGMENT DISPLAY OUTPUT 7SEG(88) BCD output to 7-segment dis-
play
1
3
5
7
9
11
13
15
COM
0
2
4
6
8
10
12
14
COM
ID212
0 V
0
9
DC Input Unit
10-key
