Omron CPM1 Programming Manual

207
JUMP and JUMP END – JMP(04) and JME(05) Section 5-12

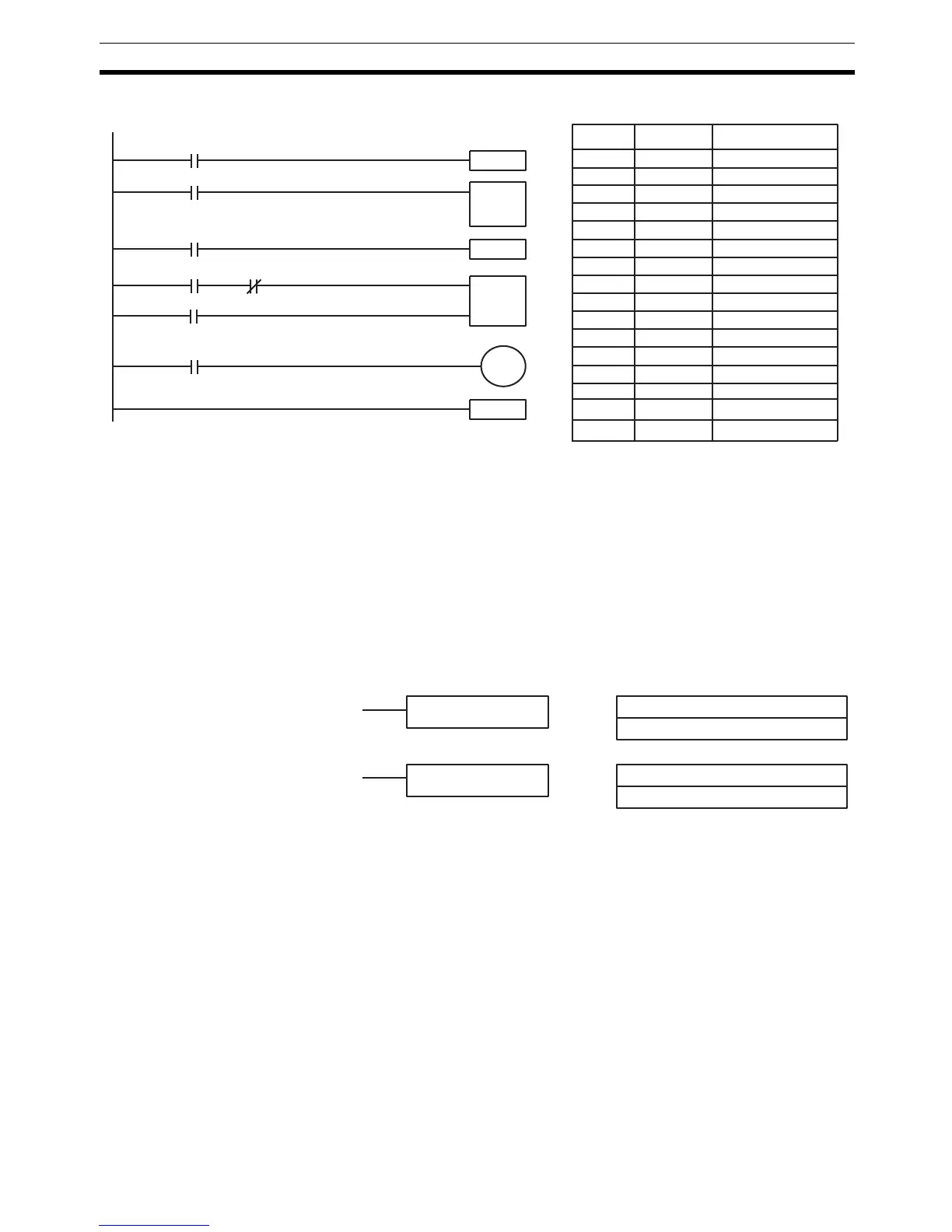

Example The following diagram shows IL(02) being used twice with one ILC(03).
When the execution condition for the first IL(02) is OFF, TIM 127 will be reset
to 1.5 s, CNT 001 will not be changed, and 00502 will be turned OFF. When
the execution condition for the first IL(02) is ON and the execution condition
for the second IL(02) is OFF, TIM 127 will be executed according to the status
of 00001, CNT 001 will not be changed, and 00502 will be turned OFF. When
the execution conditions for both the IL(02) are ON, the program will execute
as written.
5-12 JUMP and JUMP END – JMP(04) and JME(05)
Limitations Jump numbers 01 through 99 (00 through 49 in CPM1/CPM1A/SRM1 PCs)
may be used only once in JMP(04) and once in JME(05), i.e., each can be
used to define one jump only. Jump number 00 can be used as many times as
desired.
Jump numbers run from 00 through 99 in the CQM1 PCs and from 00 through
49 in the CPM1/CPM1A/SRM1 PCs.
Description JMP(04) is always used in conjunction with JME(05) to create jumps, i.e., to
skip from one point in a ladder diagram to another point. JMP(04) defines the
point from which the jump will be made; JME(05) defines the destination of
the jump. When the execution condition for JMP(04) in ON, no jump is made
and the program is executed consecutively as written. When the execution
condition for JMP(04) is OFF, a jump is made to the JME(05) with the same
jump number and the instruction following JME(05) is executed next.
If the jump number for JMP(04) is between 01 and 99, jumps, when made, will
go immediately to JME(05) with the same jump number without executing any
Address Instruction Operands
00000 LD 00000
00001 IL(02)
00002 LD 00001
00003 TIM 127
# 0015
00004 LD 00002
00005 IL(02)
00006 LD 00003
00007 AND NOT 00004
00008 LD 00100
00009 LD 00100
00010 CNT 001
010
00011 LD 00005
00012 OUT 00502
00013 ILC(03)
00000
00001
ILC(03)
IL(02)
00004
00005
00003
00002
IL(02)
00502
CP
R
CNT
001
IR 010
00100
001.5 s
TIM 127
#0015
N: Jump number
#
Ladder Symbols Definer Values
JMP(04) N
N: Jump number
#
JME(05) N
