Omron CPM1 Programming Manual

32
Pulse Output Function (CQM1 Only) Section 1-3

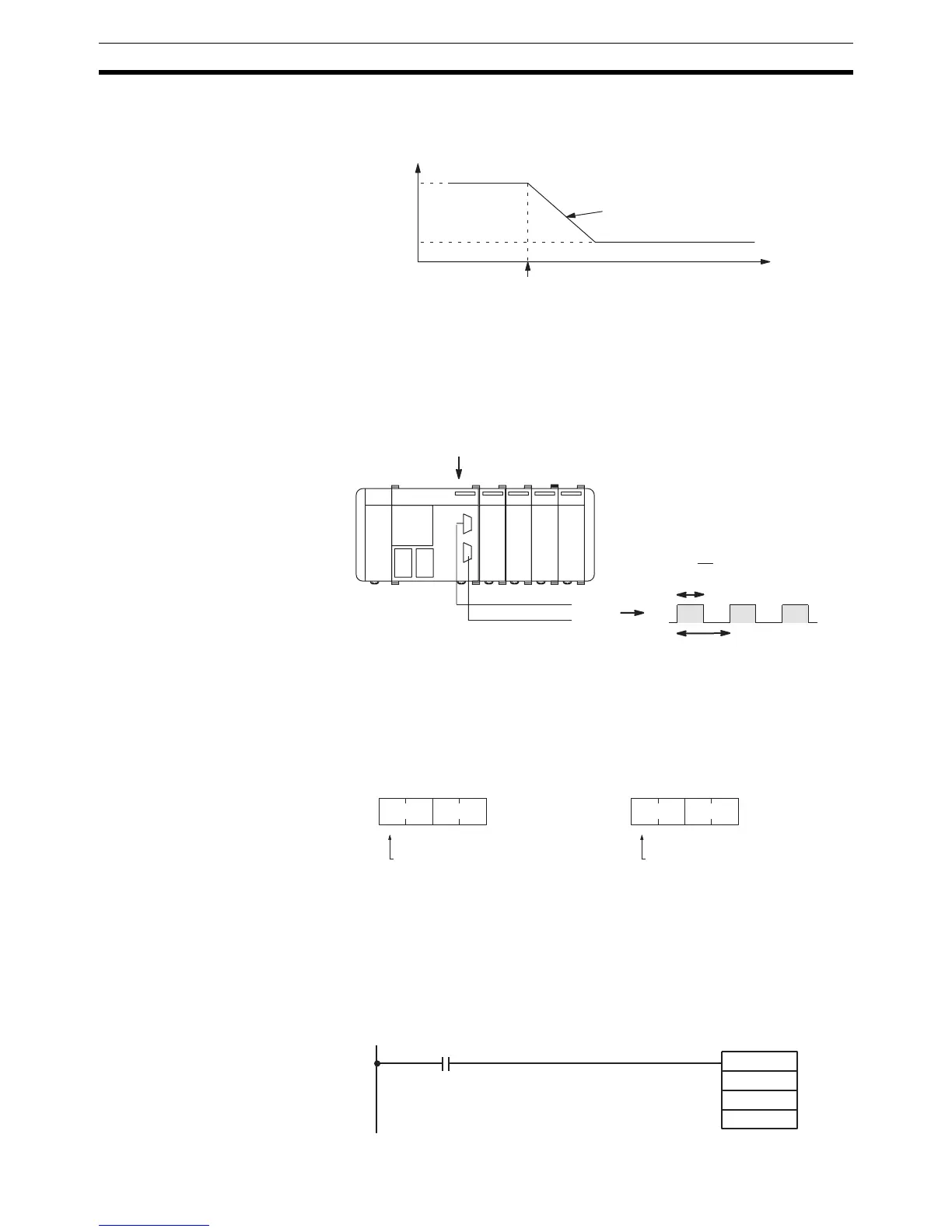

The following diagram shows the frequency of pulse outputs from port 1 as
the program is executed.
1-3-4 Variable-duty-ratio Pulse Output from Ports 1 and 2
With the CQM1-CPU43-EV1, variable-duty-ratio pulses can be output from
ports 1 and/or 2 using PWM(––). The pulse frequency can be set to 91.6 Hz,
1.5 kHz, or 5.9 kHz. This function can be used for various kinds of control out-
puts, such as light intensity output or speed control output to an inverter.
Note Only the CQM1-CPU43-EV1 CPU Unit can output pulses from ports 1 and 2.
PC Setup Settings Before outputting variable-duty-ratio pulses from port 1 or 2, switch the PC to
PROGRAM mode and make the following settings in the PC Setup.
Specify variable-duty-ratio pulse outputs in DM 6643 (port 1) and/or DM 6644
(port 2).
Standard pulses cannot be output from a port if it has been set for standard
variable-duty-ratio pulse output in DM 6643 or DM 6644.
Starting the Pulse Output Pulses will begin to be output from the specified port when PWM(––) is exe-
cuted. Specify port 1 or 2 (P=001 to 002). Set the frequency to 5.9 kHz,
1.5 kHz, or 91.6 Hz (F=000, 001, or 002). Set the duty ratio from 1% to 99%
(D=0001 to 0099, BCD).
Frequency
Time
20 kHz
5 kHz
About 1 kHz/4 ms
00000
goes ON
T
t
on
CPU Unit
Port 1
Port 2
Frequency = 91.6 Hz,
1.5 kHz,
5.9 kHz
= 1% to 99%
t
on
T
15 0
DM 6643
1
Bit
Port 1 pulse type setting
1: Variable-duty-ratio pulse output
Default: Standard pulse output
15 0
DM 6644
1
Bit
Port 2 pulse type setting
1: Variable-duty-ratio pulse output
Default: Standard pulse output
@PWM(––)
F
P
Execution condition
D
