2.26
Maintenance

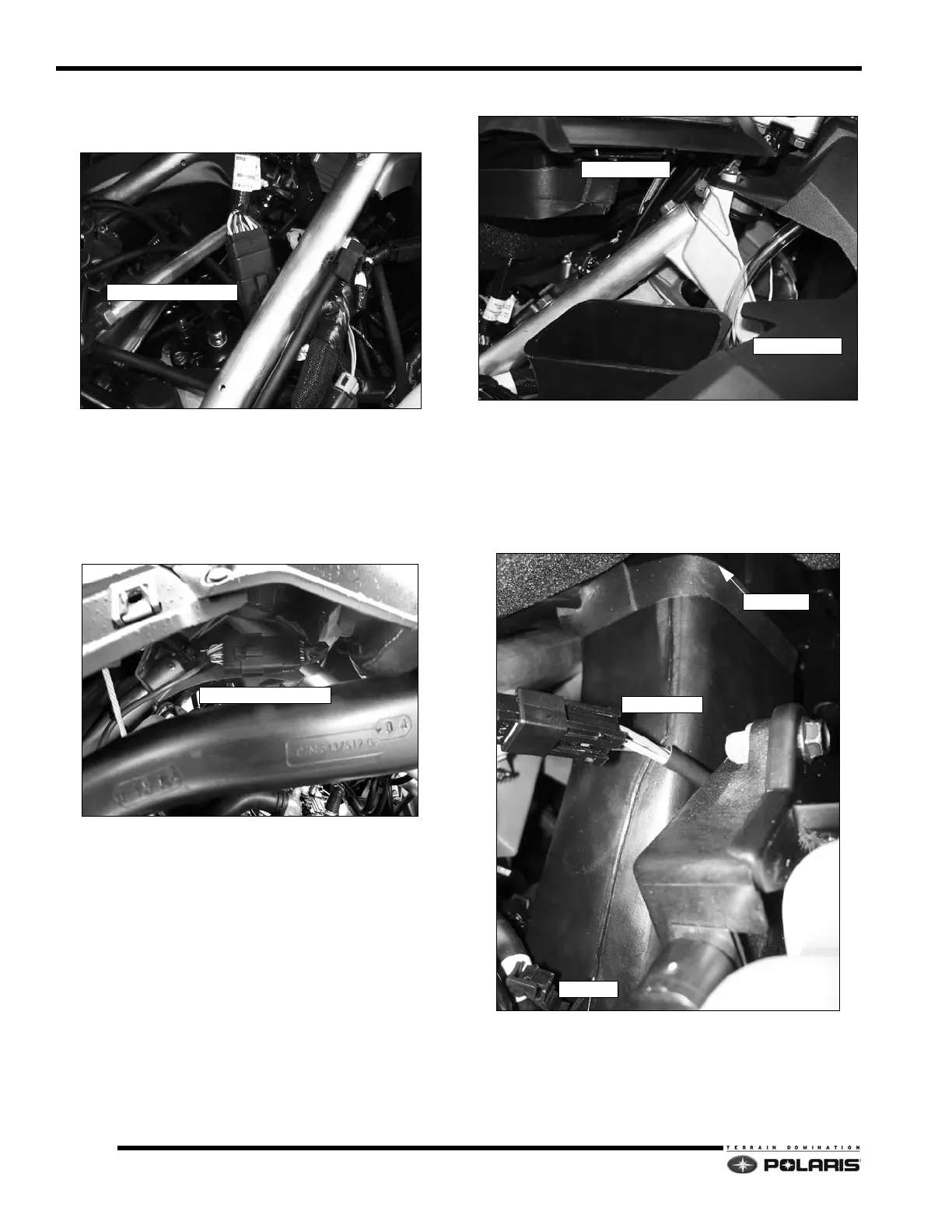

7. When installing the hood on 2010-2012 models, verify
the hood harness connector is routed under the over
structure tube.
NOTE: The hood harness connector must be routed
un
der the over structure tube to prevent the wires
from coming into contact with the other components.
8. On 2013 models, the hood harness connector is
lo
cated on the right-side of the handlebar over
structure.
9. Engage the two console tabs with the hood plenum
slo
ts at the rear of the hood.
NOTE: Failure to properly install the console tabs
int
o the hood plenum may not allow the hood to seat
correctly.
10. Prior to closing the left side door panel, verify the air
box
intake tube is installed in both the air box and hood
intake plenum.
NOTE: Failure to properly install the intake tube may
cau
se snow or under hood hot air ingestion into the
intake system.
