Engine Crankcase Disassembly / Inspection

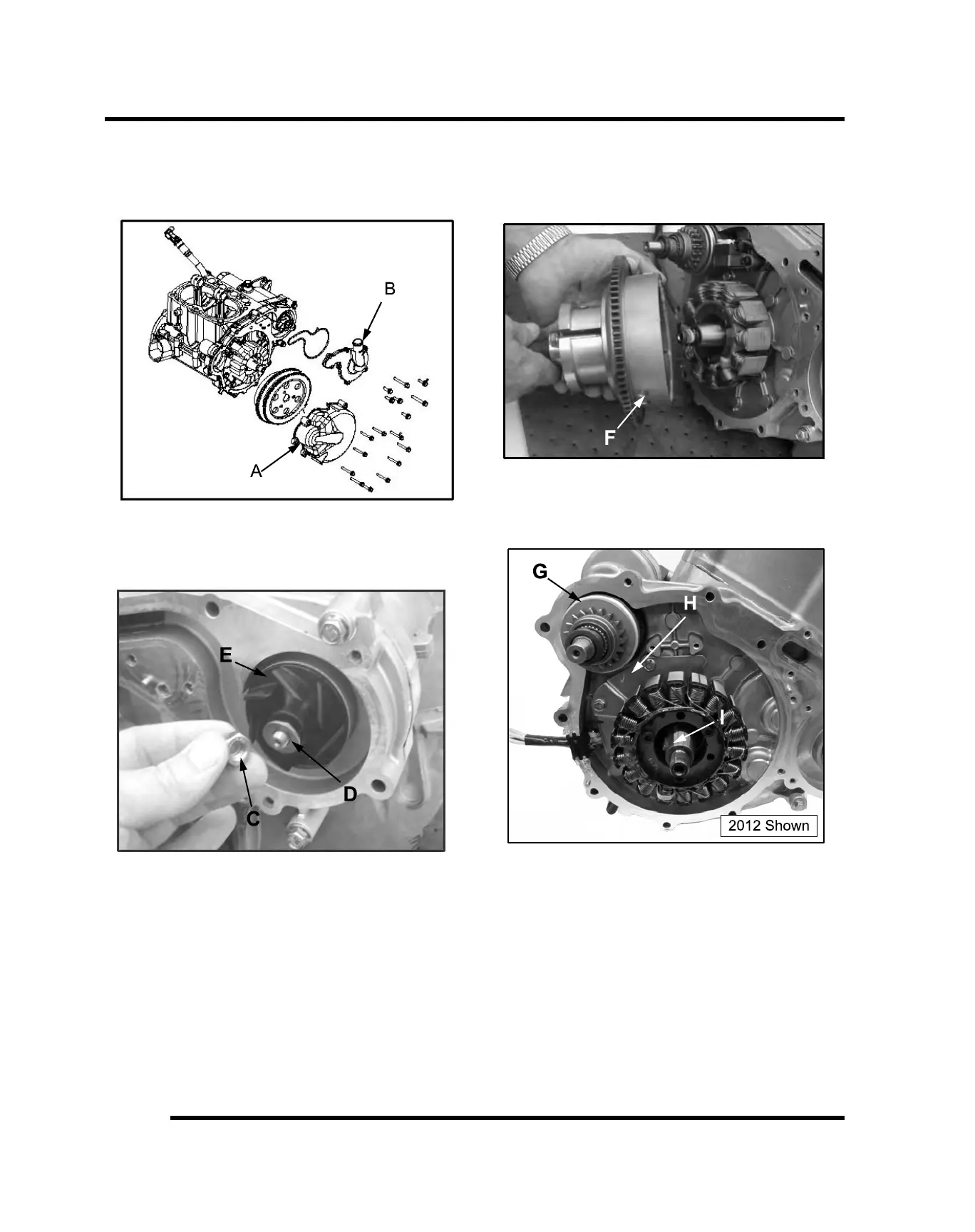

1. Remove the stator cover (A) and water pump cover
(B).
2. Remove the nylok nut (C), washer (D), and water
pump impeller (E). Remove part of the water pump
seal behind the impeller.
3. Remove flywheel nut and washer.
4. Install Flywheel Puller (PN 2871043) and remove
flywheel (F). CAUTION: Do not thread the puller
bolts into the flywheel more than 1/4, or stator coils
may be damaged.
5. Remove the starter bendix (G), wire holddown plate
(H), and the woodruff key (I) from the crankshaft. The
stator does not have to be removed at this point.
