7.66
9924864 - 2012-2014 SPORTSMAN 800 / 6X6
© Copyright 2013 Polaris Sales Inc.

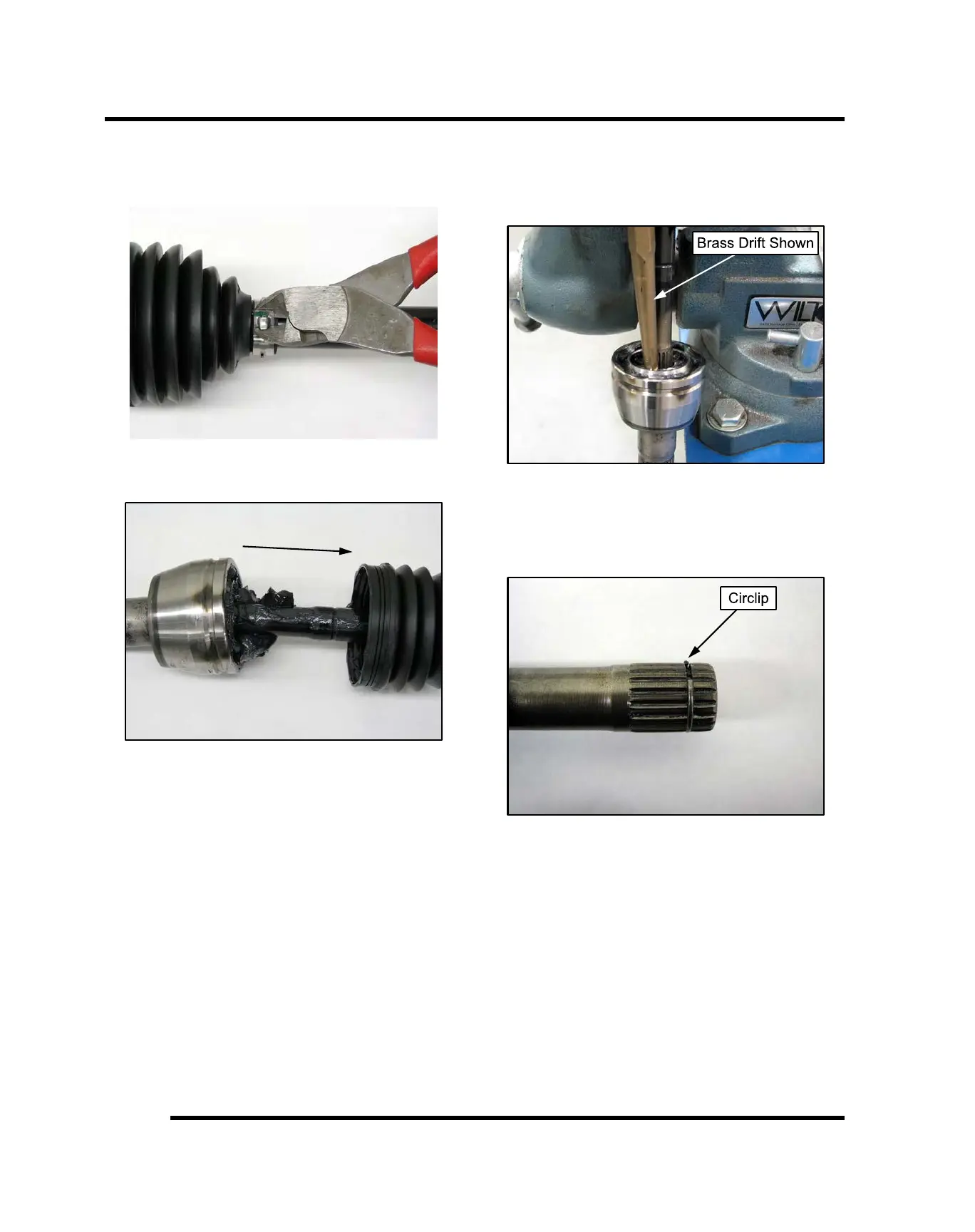

Outer CV Joint / Boot Replacement
1. Using a side cutters, cut away and discard the boot
clamps.
2. Remove the large end of the boot from the CV joint
and slide the boot down the shaft.
3. Clean the grease from the face of the joint.
4. Place the drive shaft in a soft-jawed vise.
5. Using a soft-faced hammer, or brass drift, strike the
inner race of the joint to drive the joint off the drive
shaft. Be sure to tap evenly around the joint to avoid
binding.
IMPORTANT: Tap on inner race only!
6. Make sure the circlip is on the shaft and not left in the
joint.
FINAL DRIVE
