9924864 - 2012-2014 SPORTSMAN 800 / 6X6
© Copyright 2013 Polaris Sales Inc.

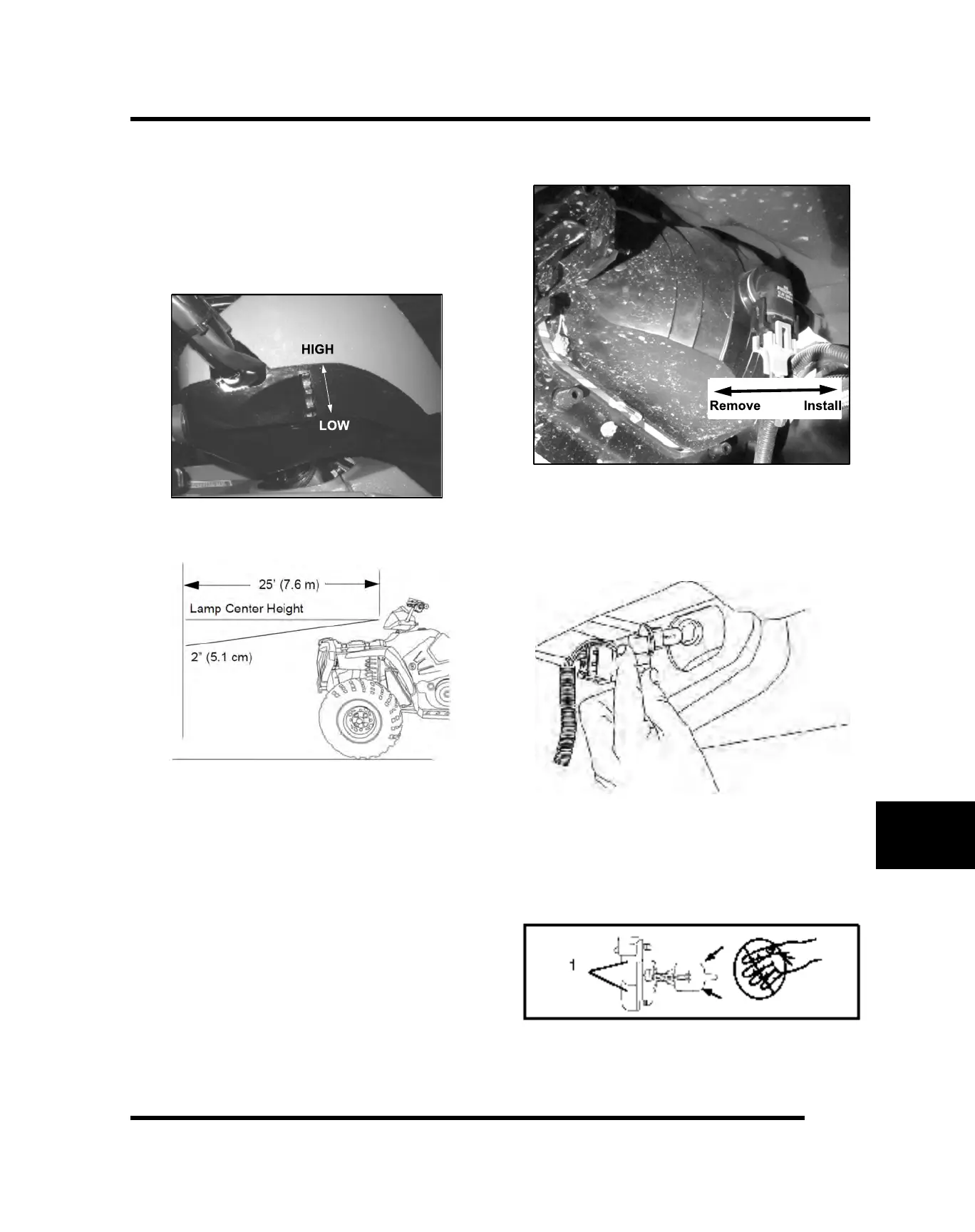

High Beam Headlight Adjustment
The headlight beam can be adjusted to any position
desired by turning the adjusting knob located on the
bottom right side of the headlight pod.
Raise Headlight - Turn knob counter-
counterclockwise
Lower Headlight - Turn knob clockwise
1. Place the vehicle on a level surface with the
headlight approximately 25' (7.6 m) from a wall.
2. Measure the distance from the floor to the center of
the headlight and make a mark on the wall at the
same height.
3. Start the engine and turn the headlight switch to high
beam.
4. Observe headlight aim. The most intense part of the
headlight beam should be aimed 2” (5.1 cm) below
the mark placed on the wall in Step 2.
NOTE: Rider weight must be included on the
seat. On machines with separate low beam
lights, the drop should be 8, (20.3 cm) in 25' from
the center of the low beam lamp.
5. Adjust beam to desired position.
Lower Headlamp Removal / Installation
1. Turn the back of the headllamp harness in a counter-
clockwise direction to loosen.
2. Pull the harness assembly out from the headlight
assembly.
3. Remove the lamp and replace with a new headlamp.
IMPORTANT: Do not touch the new lamp with
bare fingers. Hold the plastic part (1) of the lamp.
Oil from your skin leaves a residue, causing a hot
spot that will shorten the life of the lamp.
ELECTRICAL
