4.28
9924864 - 2012-2014 SPORTSMAN 800 / 6X6
© Copyright 2013 Polaris Sales Inc.

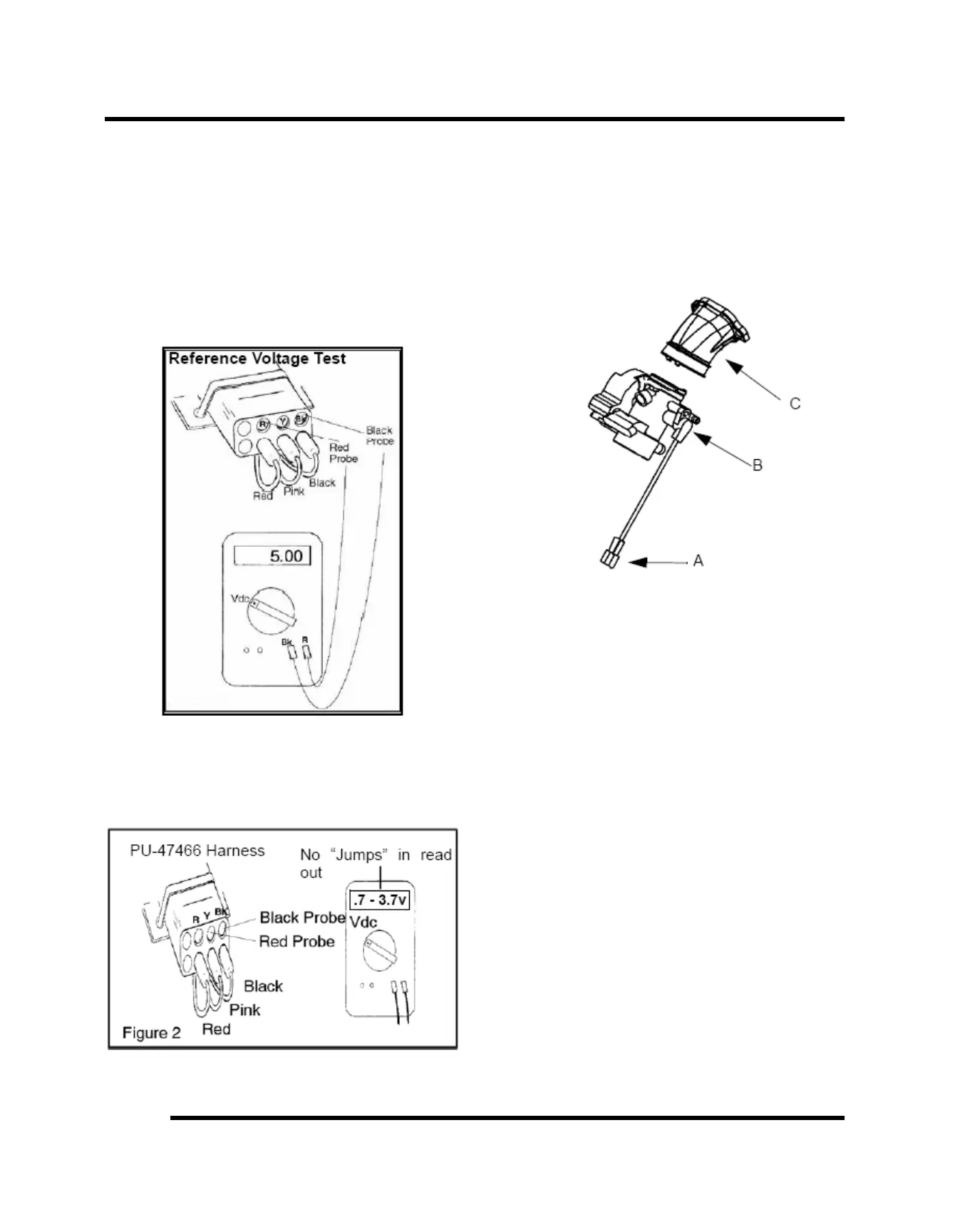

2. A 5 volt reference voltage from the harness is
required for the TPS test to be accurate. Refer to the
instructions provided with the TPS Test Adapter
Harness (PU-47082). Follow the steps to check
reference voltage.
3. To check tester reference voltage: Insert black
voltmeter probe into the “Bk” test port.
4. Connect the red meter probe into the “R” port and
verify the voltage is 4.99-5.01 Vdc. If this reading is
low, verify the 9 volt battery is good or try a new 9
volt battery.
5. To check TPS voltage: With the test leads connected
in the “Y” and “BK” ports and the meter set to Vdc,
slowly open and close the throttle while reading the
display. The voltage should increase smoothly with
no “jumps” or decreases when the throttle is applied.
6. If the sensor does not function correctly, replace it.
See “Throttle Position Sensor Replacement”.
7. Proceed to “Throttle Position Sensor Adjustment”.
Throttle Position Sensor Replacement
The correct position of the TPS is established and set at
the factory. If the TPS is repositioned, replaced or
loosened it must be re-calibrated.
1. Remove the side panel assembly and air box.
2. Disconnect sensor (A) from the harness.
3. Loosen the boot clamp (C) and rotate the throttle
body to gain access to the retaining screw (B).
4. Remove the retaining screw and replace the sensor.
5. Refer to “Throttle Position Sensor Adjustment” for
setting the TPS voltage and sufficiently tighten the
retaining screw once completed.
FUEL SYSTEM - GENERAL
