9924864 - 2012-2014 SPORTSMAN 800 / 6X6
© Copyright 2013 Polaris Sales Inc.

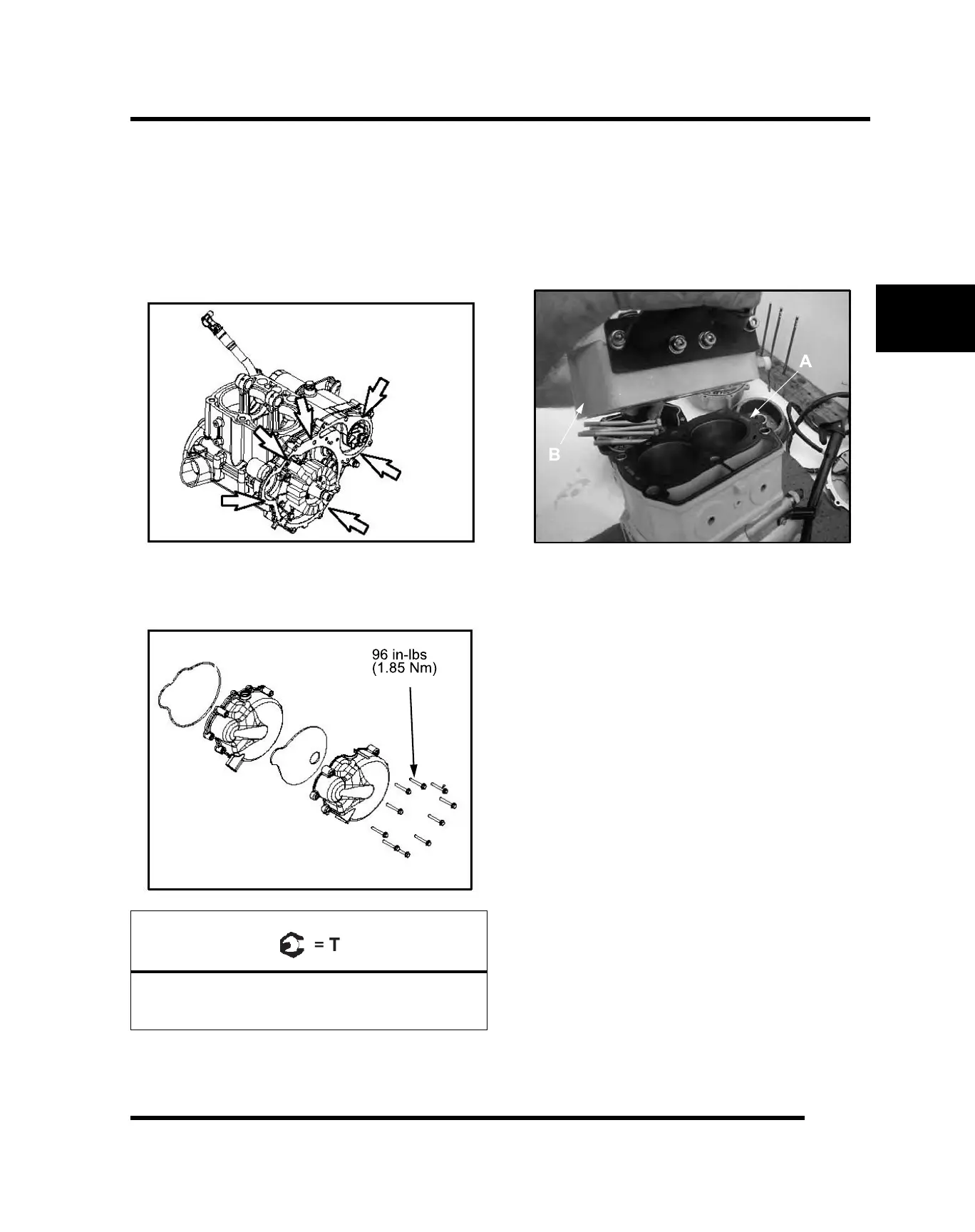

5. Inspect the mating surface around the gear/stator
housing cover and the crankcase for oil seepage. If
there is seepage between the mating surfaces, then
the gear/stator housing cover must be resealed.
Clean the gearcase surfaces and reseal with a new
gasket. Refer to the Lower Engine Disassembly
section and the Lower Engine Assembly section for
details. Inspect the areas pointed out in the
illustration for possible oil seepage.
6. Install stator housing with new O-rings. Torque the
bolts to specification. Follow bolt torque sequence on
found at the beginning of this chapter.
Stator Housing Bolt:
96 3 in-lbs (1.85 Nm)
*Torque in Sequence
Cylinder Head Installation
NOTE: Before reassembly, clean the bolts and bolt
holes with Primer N (PN 2870585) to remove any
debris. This will ensure proper sealing when
installing bolts.
1. Install the head gasket (A) on the cylinder (B).
2. Install cylinder head on cylinder.
ENGINE
