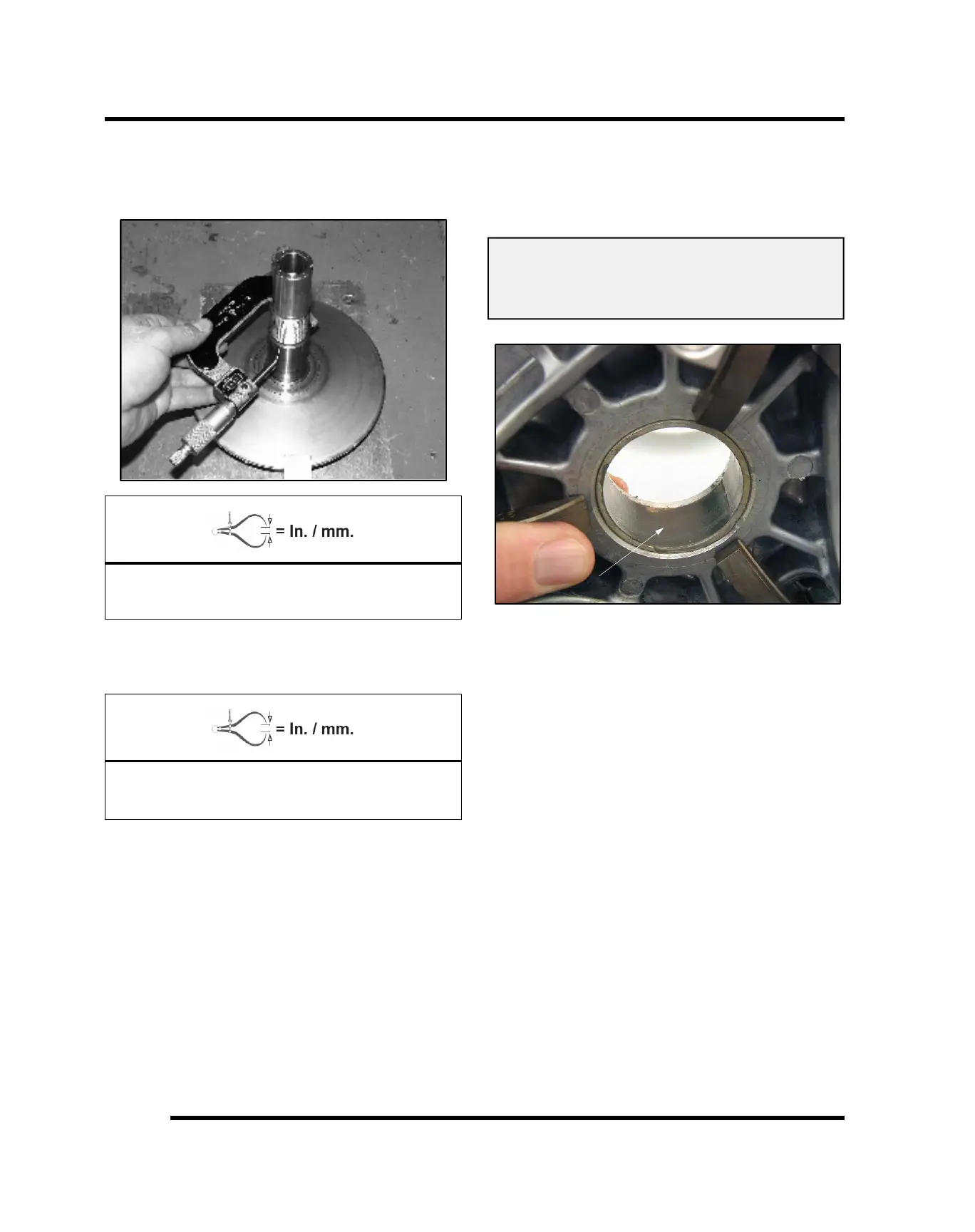

3. Inspect surface of shaft for pitting, grooves, or
damage. Measure the outside diameter and
compare to specifications. Replace the drive clutch
assembly if shaft is worn or damaged.
Shaft Diameter:
Standard: 1.3745 - 1.375
Service Limit: 1.3730”
4. Visually inspect PTFE thrust washer for damage.
Measure the thickness and compare to specification.
Replace if worn or damaged
PTFE Washer Thickness
Standard: .030” (.76mm)
Service Limit: .025” (.64mm)
Moveable Sheave Bushing Inspection
Inspect the Teflon coating (arrow) on the moveable
sheave bushing. Inspect BOTH sheaves for signs of
wear, grooving or cracking. De-glaze surfaces with a
3Mä pad if needed.
Moveable Sheave Bushing Inspection:
Replace the cover bushing if more brass than
Teflon® is visible on the bushing. Refer to bushing
replacement in this chapter.
