10.39

9924864 - 2012-2014 SPORTSMAN 800 / 6X6

Brake Lamp/Tail Lamp Replacement (6X6)

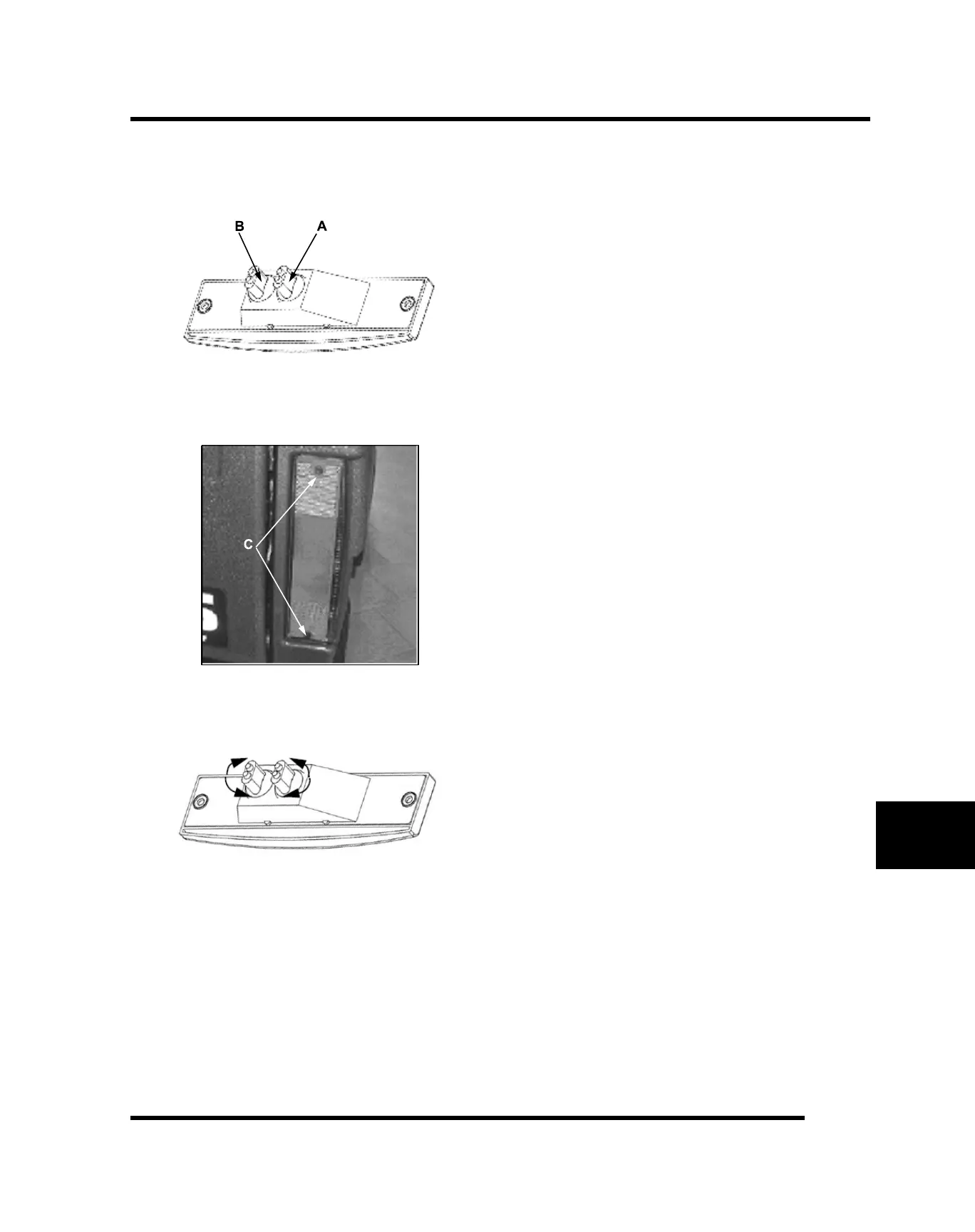

The tail lamp (A) and stop lamp (B) are located in the

rear tail lamp housing.

1. Remove the screws (C) holding the tail lamp

assembly to the box and pull out.

2. To remove either of the bulbs, turn the holder

assembly 1/4 turn and pull out.

3. Replace the bulb. Install the holder assembly and

apply 1/4 turn to lock in place. Refer to the parts

manual for the correct bulb part number.

4. Reinstall the tail lamp assembly. Install the screws

and tighten sufficiently.

ELECTRICAL
