5.20
9924864 - 2012-2014 SPORTSMAN 800 / 6X6
© Copyright 2013 Polaris Sales Inc.
STEERING

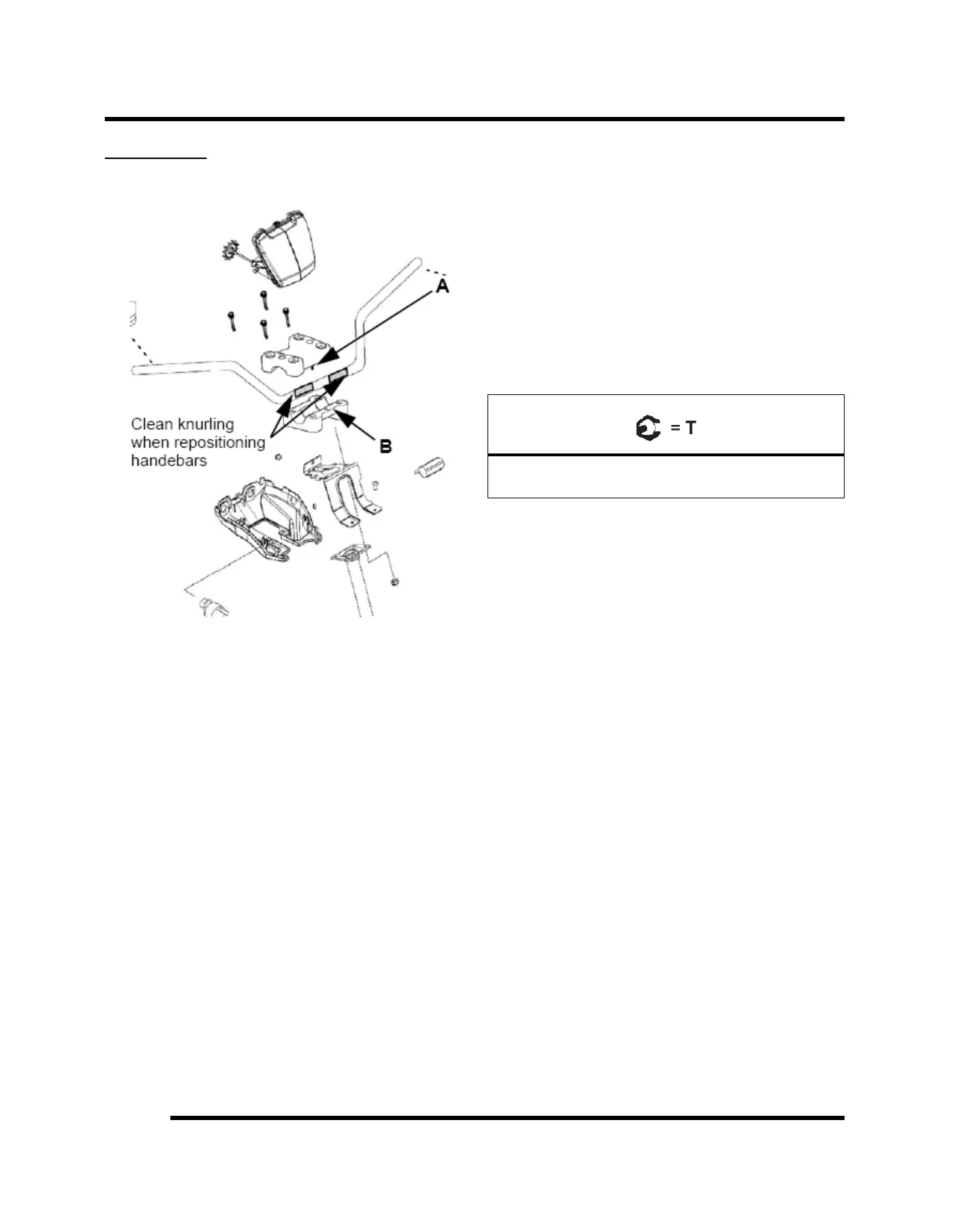

Handlebar Block Installation Procedure 1. The pin (A) on the bottom side of the top handlebar
block faces down and to the front of the ATV.
2. The bottom handle bar block has a side with 3 holes,
the side with 3 holes faces up and to the front of the
ATV.
3. Align the pin (A) in the top block with the middle hole
(B) in the bottom block for proper installation. The pin
(A) and middle hole (B) should face the front of the
ATV.
4. Install the pin side bolts first and evenly tighten the
bolts down. Evenly torque the 2 front bolts to
specification.
Handle Bar Bolt:
14 ft-lbs (19 Nm)
5. Install the rear bolts and tighten evenly. Evenly
torque the 2 rear bolts to specification.
NOTE: There will be a slight gap on the backside
of the blocks after the procedure is performed.
