7.74
9924864 - 2012-2014 SPORTSMAN 800 / 6X6
© Copyright 2013 Polaris Sales Inc.
Assembly

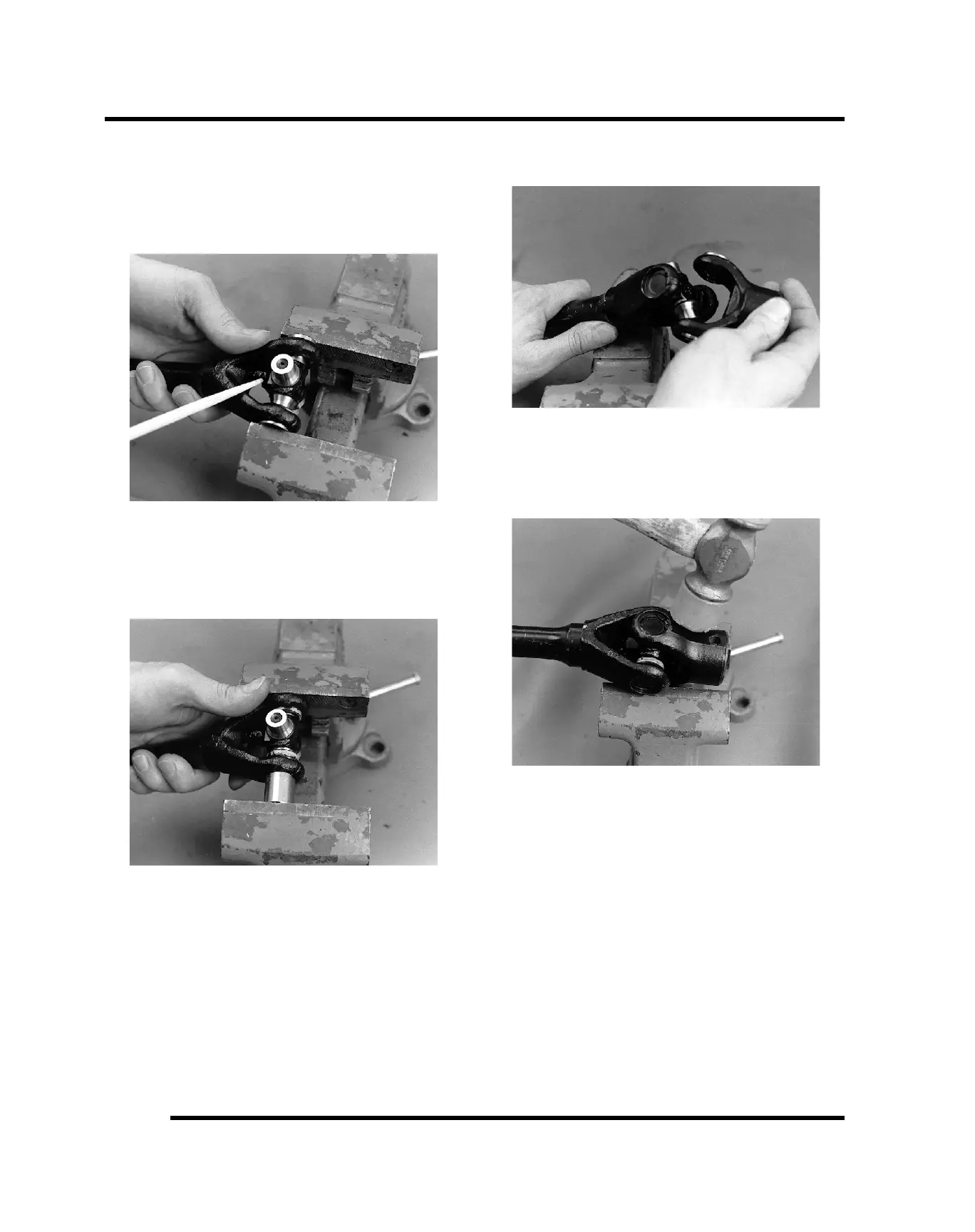

1. Install new bearing caps in yoke by hand. Carefully
install U-joint cross with grease fitting properly
positioned inward toward center of shaft. Take care
not to dislodge needle bearings upon installation of
cross joint. Tighten vise to force bearing caps in.
2. Using a suitable arbor, fully seat bearing cap in one
side. Continually check for free movement of bearing
cross as bearing caps using a suitable arbor, fully
seat bearing cap in one side. Continually check for
free movement of bearing cross as bearing caps are
assembled. are assembled.
3. Install snap ring to contain bearing cap just installed.
Repeat procedure for other side.
4. Install snap ring to contain bearing cap just installed.
Repeat procedure for other side.
5. Install snap ring to contain bearing cap just installed.
Repeat procedure for other side.
6. Seat all bearing caps against snap rings by
supporting cross shaft and tapping on each corner
as shown.
7. When installation is complete, yokes must pivot
freely in all directions without binding. If the joint is
stiff or binding, tap the yoke lightly to center the joint
until it pivots freely in all directions.
FINAL DRIVE
