10.36
9924864 - 2012-2014 SPORTSMAN 800 / 6X6
© Copyright 2013 Polaris Sales Inc.
4. Install the harness assembly into the headlight
assembly. Turn the headlight harness clockwise to
secure the headlamp into place.
Lower Headlamp Housing Removal (if required)
5. Remove the upper and lower portion of the front
bumper as outlined in chapter 5.

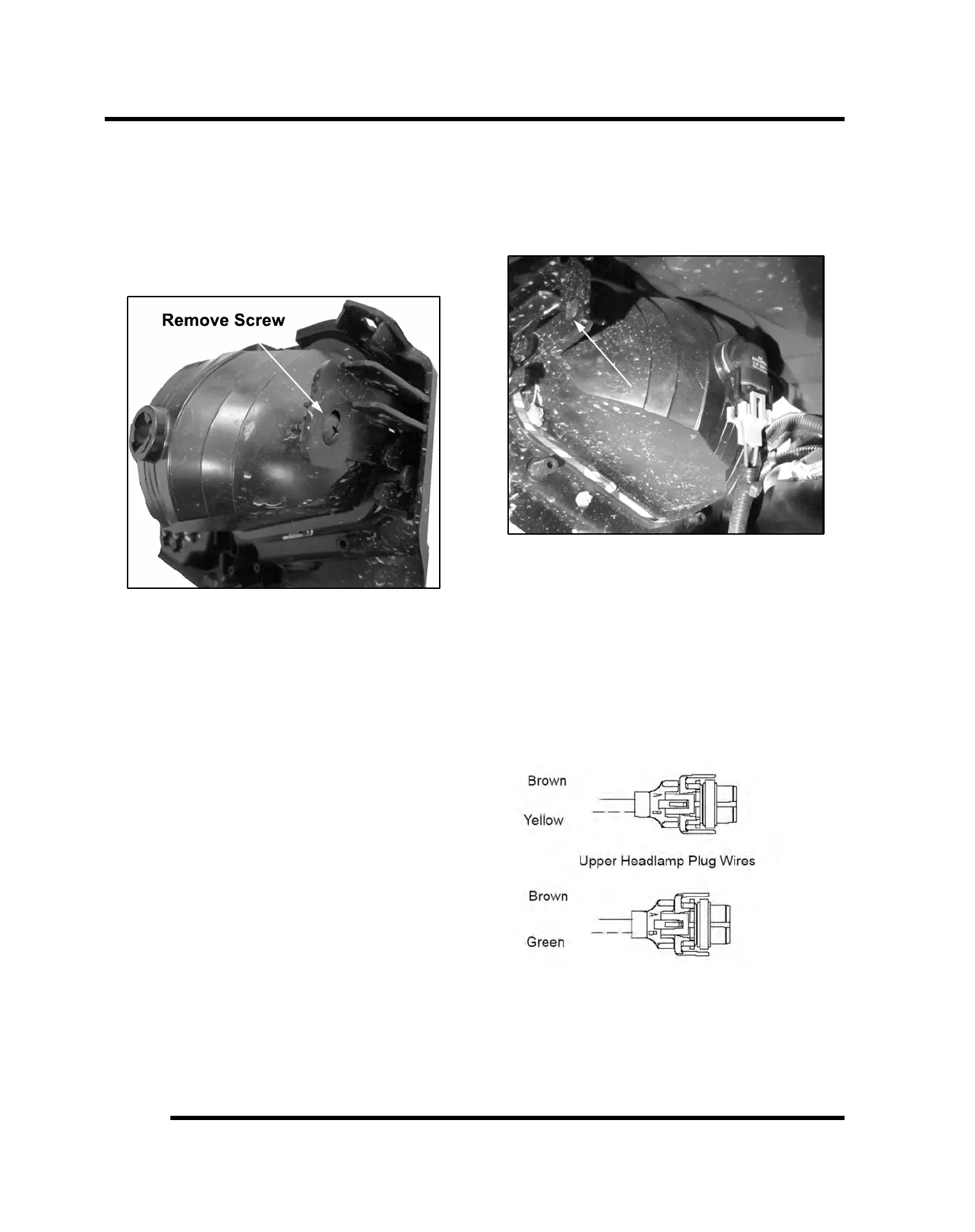

6. Remove the screw that secures the lower headlamp.
7. Remove retaining O-ring from inner headlamp
mount.
8. Pull the headlamp out of the locking tab.
Low Beam Headlight Adjustment
1. The low beam can be adjusted slightly upward or
downward.
2. Loosen the phillips screw located at the rear of the
headlamp.
3. Tilt the headlamp upward or downward.
4. Tighten the screw.
Headlamp Switch Test
1. Remove the headlight pod cover.
2. Set meter to DC Volts and probe the headlamp plug
wires (Brown and Yellow) at back of connector for 12
Volts.
3. Turn ignition and headlight on. If there is no power,
continue with checks to the harness and fuses.
ELECTRICAL
