9924864 - 2012-2014 SPORTSMAN 800 / 6X6
© Copyright 2013 Polaris Sales Inc.

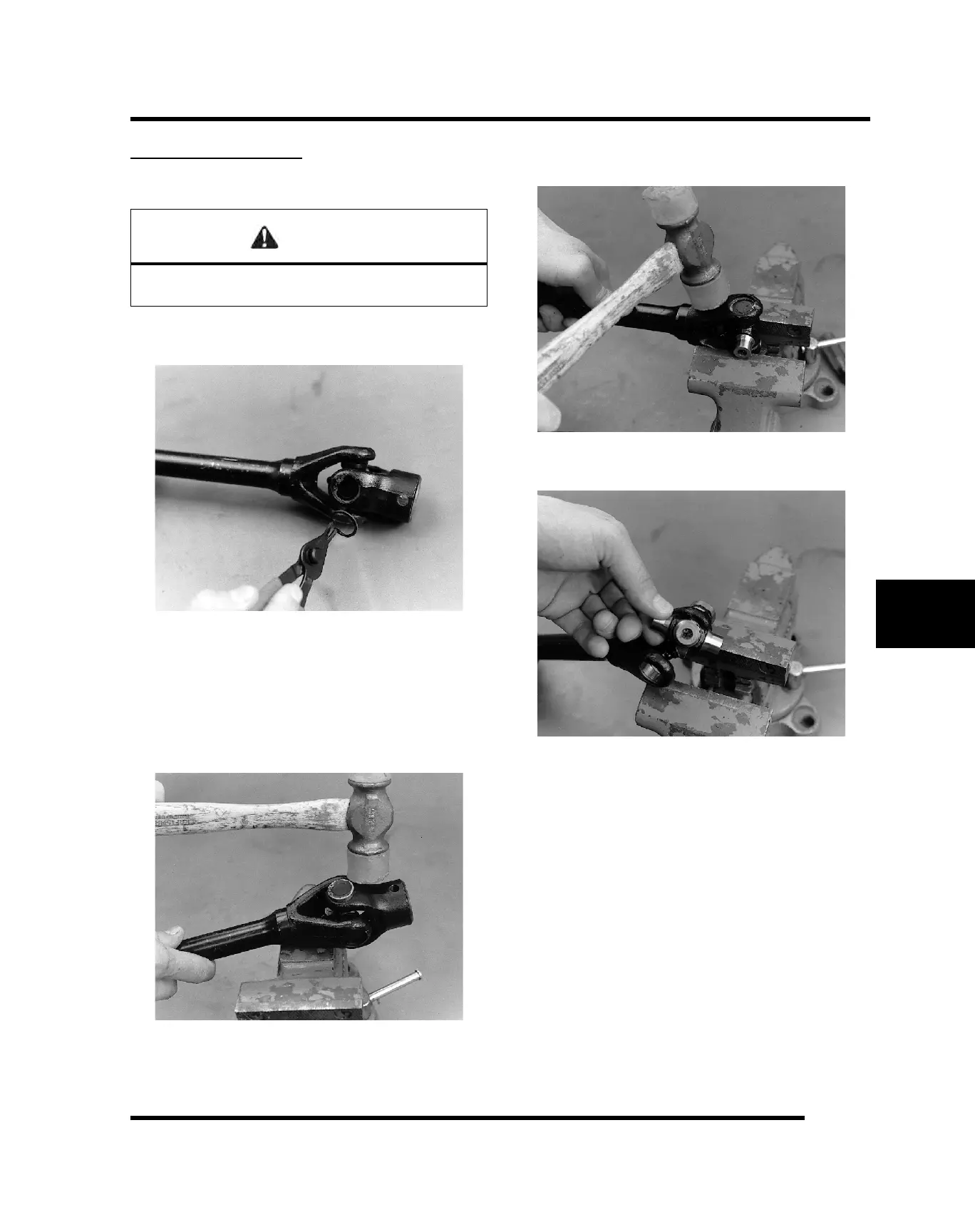

U-JOINT SERVICE
Disassembly
WARNING
Always wear eye protection when working with spring-
tensioned components
1. Remove internal or external snap ring from all
bearing caps.
NOTE: If yoke or bearing is removed, cross
bearing must be replaced. Note orientation of
grease fitting (if equipped) and mark inner and
outer yoke for correct re-positioning during
installation.
2. Support inner yoke as shown and drive outer yoke
down (bearing cap out) with a soft face hammer.
3. Support U-joint in vise as shown and drive inner yoke
down to remove remaining bearing ca
4. Force U-joint cross to one side and lift out of inner
yoke.
