7.38
9924864 - 2012-2014 SPORTSMAN 800 / 6X6
© Copyright 2013 Polaris Sales Inc.

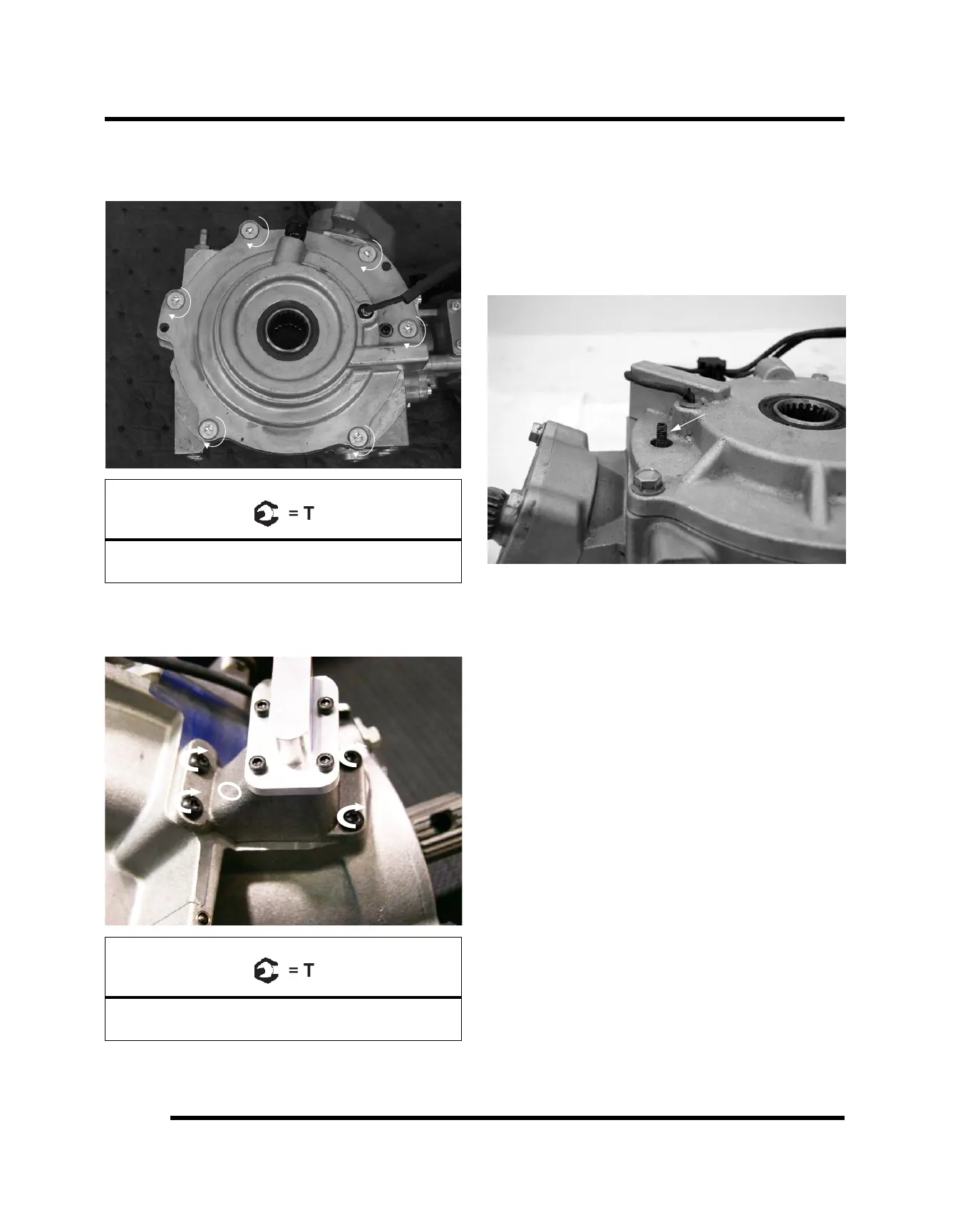

14. Place cover assembly on Install bolts (arrows)
retaining the outer cover plate assembly and torque
to specification.
Input Cover Bolt:
7-11 ft-lbs (9.4-14.9 Nm)
15. Install a new passage o-ring (dotted circle) on the
gearcase and install the piston pump assembly.
Torque the screws to specification.
Pump Assembly Screw:
17-23 in-lbs (1.9-2.5 Nm)
Setting Ring Gear Backlash
NOTE: Ring gear backlash is set at the factory. No
adjustment is required, unless the front cover is
replaced or the back lash pad screw is removed.
1. The backlash screw has locking agent that holds it
into place. Use a heat gun to loosen the locking
agent on the screw.
2. Using a 3/32 hex wrench, turn the back-lash screw
out 3-4 turns. Re-apply Loctite 262 onto the bottom
screw threads.
FINAL DRIVE
