5.2
9924864 - 2012-2014 SPORTSMAN 800 / 6X6
© Copyright 2013 Polaris Sales Inc.
GENERAL INFORMATION
Torque Specifications
COMPONENT
FT-LBS
(IN-LBS)
NM
Front Hub Nut 60 81
Front A-Arm Attaching Bolt
37 50
Front A-Arm Ball Joint Stud Nut 30 41
Handlebar Adjuster Block
14 23
Master Cylinder Clamp Bolt (50)
5.6
Rear Shock Bolt (Upper)
30 41
Rear Shock Bolt (Lower)
30 41
Rear Wheel Hub Nut 80 109
Upper Stabilizer Support Nuts
17 27
Upper Control Arm Mounting Bolt
37 50
Lower Wheel Bearing Carrier Bolt
37 50
Strut Rod Retaining Nut (Top)
15 21
Strut Casting Pinch Bolt
17 27
Tie Rod End Jam Nut
12 17
Tie Rod End Castle Nut 45 61
Tie Rod End Attaching Bolt
24 33
Upper Shock Mounting Bolt
37 50
Lower Shock Mounting Bolt
37 50
NOTE: Refer to exploded views throughout this
chapter for identification and location of
components.
Special Tools
PART NUMBER DESCRIPTION
2870871
Ball Joint Replacement Tool
2870872
Shock Spanner Wrench
2870623
Shock Spring Compression Tool
2871572 Strut Rod Wrench
2871573
LH Strut Spring Compressor
2871574
RH Strut Spring Compressor
2876389 Multi-Function Pliers
Bosch Automotive Service Solutions: 1-800-345-2233 or
http://polaris.service-solutions.com/

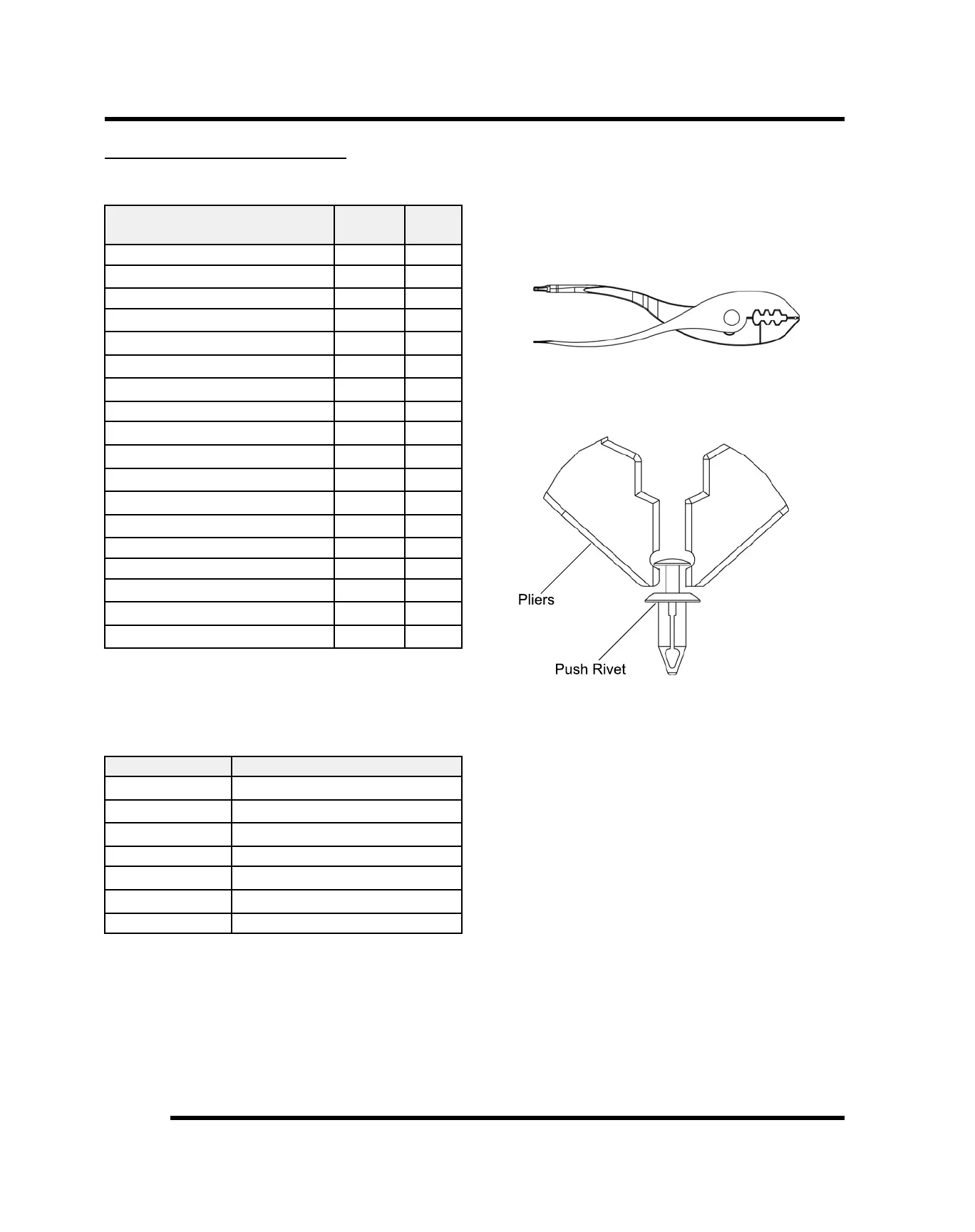

Multi-Function Pliers
Included in the tool kit, the multi-function pliers is
designed to remove the plastic push rivets used to fasten
body components.
BODY / STEERING / SUSPENSION
