Clutch Assembly

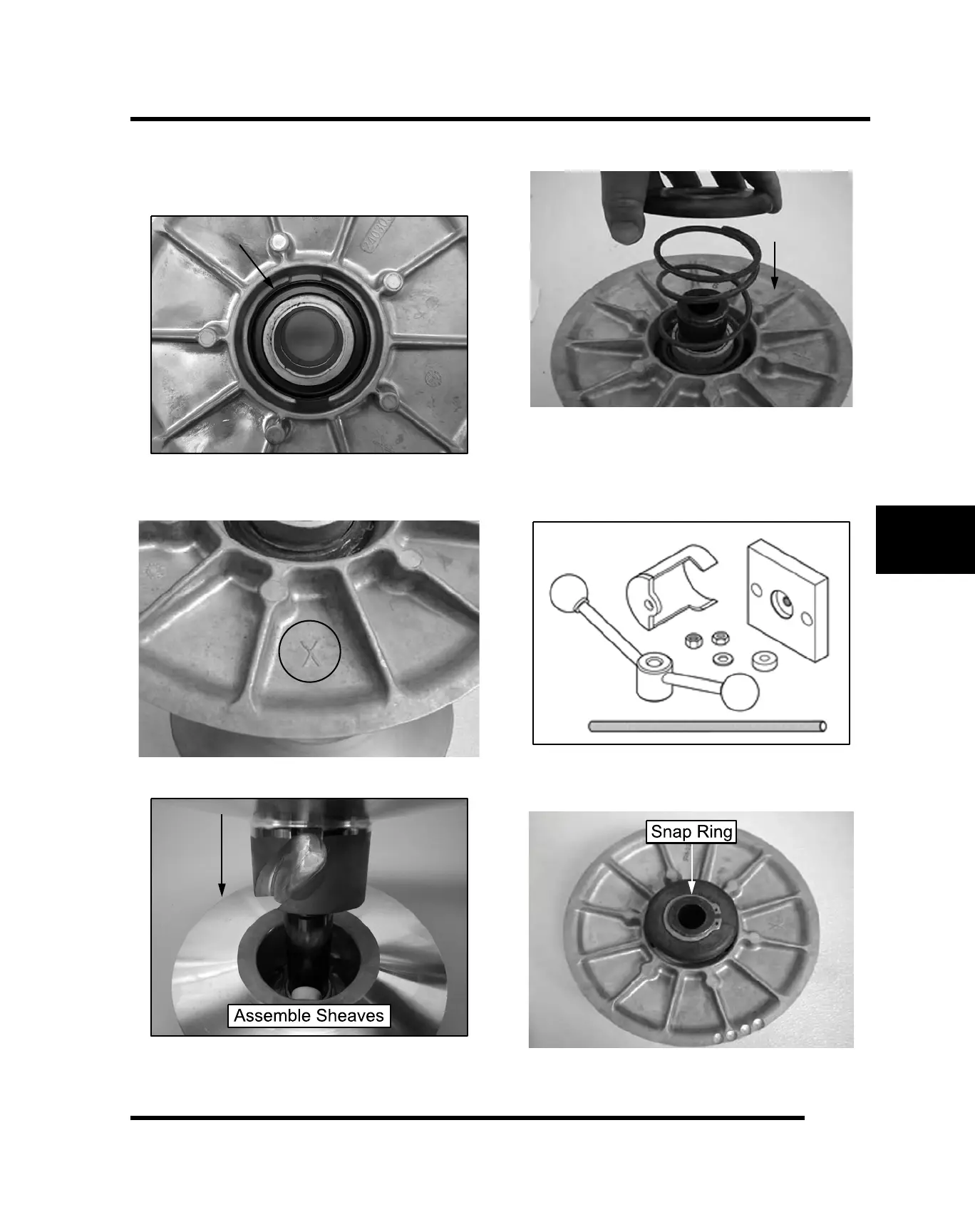

1. Install the inner spring retainer if removed. Do not
apply oil or grease to the bearings.
2. Align the “X” marks on each of the sheaves during
reassembly.
3. Install spring into inner retainer.
4. Install outer retainer on top of spring.
5. Place the clutch into the Universal Clutch
Compressor Tool PU-50518. Press down on the top
of the spider assembly, pushing the spider onto the
shaft. Install snap ring (A) and slowly release the
assembly.
6. Compress the outer retainer and install the snap
ring.
