Reflex Fillcontrol Plus Compact Original Operating Manual

Description of the device
Fillcontrol Plus Compact — 03.05.2022 - Rev. D English —
13
4 Description of the device
4.1 Description
The device enables controlled and safe filling and make-up of heating and
cooling water systems with fresh mains water as required by DIN EN 1717. The
built-in "BA" system isolator (to DIN EN 12729) prevents the return-flow of
system water from heating or cooling water circuits into the mains water system.
This device is approved for connection between the mains water system and
heating or cooling water circuits in accordance with DIN EN 12828.

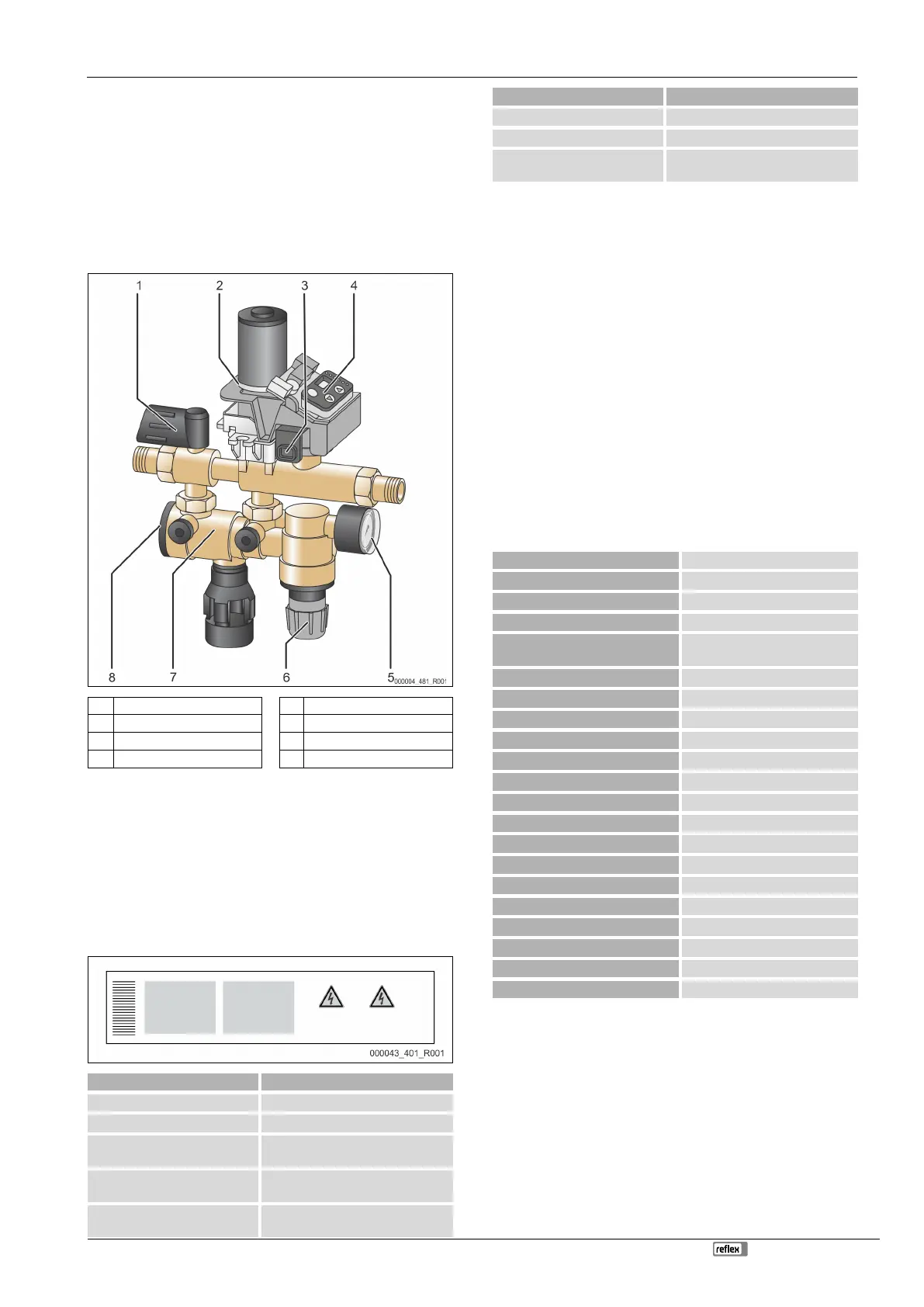

4.2 Overview
1 Shut-off 5 Pressure gauge
2 Motor ball valve 6 Pressure reducer
3
Pressure sensor
7
System isolator
4 Controller, operator panel 8 System isolator lock
The device consists of a shut-off valve, a system isolator, a dirt trap, a pressure
sensor, a motorised ball valve, a pressure reducer with a control pressure gauge
and a controller. The pressure reducer has a setting range between 0.5 and 5 bar.
The housing is fashioned from hot-pressed brass. The interior components and
the drain funnel are made from high-quality synthetic and elastomer (EPDM).
4.3 Identification
4.3.1 Nameplate
The nameplate provides information about the manufacturer, the year of
manufacture, the manufacturing number and the technical data.
Information on the type plate
Meaning
Type Device name
Serial No. Serial number
Min. / max. allowable pressure PS
Minimum/maximum permissible
pressure
Max. allowable flow temperature of
system
Maximum permissible flow temperature
of the system
Min. / max. working temperature
TS
Min./max. operating temperature (TS)
Information on the type plate
Meaning
Year of manufacture Year of manufacture
Max. system pressure Max. system pressure
Min. operating pressure set up on
site
Minimum operating pressure, set on
site
4.4 Scope of delivery
The scope of delivery is described in the shipping document and the content is
shown on the packing.
Basic equipment for the make-up valve:
• The device
• Operating manual
• Power supply
• Threaded connection joint
• Pressure gauge
4.5 Optional equipment and accessories
The following optional equipment and accessories are available for this device:
• "FQIRA+" contact water meter.
• Softening with Reflex "Fillsoft".
• Reflex "FE" pressure sensor

Note!
Separate operating instructions are supplied with accessories.
5 Technical data
Permissible ambient temperature > 0 – 45 °C
Degree of protection IP 54
Noise level 55 dB
Electric output 350 W
Power supply
230 V/ 50 Hz (2m connecting cable
with power adapter and plug)
Fusing 4 A
Weight 3.0 kg
Height 304 mm
Width 240 mm
Depth 91 mm
Inlet connection RP ½“
Outlet connection RP ½“
Make-up output ≤ 500 l/h
Max. supply pressure 10 bar
Min. inlet pressure P
0
+ 1.3 bar
Max. delivery pressure ≤ 1.5 bar
Permissible gauge operating pressure 10 bar
Permissible operating temperature
70 °C
Flow medium Potable water
Permissible min. operating pressure P
0
1 - 4.5 bar (1.5 bar factory-set)
Outlet pressure (pressure reducer) 0.5 - 5 bar (3.0 bar factory-set)
Floating output (changeover contact) for group alarm, max. contact load 230 V
2 A
