RL78/G13 CHAPTER 3 CPU ARCHITECTURE
R01UH0146EJ0100 Rev.1.00 152
Sep 22, 2011
3.3.3 Table indirect addressing
[Function]
Table indirect addressing specifies a table address in the CALLT table area (0080H to 00BFH) with the 5-bit
immediate data in the instruction word, stores the contents at that table address and the next address in the program
counter (PC) as 16-bit data, and specifies the program address. Table indirect addressing is applied only for CALLT
instructions.
In the RL78 microcontrollers, branching is enabled only to the 64 KB space from 00000H to 0FFFFH.

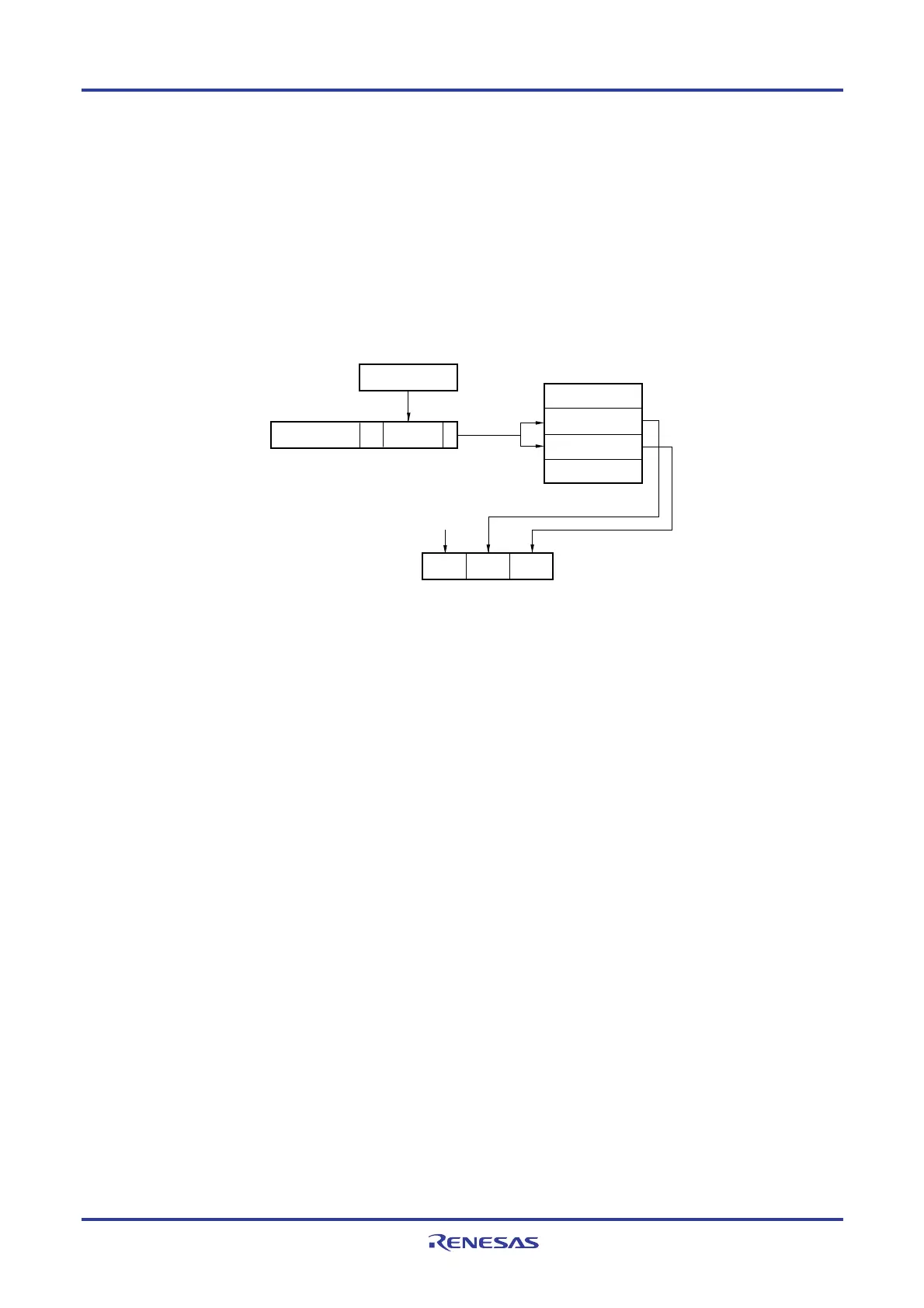

Figure 3-31. Outline of Table Indirect Addressing
Low Addr.
High Addr.
0
0000
OP code
00000000 10
Table address
PC
S
PC PC
H
PC
L
Memory
<R>
