RL78/G13 CHAPTER 16 INTERRUPT FUNCTIONS
R01UH0146EJ0100 Rev.1.00 849
Sep 22, 2011
16.4.4 Interrupt request hold
There are instructions where, even if an interrupt request is issued while the instructions are being executed, interrupt
request acknowledgment is held pending until the end of execution of the next instruction. These instructions (interrupt
request hold instructions) are listed below.
• MOV PSW, #byte
• MOV PSW, A
• MOV1 PSW. bit, CY
• SET1 PSW. bit
• CLR1 PSW. bit
• RETB
• RETI
• POP PSW
• BTCLR PSW. bit, $addr20
• EI
• DI
• SKC
• SKNC
• SKZ
• SKNZ
• SKH
• SKNH
• Manipulation instructions for the IF0L, IF0H, IF1L, IF1H, IF2L, IF2H, IF3L, MK0L, MK0H, MK1L, MK1H, MK2L,
MK2H, MK3L, PR00L, PR00H, PR01L, PR01H, PR02L, PR02H, PR03L, PR10L, PR10H, PR11L, PR11H, PR12L,
PR12H, and PR13L registers
Caution The BRK instruction is not one of the above-listed interrupt request hold instructions. However, the
software interrupt activated by executing the BRK instruction causes the IE flag to be cleared.
Therefore, even if a maskable interrupt request is generated during execution of the BRK instruction,
the interrupt request is not acknowledged.
Figure 16-11 shows the timing at which interrupt requests are held pending.

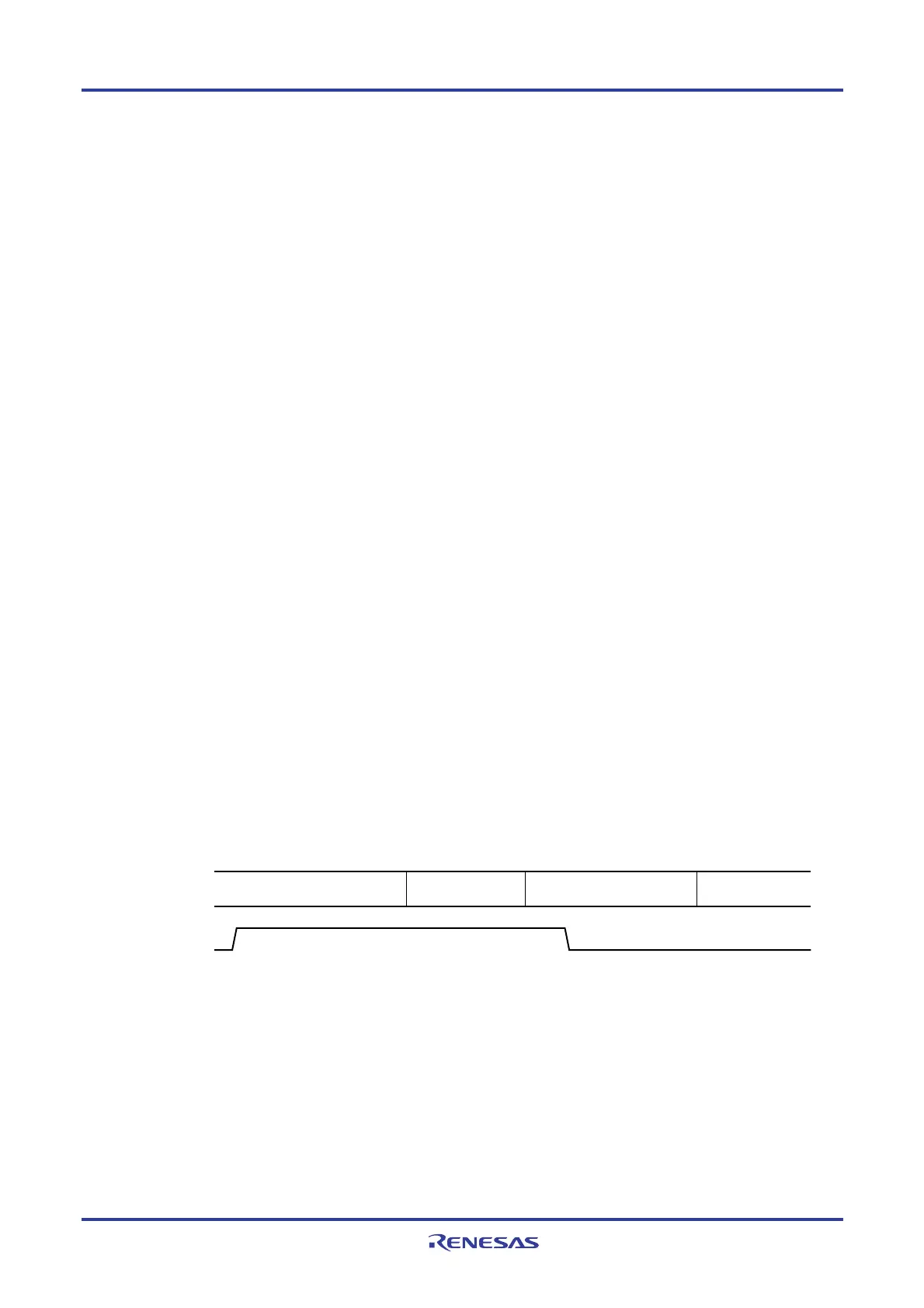

Figure 16-11. Interrupt Request Hold
Instruction N Instruction M
PSW and PC saved, jump
to interrupt servicing
Interrupt servicing
program
CPU processing
××IF
Remarks 1. Instruction N: Interrupt request hold instruction
2. Instruction M: Instruction other than interrupt request hold instruction
