RL78/G13 CHAPTER 1 OUTLINE

R01UH0146EJ0100 Rev.1.00 6

Sep 22, 2011

1.3 Pin Configuration (Top View)

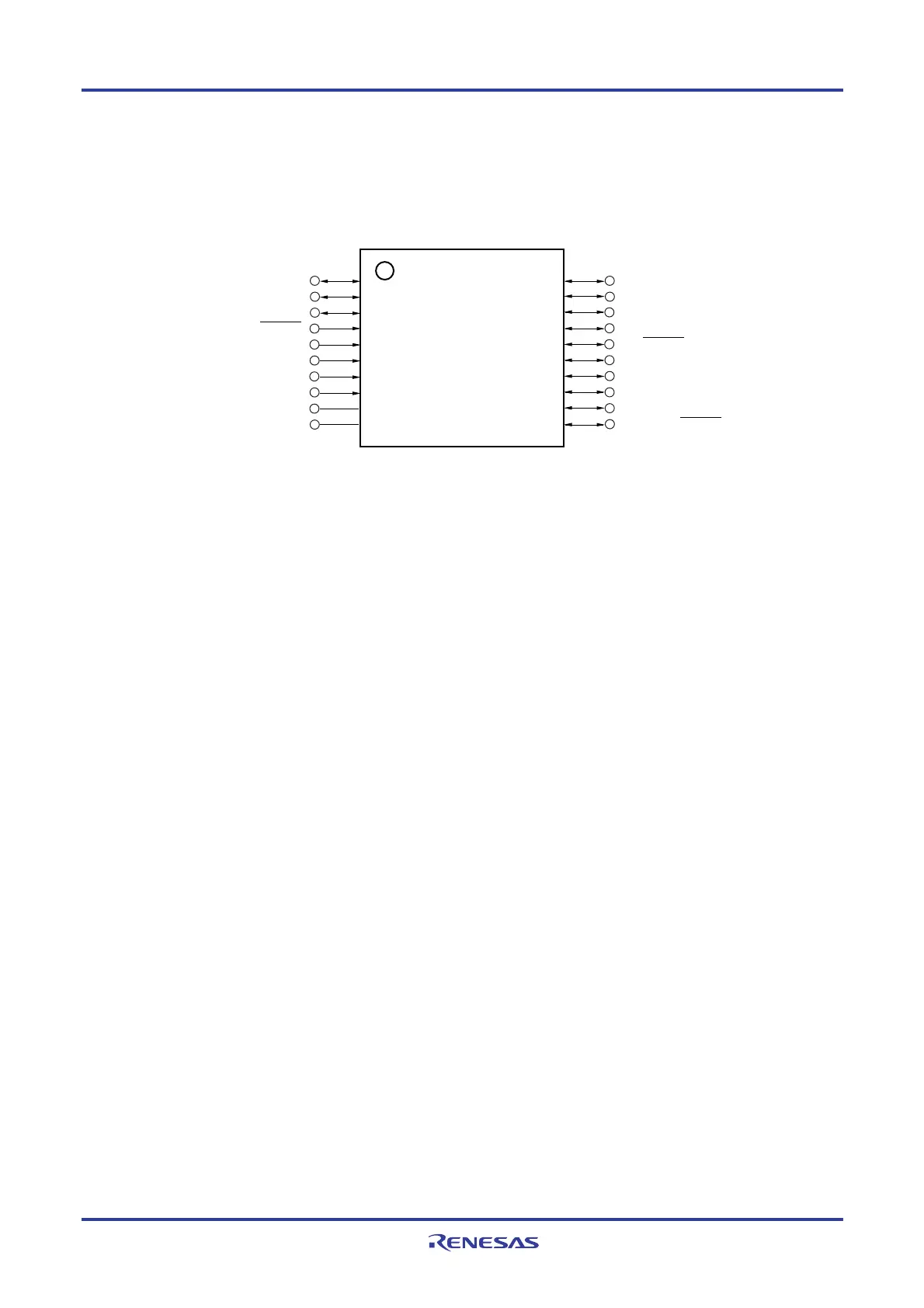

1.3.1 20-pin products

• 20-pin plastic SSOP (7.62 mm (300))

P20/ANI0/AVREFP

P21/ANI1/AVREFM

P22/ANI2

P147/ANI18

P10/SCK00/SCL00

P11/SI00/RxD0/TOOLRxD/SDA00

P12/SO00/TxD0/TOOLTxD

P16/TI01/TO01/INTP5/SO11

P17/TI02/TO02/SI11/SDA11

P30/INTP3/SCK11/SCL11

P01/ANI16/TO00/RxD1

P00/ANI17/TI00/TxD1

P40/TOOL0

RESET

P137/INTP0

P122/X2/EXCLK

P121/X1

REGC

VDD

Caution Connect the REGC pin to Vss via a capacitor (0.47 to 1

F).

Remark For pin identification, see 1.4 Pin Identification.
