RL78/G13 CHAPTER 4 PORT FUNCTIONS

R01UH0146EJ0100 Rev.1.00 219

Sep 22, 2011

For example, figures 4-39 to 4-41 show block diagrams of port 8 for 128-pin products when PIOR = 00H.

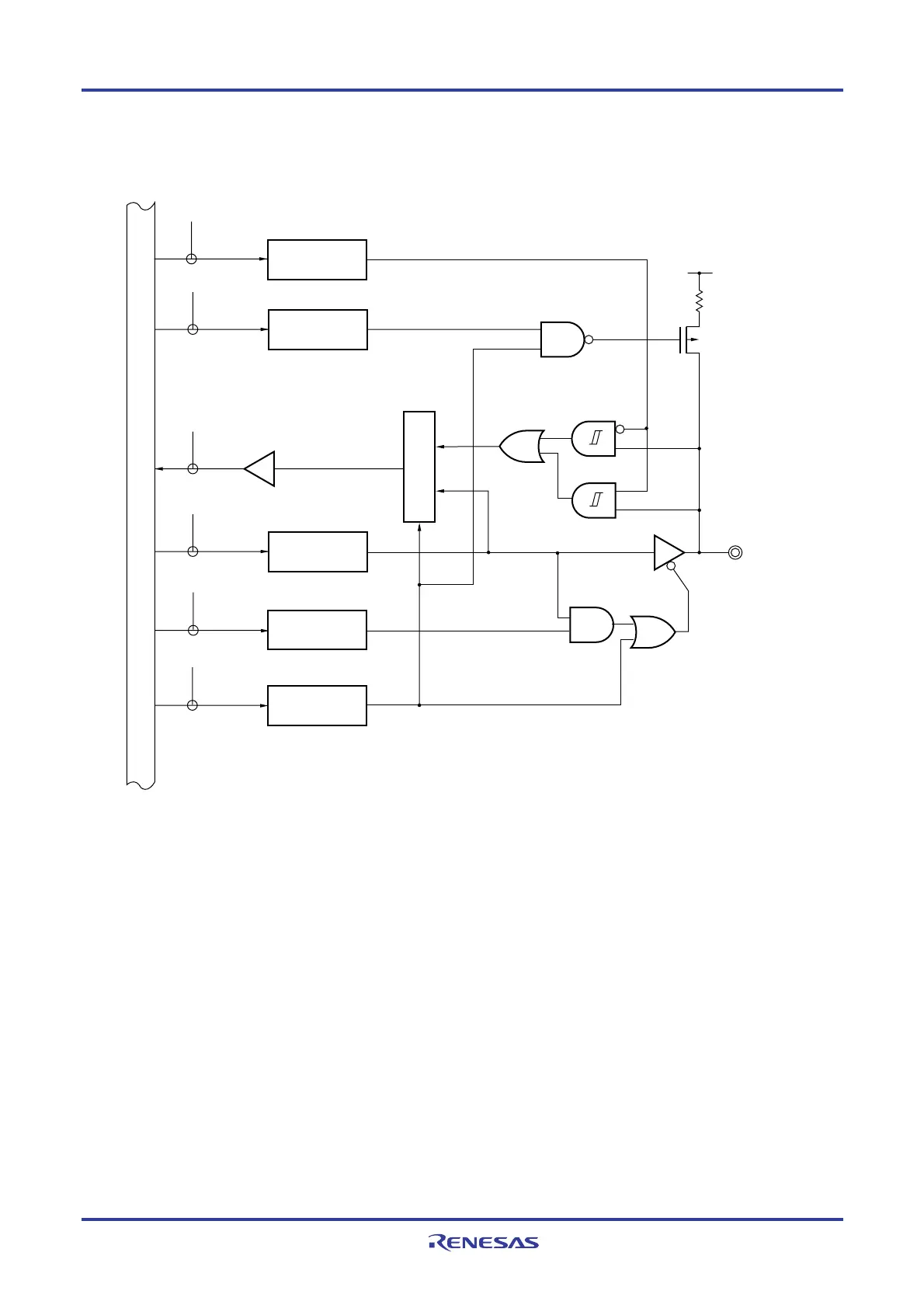

Figure 4-39. Block Diagram of P80, P81

P80, P81

PORT

PU80, PU81

P-ch

PU8

PM8

POM80, POM81

POM8

POM

PM80, PM81

CMOS

TTL

PIM8

PIM80, PIM81

PIM

Output latch

(P80, P81)

Selector

Internal bus

P8: Port register 8

PU8: Pull-up resistor option register 8

PM8: Port mode register 8

PIM8: Port input mode register 8

POM8: Port output mode register 8

RD: Read signal

WR××: Write signal

<R>
