Inside
3
1
Inside

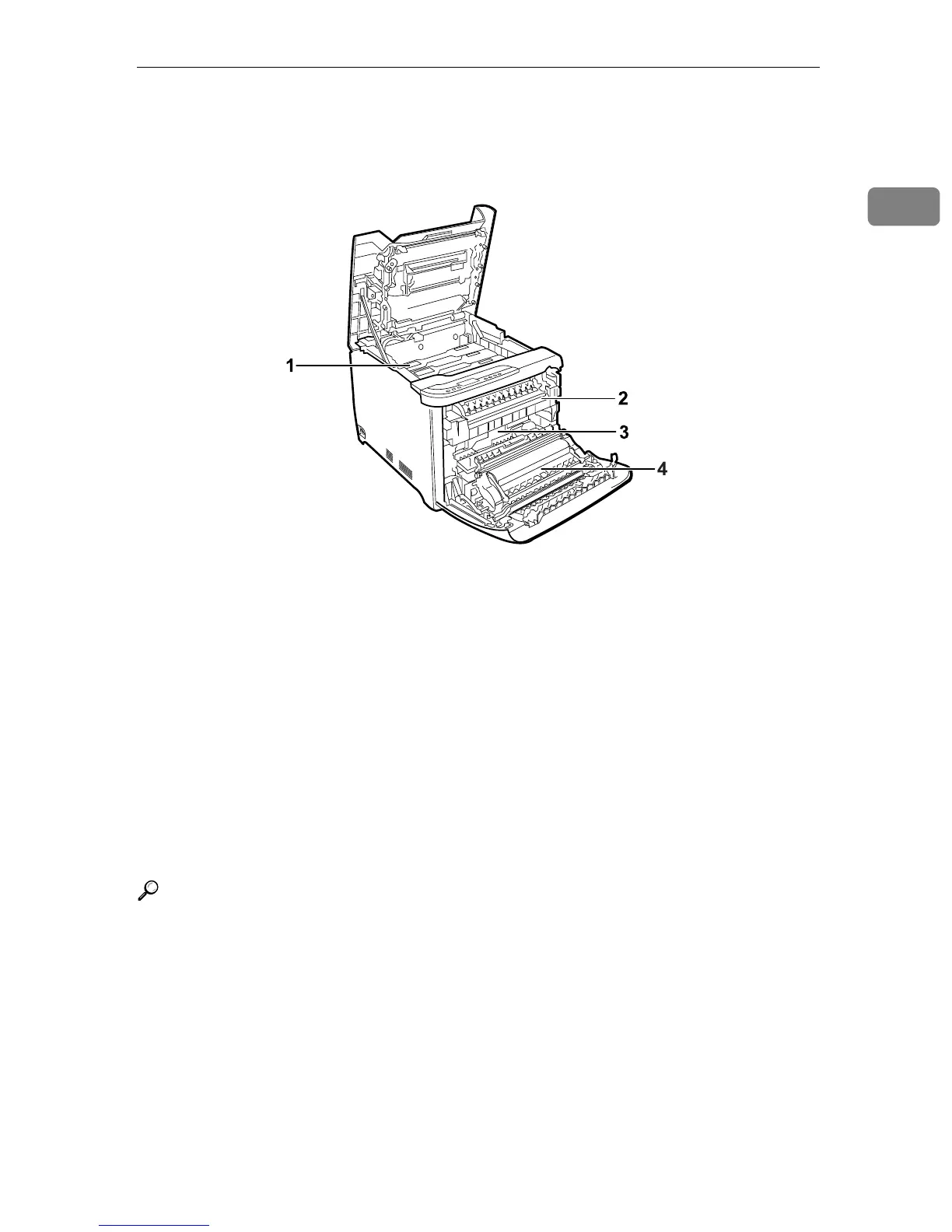

1. Print Cartridge
Loads from the printer rear, in the order
of cyan (C), magenta (M), yellow (Y), and
black (K).
If the following message appears on the
control panel, replace the print cartridge:
“Replace (Color) Print Car-
tridge”
2. Fusing Unit
Fuses toner to the paper.
You might have to handle this unit to
check for or remove jammed paper.
3. Waste Toner Bottle
Collects toner that is wasted during
printing.
If the following message appears on the
control panel, replace the waste toner
bottle:
“Replace Waste Toner”
4. Transfer unit
Remove this unit when replacing the
waste toner bottle, intermediate transfer
unit.
Reference
For details about the messages which appear on the screen to prompt you to
replace the units, see p.93 “Error & Status Messages on the Control Panel”.
ASH151S
