4.10.1 Cleaning the Paper Feed Path in the Wide LCT (Trays 3-5)
Clean the guide board and paper feed rollers in the wide LCT.
The procedure is explained using Tray 3 as an example.
The procedure is the same for Trays 4 and 5.
1. Open the wide LCT front cover.
2. Pull open the top tray (Tray 3) until it stops. If there is any paper in the tray,
remove it.

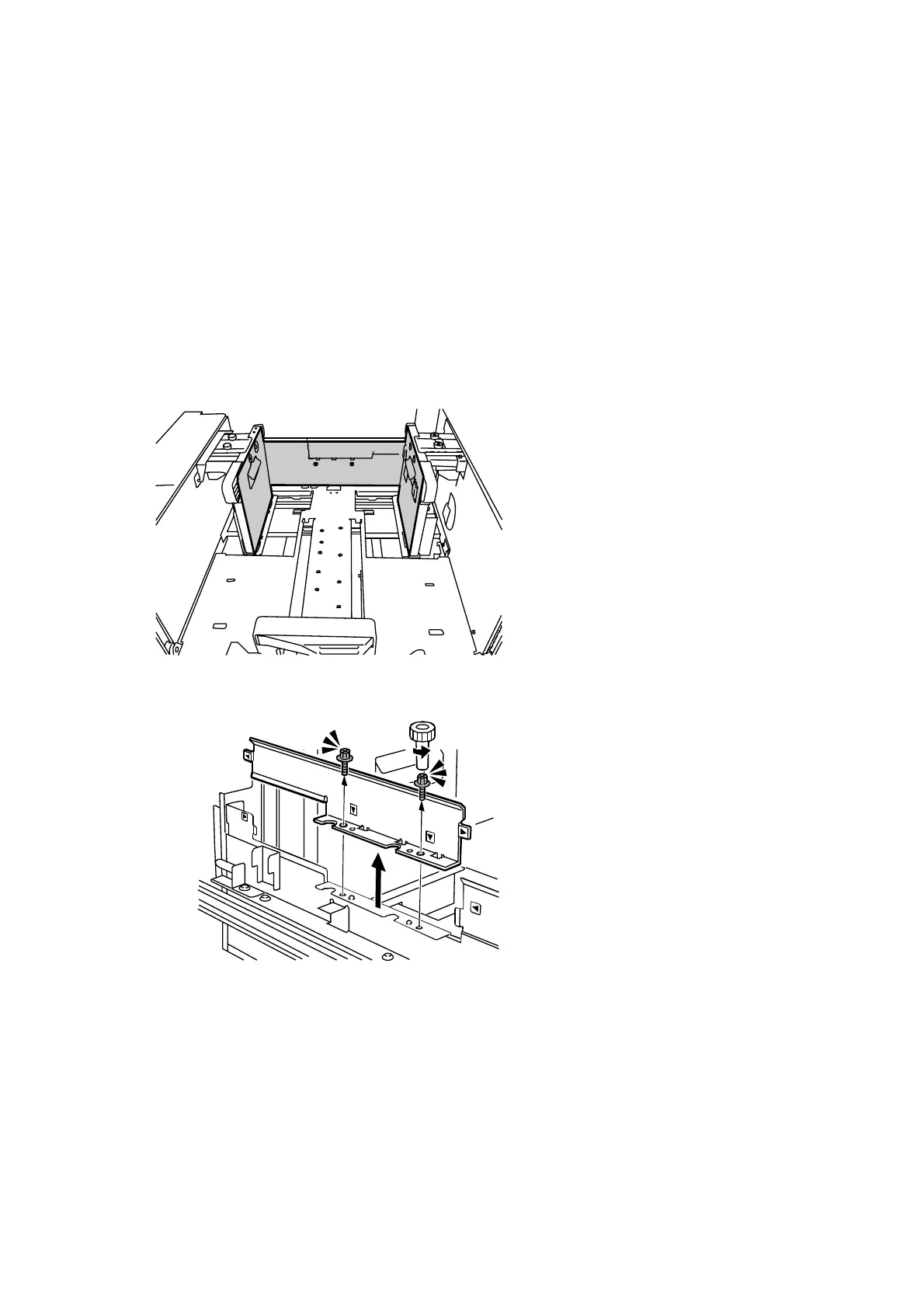

3. Clean the side fences and front guide.
CEZ502
4. Remove the two black screws on the side plate, and then remove the plate.
CEZ203
To Next Page
