5.2.2 Folding Deviation
Cause:
Depending on paper hardness, folding deviations (skewed folding) may appear.
A deviation may appear if the edge dimensions of the parts between folds are
different.
For example, in the following illustration, the dimensional difference between the
top (L2[2]) and bottom (L2[1]) edges is a deviation.

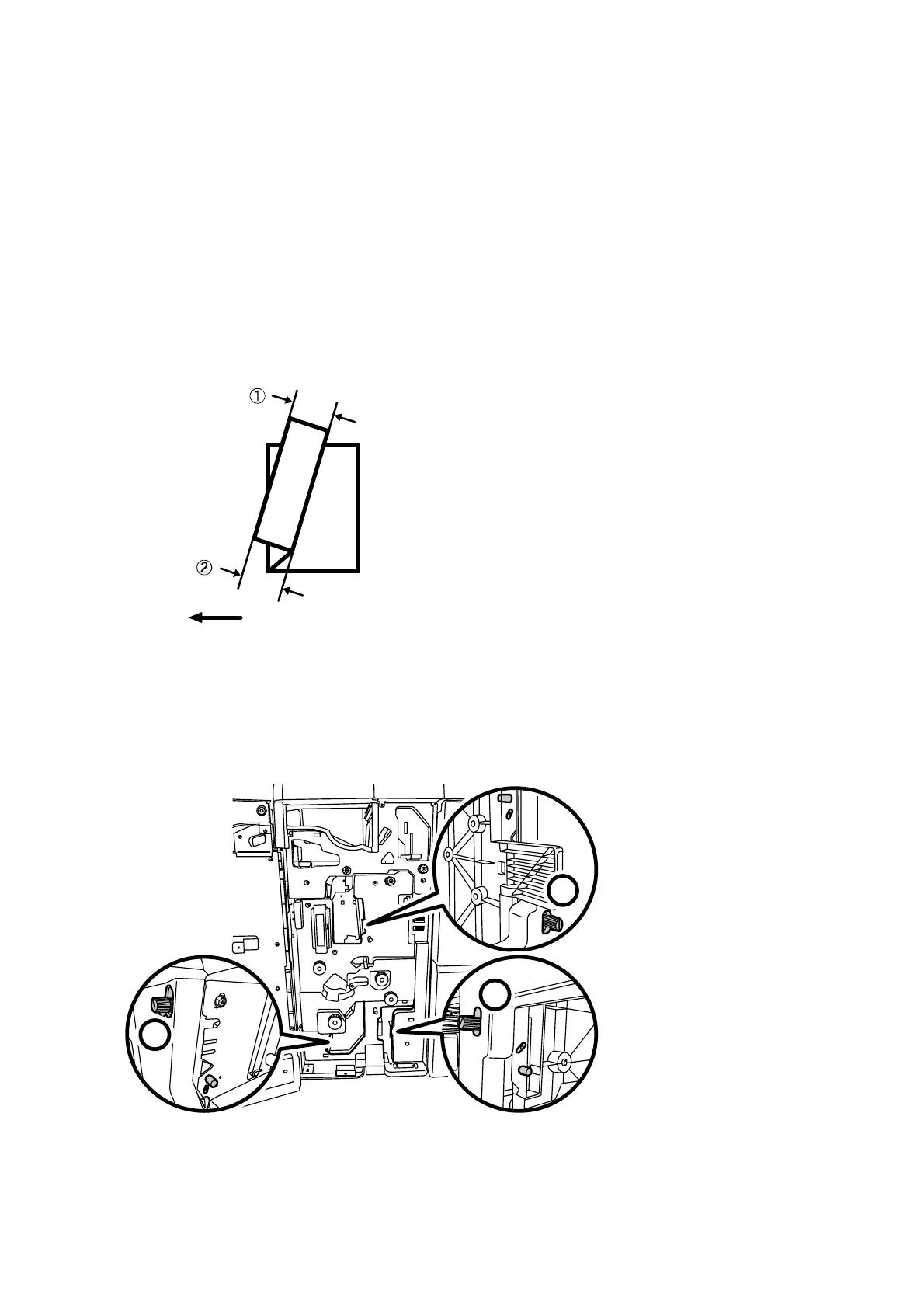

<Folding deviation sample of L2 for Z-fold>
L2
L2
Paper feed direction
CEZ531
Solution:
Adjust the deviation.
The multi-folding unit has three adjusting screws (L1, L2, and L3) to adjust
deviation.
L3
L1
L2
CEZ509
