Sartorius combics 1 Service Manual

85

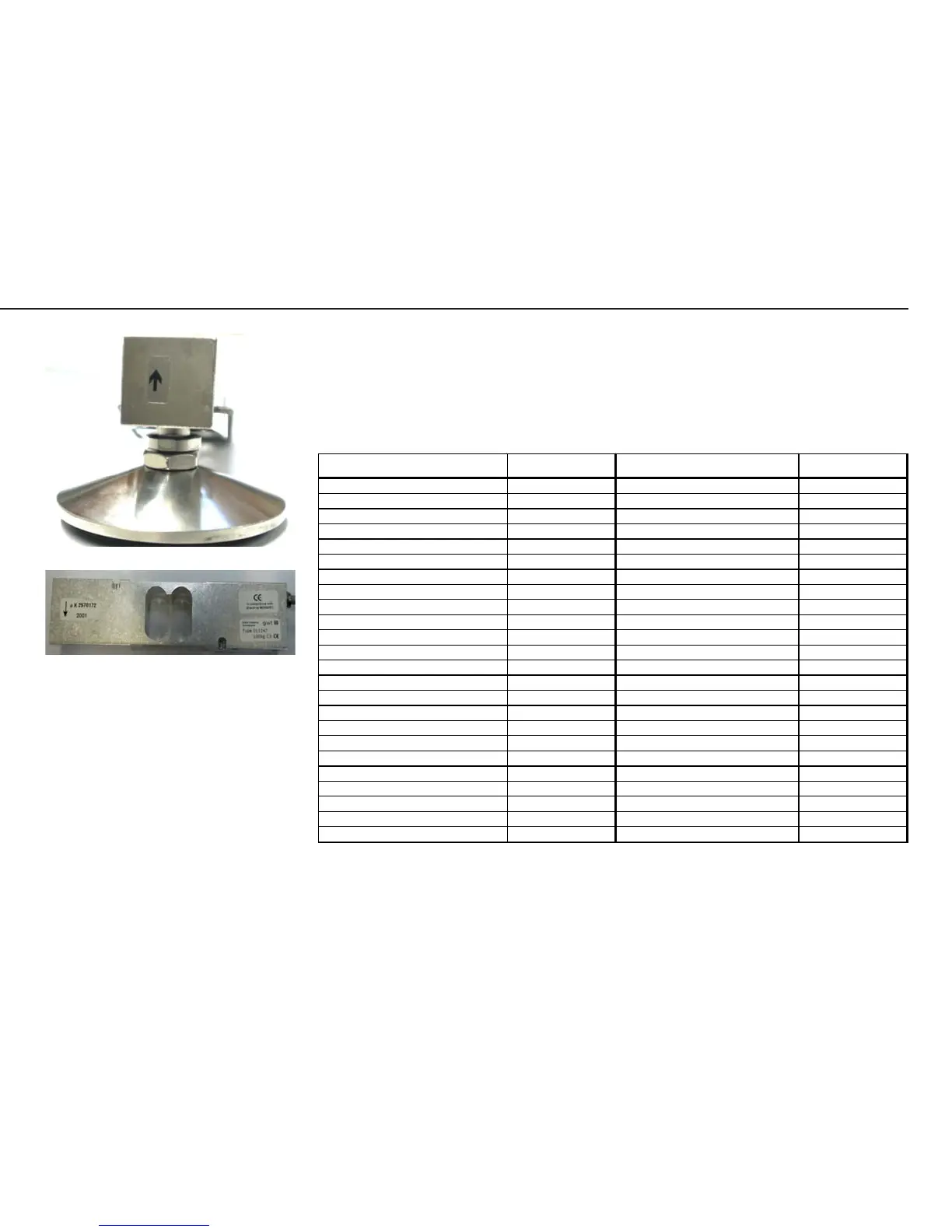

– When installing the new load cell, make sure any arrow (see the illustration on
the left) always points in the movement of the load cell.
– Tighten the load cells with the required torque.
Torque Values
– After replacing load cells, you need to check the overload stops and adjust
them if necessary (see page 77-80).
Lad cell designation Torque Lad cell designation Torque
GW T Type 011231/550 C3 130Nm GW T Type 011296/50 C3 10Nm
GW T Type 011232/1100 C3 130Nm GWT Type 011297/100 C3 10Nm
GW T Type 011233/1760 C3 130Nm GWT Type 011298/200 C3 20Nm
GW T Type 011241/7,5 C3 10Nm GW T Type 011299/7,5 C3 10Nm
GW T Type 011242/15 C3 10Nm GW T Type 011300/15 C3 10Nm
GW T Type 011243/30 C3 10Nm GW T Type 011301/30 C3 10Nm
GW T Type 011244/50 C3 10Nm GW T Type 011302/50 C3 10Nm
GW T Type 011245/100 C3 14Nm GW T Type 011303/100 C3 10Nm
GW T Type 011246/50 C3 14Nm GW T Type 011304/200 C3 20Nm
GW T Type 011247/100 C3 14Nm GW T Type 011305/50 C3 35Nm
GW T Type 011248/200 C3 14Nm GW T Type 011306/100 C3 35Nm
GW T Type 011249/100 C3 35Nm GW T Type 011307/200 C3 35Nm
GW T Type 011250/200 C3 35Nm GW T Type 011308/500 C3 35Nm
GW T Type 011251/50 C3 35Nm GW T Type 011309/550 C3 130Nm
GW T Type 011252/150 C3 35Nm GW T Type 011310/1100 C3 130Nm
GW T Type 011253/250 C3 35Nm GW T Type 011311/1760 C3 130Nm
GW T Type 011272/50 C3 35Nm GW T Type 011461/ 20kg 35Nm
GW T Type 011273/100 C3 35Nm GW T Type 011462/ 500lb 130Nm
GW T Type 011274/200 C3 35Nm GW T Type 011463/ 1250lb 130Nm
GW T Type 011275/500 C3 35Nm GW T Type 011464/ 2500lb 130Nm
GW T Type 011290/500 C3 35Nm GW T Type 011465 / 4000lb 130Nm
GW T Type 011293/7,5 C3 10Nm GW T Type 011466/ 5000lb 130Nm
GW T Type 011294/15 C3 10Nm GW T Type 011467/ 40kg 10Nm
GW T Type 011295/30 C3 10Nm GW T Type 011468/ 635kg 42Nm
Lastz_Drehm.xls
