11.4 Direction of rotation
With the SQM3 actuator, the direction of rotation can be selected on an individual basis.
No. Parameter
602.00
Actuator's direction of rotation
Index 0 = fuel
Setting values:
0 = counterclockwise
1 = clockwise (exclusively for SQM3)
602.01
Actuator's direction of rotation
Index 1 = air
Setting values:
0 = counterclockwise
1 = clockwise (exclusively for SQM3)
0°
0°
Counterclockwise Clockwise

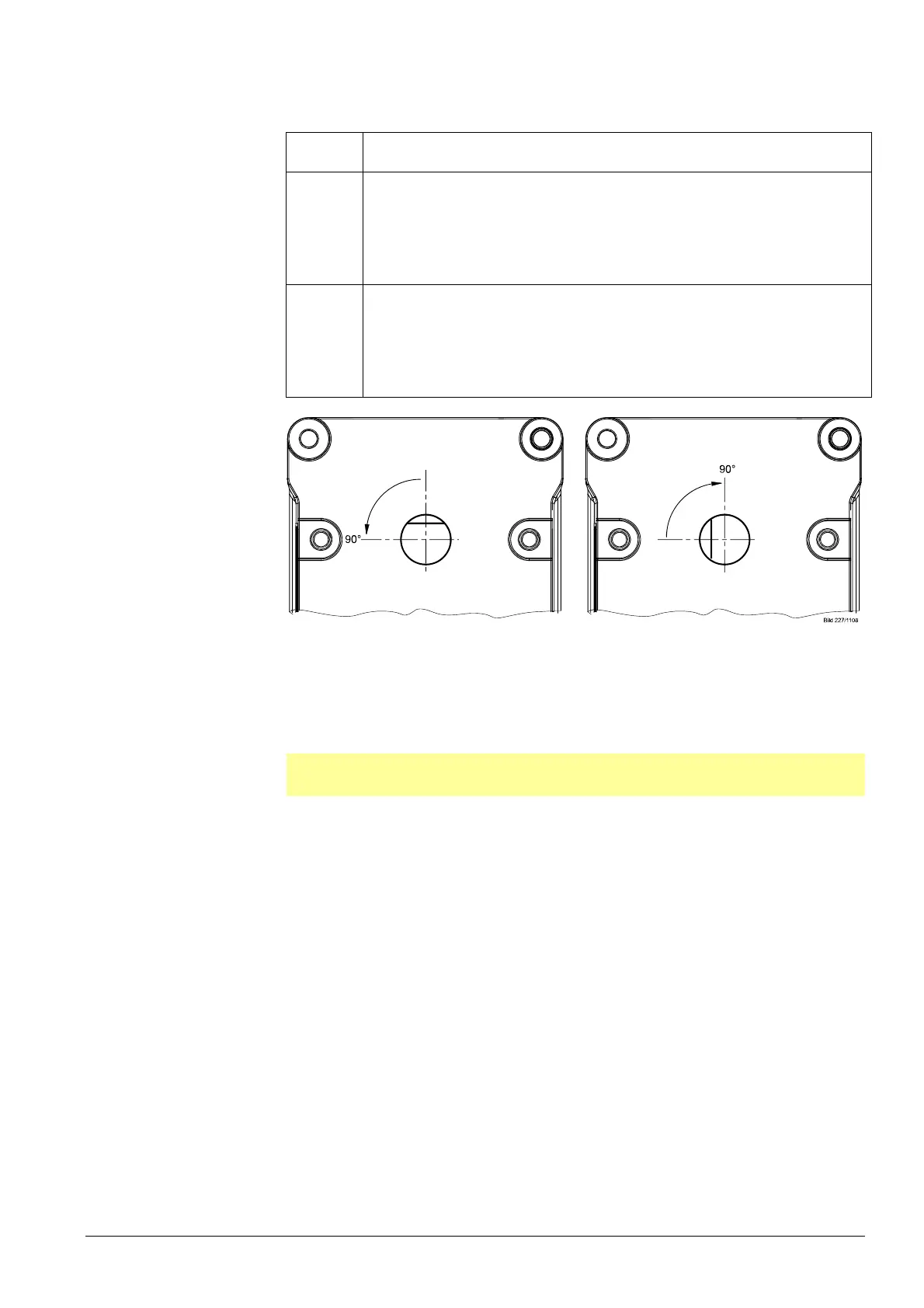

Figure 69: Direction of rotation (example SQM3)
The direction of rotation of the SQN1 actuators depends on the version:
 SQN13: Direction of rotation Left
 SQN14: Direction of rotation Right

Note
The actuators are always supplied with the flat of the drive shaft facing upward.
