17 PC software ACS410
The ACS410 PC software serves primarily as an operating module for the LMV27,
providing the following basic functions:
 Visualization of system state via the following data:
- Parameters
- Process data
 Configuration and parameterization of the LMV27 (individual parameters)
 Backup and recovery of parameter sets

Note
For notes on operation and commissioning, refer to chapter Operation.
X56
OCI410
USB
7541z299/0807
LMV27.100... PC

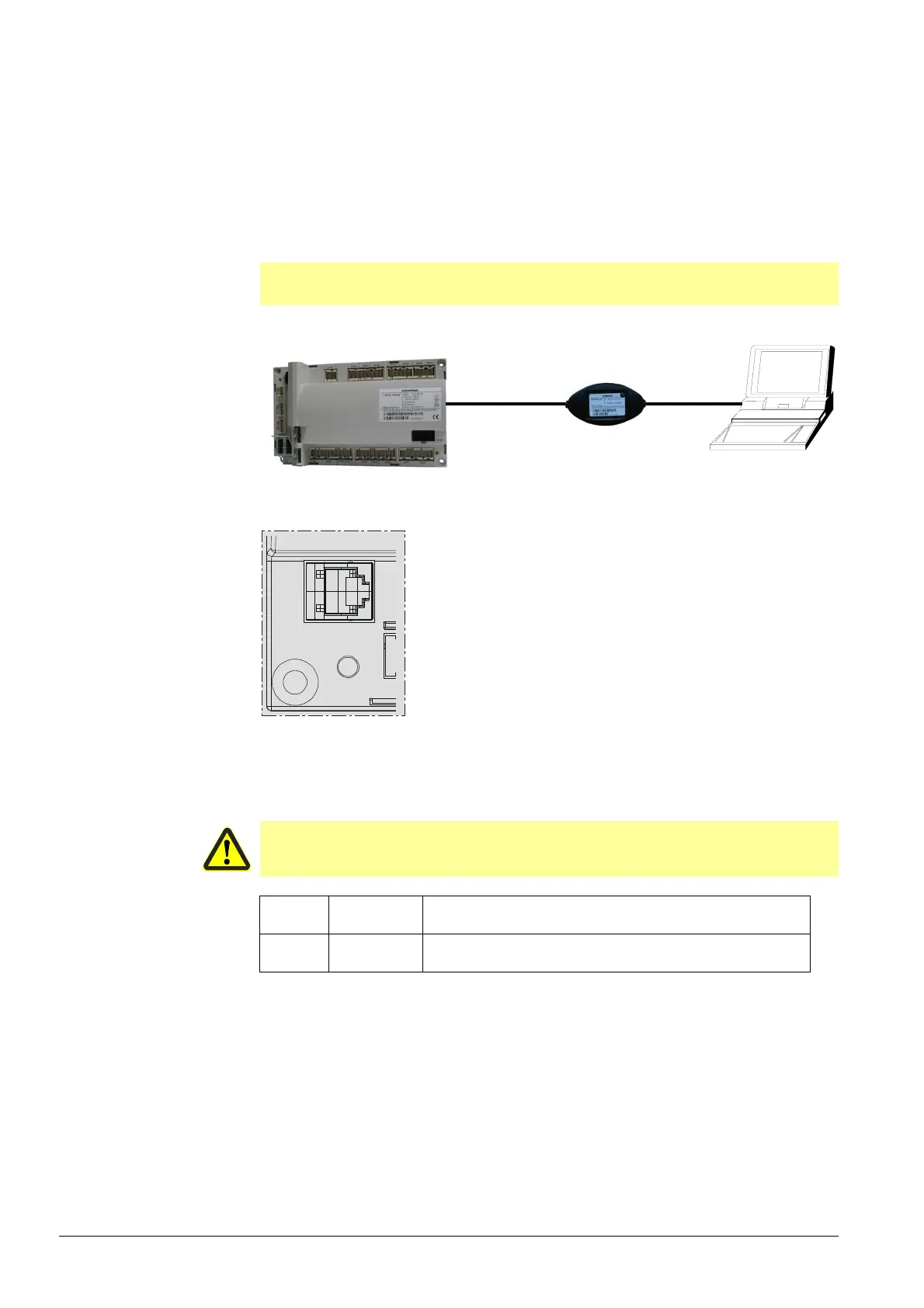

Figure 74: Communication with display / BCI (RJ jack) (X56)
LMV...
Bild 340/0309
BCI
X56
CO
Vx
TXD0
RXD0
GND
Figure 75: Display input BCI (RJ11 jack) X56
If communication between the LMV27 and the ACS410 (70 s) has broken down, the
password level is reset to Info / Service.
Caution!
Interruption of communication between the LMV27 and the ACS410 (30
seconds) during the time the curves are set leads to lockout!
Error
code
Diagnostic
code
Meaning for the LMV27
167 9 Manual locking via ACS410 PC software
communication interruption
