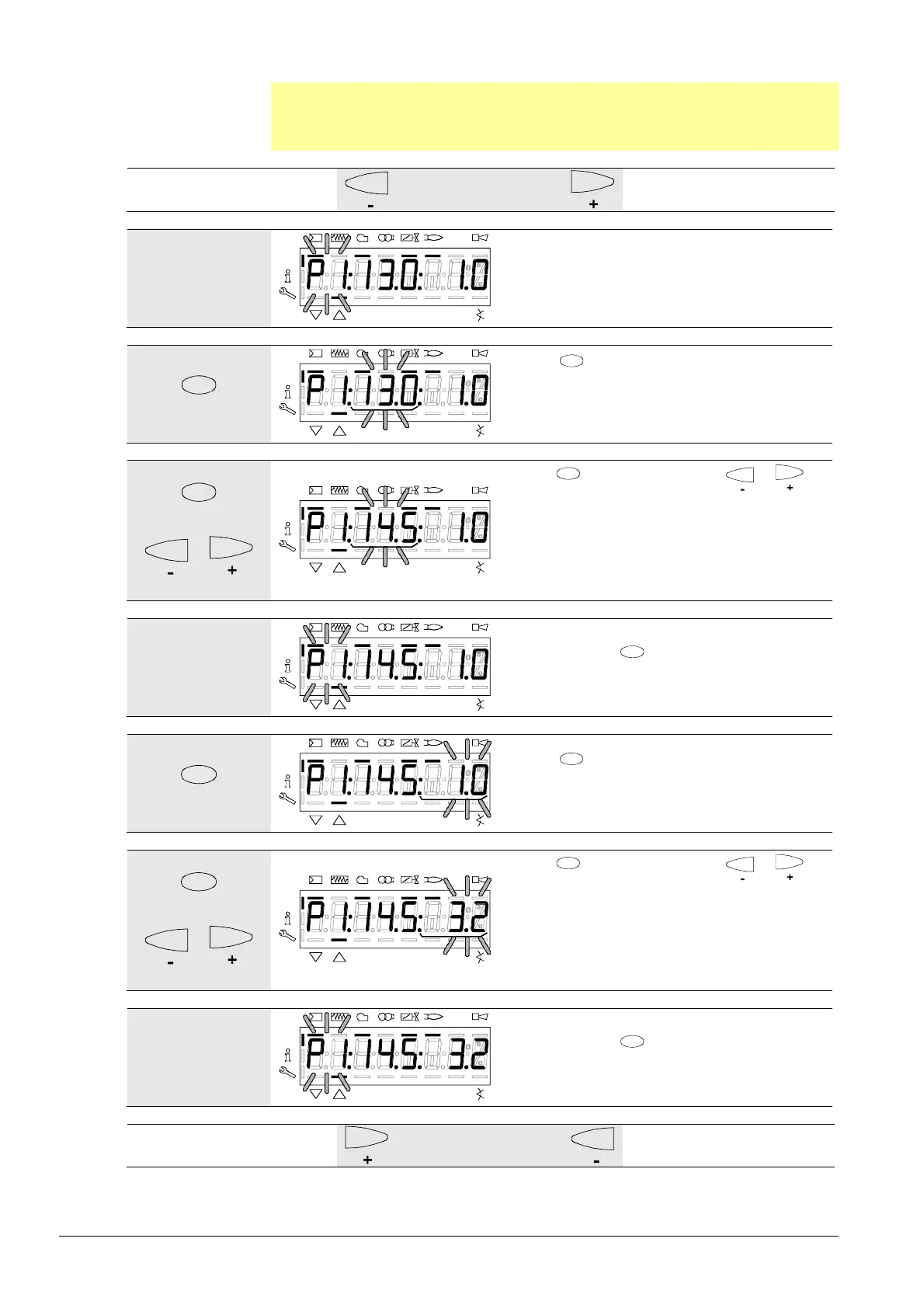

26.11.8 Editing the curvepoints

Note
To check the change on the burner, a curvepoint change in the cold settings
necessitates a new approach of all curvepoints in the warm settings. After changing
the curvepoint, OFF UPr appears on the normal display of the AZL2.
To the next curvepoint
or
To select the curvepoint.
P
Vh
mi n
s%
Bild 129/0707
The selected curvepoint is displayed.
F
P
Vh
mi n
s%
Bild 130/0707
Keep
F
depressed.
The fuel actuator has been selected for
editing.
F
and
or
P
Vh
mi n
s%
Bild 131/0707
Keep
F
depressed and press or to
adjust the fuel actuator.
In the case of warm settings, the actuator
follows directly the adjustments made.
The changes are saved.
P
Vh
mi n
s%
Bild 132/0707
After releasing
F
, the curvepoint is selected
again.
A
P
Vh
mi n
s%
Bild 133/0707
Keep
A
depressed.
The air actuator has been selected for editing.
A
and
or
P
Vh
mi n
s%
Bild 134/0707
Keep
A
depressed and press or to
adjust the air actuator.
In the case of warm settings, the actuator
follows directly the adjustments made.
The changes are saved.
P
Vh
mi n
s%
Bild 135/0707
After releasing
A
, the curvepoint is selected
again.
To the next curvepoint
Back to the previous
curvepoint.
