26.11.10 Setting of curvepoints for multistage mode («Lo 2 stage» and «Lo 3
stage»)

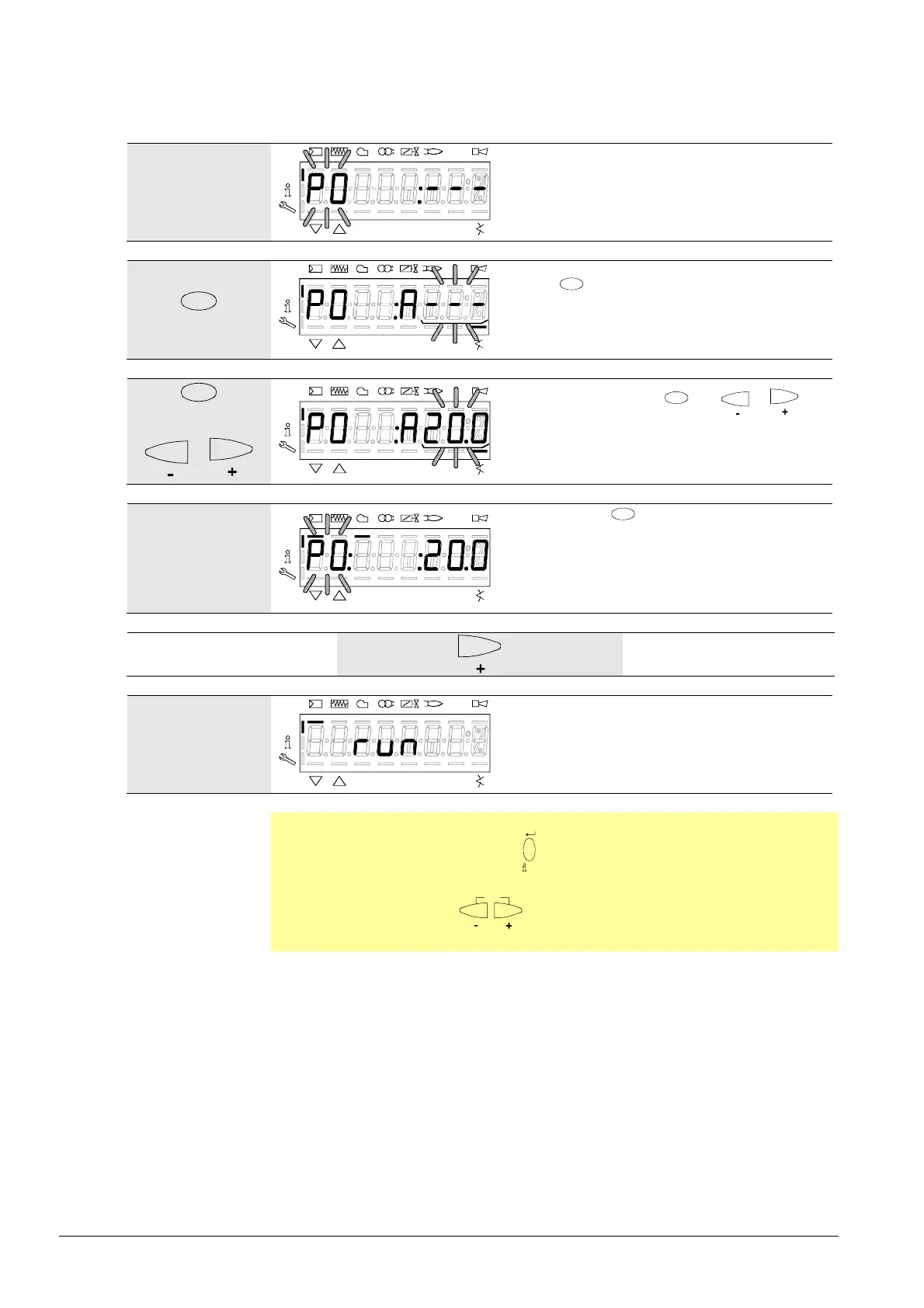

Example of «Lo 2 stage»
P
Vh
mi n
s%
Bild 143/0707
P0 appears flashing.
Curvepoint for ignition load.
A
Bild 144/0707
P
Vh
min
s%
Keep
depressed.
You are now at P0 of air actuator A.
A
and
or
P
Vh
mi n
s%
Bild 145/0707
Press simultaneously
A
and or to
adjust ignition position P0 of the air actuator.
Example: 20.0
P
Vh
mi n
s%
Bild 148/0707
Now, release
.
The selected value will be adopted.
Example: 20.0
P
Vh
mi n
s%
Bild 113/0707
Identification of start for setting the curve
parameters.
Note!
You now have the option of pressing
reset
to proceed with the warm settings (see
section Warm settings for modulating operation «G mod», «Gp1 mod», «Gp2 mod»
and «Lo mod») or pressing
ESC
to proceed with the cold settings (see section
Cold settings for «G mod», «Gp1 mod», «Gp2 mod» and «Lo mod») of the LMV27.
