Sony MVS-6530 User Manual

USO RESTRITO
128
Still Image Operations
Chapter
7
Frame
Memory

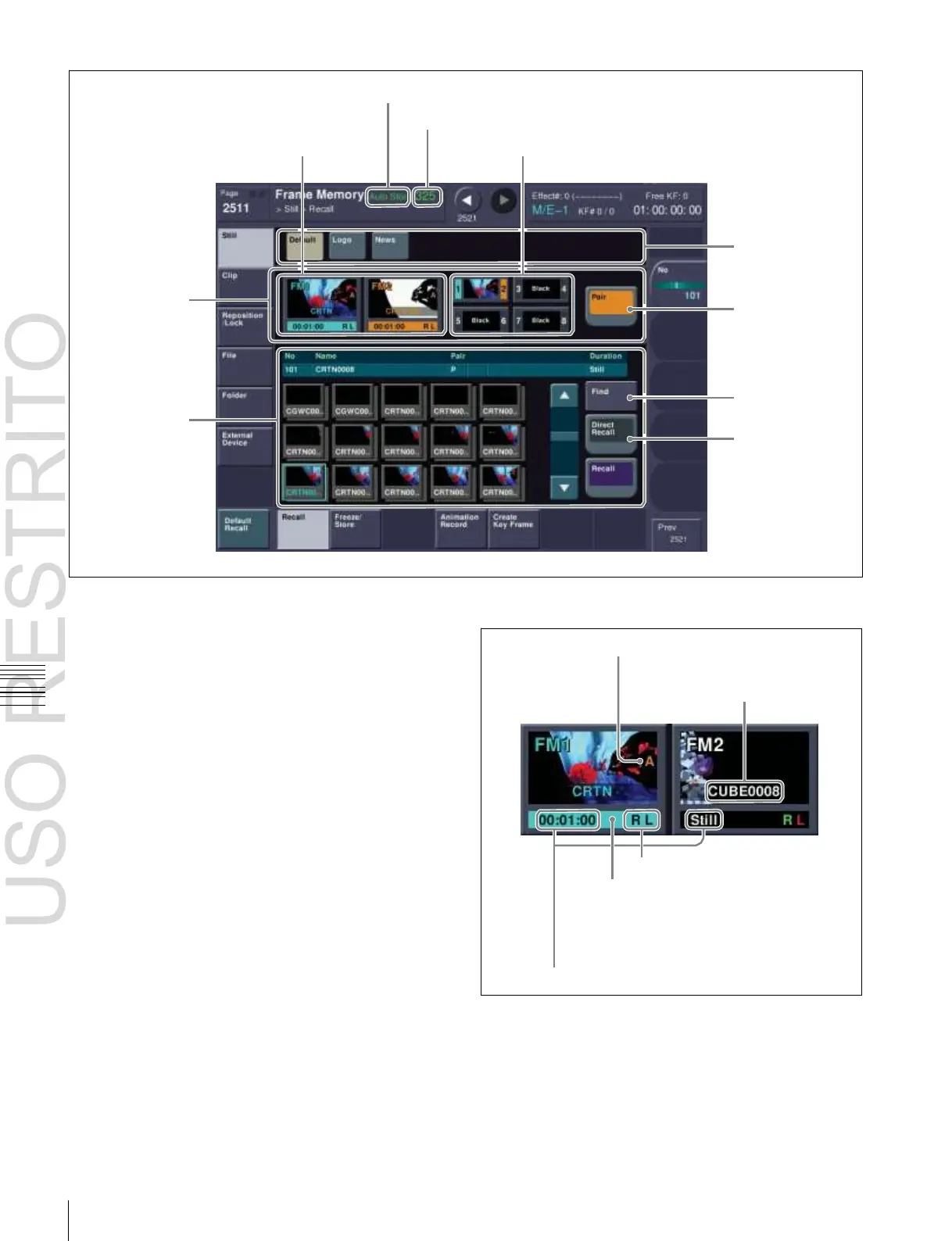

1 Auto store status display
2 Display of available image capacity
3 Target FM selection buttons 4 Pair selection buttons
Frame memory
selection area
7 Frame memory
folder selection
area
5 [Pair] button
6 File selection
area
9 [Find]
button
8 [Direct Recall]
button
a Auto store status display
Depending on the Setup menu settings, this appears when
the auto store function is enabled.
b Display of available image capacity
This shows the remaining number of frames. When no
more frames can be stored, “1” or “0” appears in red in pair
mode, and “0” appears in red in single mode.
c Target FM selection buttons
Display of ancillary data
Status display
Reposition/Lock status display
The border color shows the status as follows:
Blue: Selected as the reference channel
Orange: Selected, but not as the reference channel
Black: Not selected
Still/duration display
Press one of these to select which of the selected outputs
(FM1 and FM2 in the example shown) the operation
applies to.
The following information appears on the button.

Sony MVS-6530 Specifications

General

BNC input ports	48
BNC output ports	32
RJ-45 input ports	4
Product color	Black
AC input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
AC adapter input current	4 A
Storage temperature (T-T)	-20 - 55 °C
Operating temperature (T-T)	5 - 40 °C

Weight and Dimensions

Depth	486 mm
Width	482 mm
Height	176 mm
Weight	21000 g
