Sony MVS-6530 User Manual

USO RESTRITO
178
Applying Special Effects (Edge Effects)
No.
Parameter
Adjustment
3
Hue
Hue
No.
Parameter
Adjustment
1
Luminance
Luminance
2
Saturation
Saturation
3
Hue Offset
Hue range
No.
Parameter
Adjustment
1
Luminance
Luminance
2
Saturation
Saturation
3
Hue Offset
Hue range
No.
Parameter
Adjustment
1
H
Move shadow horizontally
2
V
Move shadow vertically
3
Size All
Enlarge or shrink horizontally and
vertically
4
Soft
a)
Softness of shadow
5
Density
Density of shadow
Chapter
10
DME
Operations
Flex Shadow Settings
Color 2 settings
Notes
Color 2 cannot be set when [Flat Color] is selected in
the <Art Edge Source> group.
Color 3 settings
Notes
Color 3 can be set only when [Rainbow Gradation] is
selected in the <Art Edge Source> group.

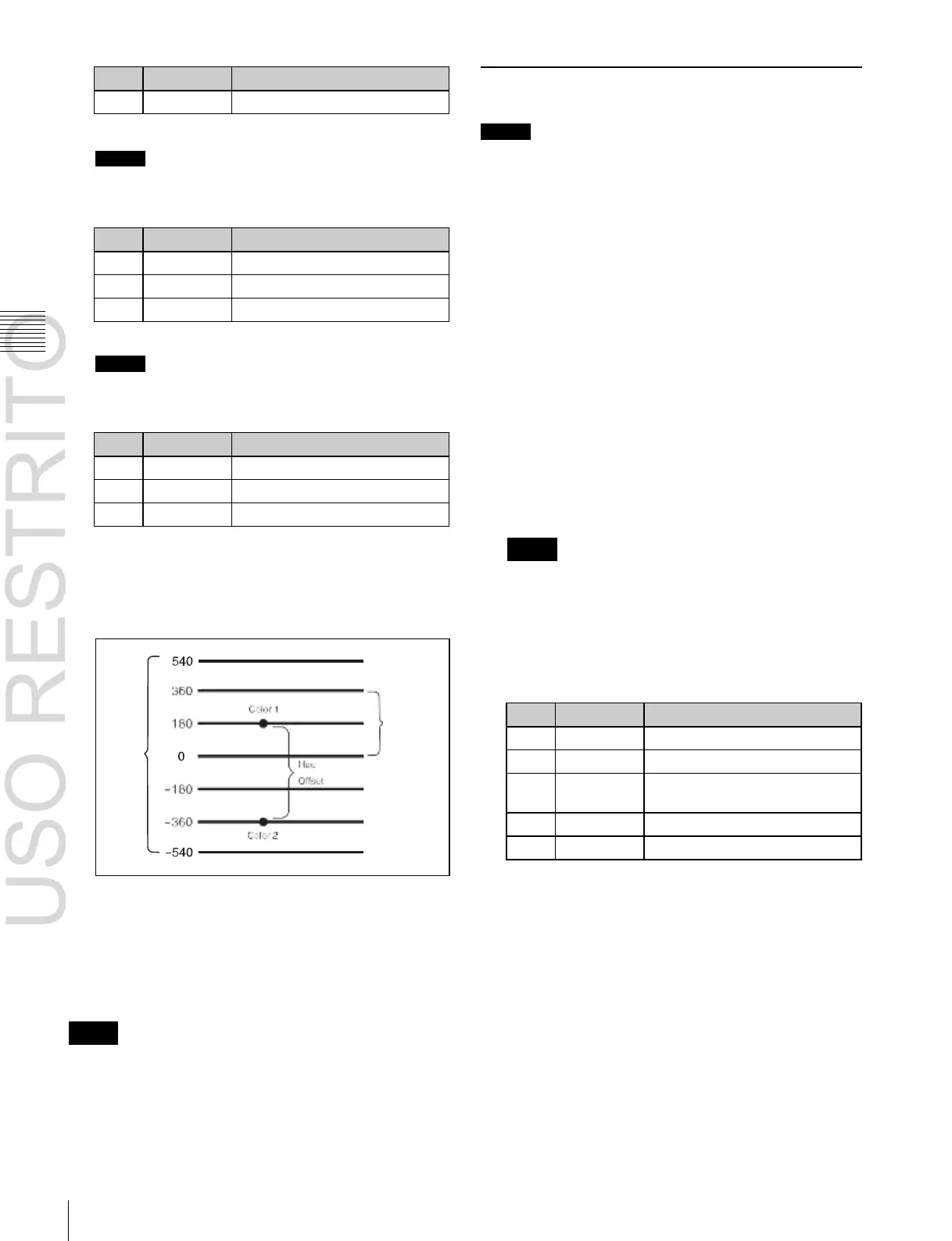

Relation between Hue and Hue Offset
For example, when the Hue value of Color 1 is 180.00,
and the Hue Offset value of Color 2 is –540.00, the
relation is as shown below, with the hue changing
within the Hue Offset range of Color 1 and Color 2.
Notes
• The flex shadow function is not supported by the MKS-
6570 or MVE-8000A.
• [Mix Color] or [Ext Video] can only be applied to one of
the background ( 1 p. 215), flex shadow, trail
( 1 p. 204), and wind ( 1 p. 207) effects. If you select
[Mix Color] or [Ext Video] in one of these effects, a
selection of [Mix Color] or [Ext Video] in any of the
other effects is disabled, and [Flat Color] is selected in its
place.
• When executing combining of four channels, [Mix
Color] and [Ext Video] in the flex shadow and
background effects cannot be selected.
Applying a flex shadow
1 Open the DME >Edge >Flex/Drop Shadow menu
(4115).
2 Press [Flex Shadow], turning it on.
Notes
The flex shadow function cannot be enabled when the
following functions are enabled.
• Any nonlinear effect
• Brick and Shadow global effects
3 Adjust the following parameters.
Hue
Offset
setting
range
Hue
setting
range
Rounding art edge corners
In the Art Edge menu (4114), press [Round Corner],
turning it on.
The art edge corners on the inner and outer sides are
rounded.
Notes
This function is available only when [Soft] is on.
a) The Soft parameter is valid only when [Internal] is selected in the
<Flex Shadow Source> group.
4 In the <Flex Shadow Source> group, select the signal
to use for the flex shadow.
External: Generate the shadow using an input key
signal.
Internal: Generate the shadow using a full-size key
signal.
5 In the <Flex Shadow Fill> group, select the signal to
insert in the flex shadow.
Flat Color: Single color

Sony MVS-6530 Specifications

General

BNC input ports	48
BNC output ports	32
RJ-45 input ports	4
Product color	Black
AC input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
AC adapter input current	4 A
Storage temperature (T-T)	-20 - 55 °C
Operating temperature (T-T)	5 - 40 °C

Weight and Dimensions

Depth	486 mm
Width	482 mm
Height	176 mm
Weight	21000 g
