Applying Special Effects (Overall Signal Effects)
Chapter
10
DME
Operations
To mask the Mono effect with a selected pattern
Press [Mask] to display the Mask menu (4127)
( 1 p. 189), and set the pattern type and modifiers.
Posterization and Solarization
Settings
You can specify the degree of luminance coarsening with
Posterization.
You can specify the degree of chroma coarsening
Solarization.
Applying the Posterization or Solarization
effect
1 Open the DME >Video Modify >Color Modify menu
(4123).
2 Press [Poster/Solar], turning it on.
3 Set the following parameters.
No.
Parameter
Adjustment
1
Poster
Coarseness of luminance
gradations (Posterization
parameter)
2
Solar
Coarseness of chroma
gradations (Solarization
parameter)
To mask the Posterization or Solarization effect
with a selected pattern
Press [Mask] to display the Mask menu (4127)
( 1 p. 189), and set the pattern type and modifiers.
Nega Settings
Applying the Nega effect
1 Open the DME >Video Modify >Color Modify menu
(4123).
2 Press [Nega Y], [Nega C], or both, turning them on.
Nega Y: Reverse the luminance.
Nega C: Reverse the chroma.
To mask the Nega effect with a selected pattern
Press [Mask] to display the Mask menu (4127)
( 1 p. 189), and set the pattern type and modifiers.
Contrast Settings
Applying the Contrast effect
1 Open the DME >Video Modify >Color Modify menu
(4123).
2 Press [Contrast], turning it on.
3 Set the following parameters.
No.
Parameter
Adjustment
1
Y Clip
Luminance clip level
2
Y Gain
Luminance contrast gradient
3
Y Offset
Luminance offset level increment
4
C Gain
Chroma contrast gradient

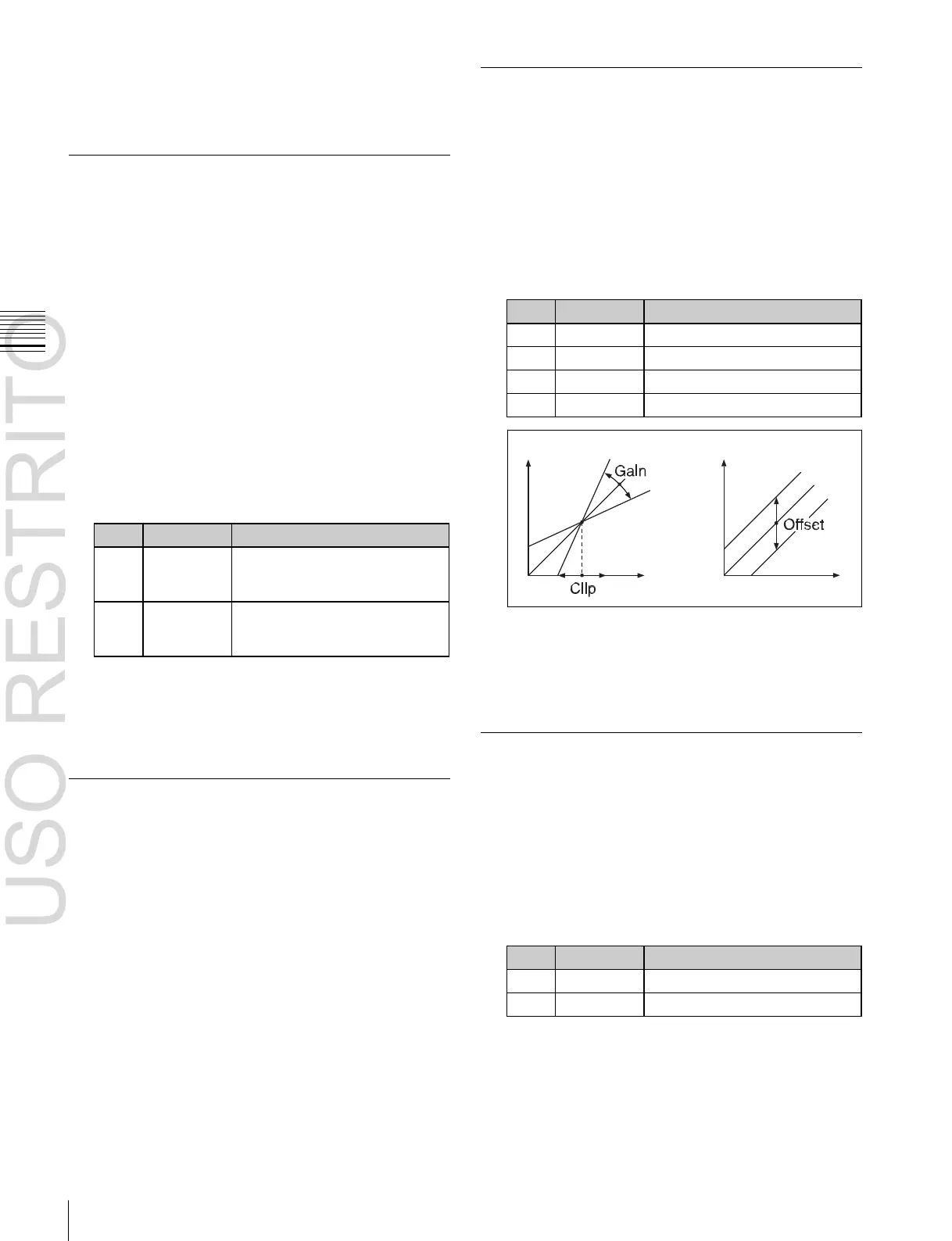

Video output level
Video output level
Video input level Video input level
To mask the Contrast effect with a selected
pattern
Press [Mask] to display the Mask menu (4127)
( 1 p. 189), and set the pattern type and modifiers.
Mosaic Settings
Applying the Mosaic effect
1 Open the DME >Video Modify >Mosaic menu (4124).
2 Press [Mosaic], turning it on.
3 Set the following parameters.
No.
Parameter
Adjustment
1
Size
Size of tiles
2
Aspect
Aspect ratio of tiles
To mask the Mosaic effect with a selected pattern
Press [Mask] to display the Mask menu (4127)
( 1 p. 189), and set the pattern type and modifiers.

Sony MVS-6530 Specifications

General

BNC input ports	48
BNC output ports	32
RJ-45 input ports	4
Product color	Black
AC input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
AC adapter input current	4 A
Storage temperature (T-T)	-20 - 55 °C
Operating temperature (T-T)	5 - 40 °C

Weight and Dimensions

Depth	486 mm
Width	482 mm
Height	176 mm
Weight	21000 g
